Homework 14

Assignment: 1 problem, 100 points

• 5:00 pm on Thursday, December 8, 2005 (all sections)

Reading: Your CS5 lecture notes and the online readings for week 14.

Problem 1     Movie Database     (100 points)     [topics: classes, recursive data structures]

In this problem you will implement a film information system inspired by the Internet Movie Database http://www.imdb.com. Your program will allow a user to create a database interactively---by entering films one by one at the keyboard---or in "batch" mode---by reading a bunch of films in from a file. It will also allow the user to retrieve information along different dimensions. For instance, list all the films in the database from the year 2000. Or, list all of the films in the database with "Rings" in the title.

A film's definition has multiple aspects: title, director, year, etc. To handle this aggregate information, you'll implement a Film class as specified below. Similarly, you'll create a Director class to handle various data stored for a given director. You'll implement a FilmDB class to manage the collection of films you've added to your database. Similarly, you'll implement a DirectorDB class to manage the collection of directors that have been (implicitly) added to your database (each time a film is entered with a new director, the director database incorporates a new Director object).

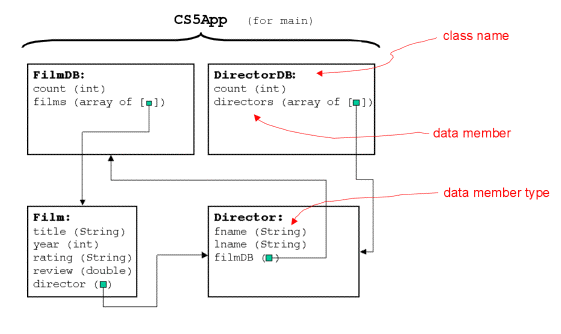

One interesting, fun challenge in this problem is the intertwined nature of the classes you'll be defining. For instance, in addition to a director's first and last name, a Director object contains a film database, FilmDB, whose sole purpose is to make it easier to identify films on a per-director basis. This feature leads to circular data in that FilmDB contains Film objects, each which contains a Director object, which in turn contains a FilmDB. These classes and their relationships to one another are displayed in the following figure:

In general, you'd like your database to be able to adapt in size as more information is added (this is more efficient because you only allocate more resources when they are needed). However, to simplify the problem, you're allowed to assume each database you create has a fixed (suitably large, e.g. 100) size capacity. What this means is that, underneath the hood, your FilmDB and DirectorDB classes can simply create appropriate arrays of this length in their constructors. Should you then wish add more objects than this capacity supports, your program will inform the user they can't do this. In this scenario, it is important to keep some extra state around---for an array can tell you how long it is, but it doesn't know how many of its objects are currently used. For this reason, your database classes will also maintain a count field. Moreover, before any array element is assigned to a specific object instance, it will contain Java's all-purpose null value.

Extra Credit: If you wish to do extra credit on this problem, you could create your database arrays in such a way that they resize themselves as needed (they could thus start out with a size of 1 as opposed to 100!). Although this is a bit more involved because of the intertwined nature of the databases, it is definitely doable! If you'd like to try and implement this feature, only do so after you've already gotten the required version working robustly. Then you could extend that code (keep a copy of your original in case you don't get this working). It turns out a very efficient way to grow an array is to always double its size (and then copy the old items into the larger array). If you take this approach, you might consider adding a resize method to each of your database classes. Another viable option would be to use existing Java libraries (e.g. a grow-able array).

Submission: Place each of these classes in the CS5App.java file and submit the CS5App.java file under Homework 14, Problem 1. If you do the extra credit, submit that as Homework 14, Problem 2.

What's next: The rest of this document details the functionality of the classes you should build, followed by some documentation regarding some string methods you'll find useful and a sample run.

The Film Class

• private String title
• private int year
• private String rating
• private double review
• private Director dir

• The public Film(String title, int year, String rating, double review, Director dir) constructor initializes a new Film object by setting its data members equal to the constructor's inputs.

• public String getTitle() returns the film's title.
• public Director getDirector() returns the film's Director object.
• public int getYear() returns the film's year.
• public String getRating() returns the film's MPAA rating.
• public double getReview() returns a number between 1 and 10 that quantifies your assessment of the film (higher is better).
• public void display() should simply print the film's data as follows:

         Title: Unforgiven
         Director: Eastwood, Clint
         Year: 1992
         Rating: R
         Review: 8.0


  Aside: printing the director's name requires calling the Director object's getFullName().
• public void save() writes data out to a file in a pre-specified format. (This pre-specified format allows the file to be understandable to your program, so that it can read in the contents and use it to initialize its database). In this, members should be printed out in the same order as display, except that the human-readable descriptors (e.g. "Title:", "Director:", etc.) are omitted. Additionally, the director's last name and first name should appear on separate lines. For example, the above film would appear as:


         Unforgiven
         Eastwood
         Clint
         1992
         R
         8.0


• Films should only be constructed with valid MPAA ratings. Valid MPAA ratings include any string that matches (in a case-insensitive manner) any of the following String values: G, PG, PG-13, R, NC-17, and UR. To ensure a Film is only constructed with valid input, you might wish to add a method with the following signature: public static String getValidRating(). Other classes could then invoke this static function by applying the dot operator to the class's name (as opposed to applying it to a specific object in the class), e.g. Film.getValidRating().
• Films should only be constructed with valid user reviews. Valid user reviews include any double between 0.0 and 10.0 inclusive. Again, feel free to create a public static double getValidReview() method for this purpose.
• Some people have complained that the meanings implied by rating and review are misleading. Feel free to name these variables (and their related methods) something else (e.g. rating and score) if this will make your programming task easier.

The Director Class

• private String fname
• private String lname
• private FilmDB filmDB

• As shown in class, the public Director(String fname, String lname, int capacity) constructor initializes a new Director object by setting its data members appropriately given the constructor's inputs.

• public String getFullName() returns the concatenation of the last name, a comma, a space, and the first name. That is, if fname = "Clint" and lname = "Eastwood" then this method should return a String that contains the value "Eastwood, Clint". This concatenated String is useful both for printing out the directors name and when putting directors in alphabetical order.
• public String getFName() returns the director's first name.
• public String getLName() returns the director's last name.
• public FilmDB getFilmDB() returns the director's film database (this will useful when adding new films).

The FilmDB Class

Required data members:

• private Film[] films
• private int count

• public FilmDB(int capacity) initializes FilmDB object by creating Films array to hold capacity elements in total. Initially, no films are in the database, so count should be zero (and each Film element should be null).

• public boolean isFull() returns true when all element in films are not null Film entries.
• public boolean checkForFilm(String fulltitle) returns true when a film with title fulltitle is found in the array. When considering if a film is "found", use case insensitive criteria. For example, if a film with the title unFORGivEn resides in the database and fulltitle contains Unforgiven, this function should return true. This method will be useful for enforcing that all film titles in the database are unique, i.e. the user can not add two different films with the same (case-insensitive) title.
• public int getCapacity() returns the size of the Film array.
• public int getCount() returns the number of non-null film entries currently in the array.
• public void addFilm(Film f) should add film f to the database. Recommendations:
  • Write this function so that films always maintains the following invariant: entries are arranged in the array in alphabetical order according to title. This invariant will serve you well because it simplifies adding films (each time a new film is entered, merely insert it into the proper location) and displaying films (when printing out films, or subsets of films, results are automatically arrange alphabetically via title).
  • If you only call this function with a Film f whose title does not yet appear in the database (i.e. does not match other film in a case insensitive way), another invariant comes along for free: all films in the array (ignoring case) are unique.
• public void displayAllFilms() should print all the films in the database in alphabetical order. Recommendations:
  • There is great opportunity for code reuse: use the display method in Film to do most of your work! This advice is so generally relevant that to get full credit on this assignment, you should reuse code whenever possible.
  • If no films are present, it can be disconcerting to the user to display nothing (they're left to wonder if their request was even seen). Thus, in this case, inform them that there was nothing to display because the database has no films in it.
• public void saveAllFilms() is similar to the displayAllFilms except that if no films exist, that result is be suppressed (you don't want to write that to the file). Also, instead of display, here you'll use a Film's save method.
• The following methods should loop through the database (the array films) and print those films that match the additional criteria supplied to them in alphabetical order via title. Again, when no films that match the criteria are found, the user should be informed that this is why no films could be displayed.
• public void displayFilmsByTitle(String titlepiece) matches any film whose title (ignoring case) contains substring titlepiece in it.
• public void displayFilmsByRating(String rating) matches any films with the specified MPAA rating (ignoring case).
• public void displayFilmsByYear(int year) matches any films with the specified year.
• public void displayFilmsByReview(double minreview) matches any films with a review at least as high as minreview.

The DirectorDB Class

• private Director[] dirs
• private int count

• public DirectorDB(int capacity) is similar to the FilmDB constructor

• public boolean isFull()
• public int getCount()
• public int getCapacity()
• public void displayAllDirectors()

• public Director findDirectorByName(String lname, String fname) is like checkForFilm except that it identifies a director using two pieces of information (last and first name). As with checkForFilm this search should not be case-sensitive. Unlike checkForFilm, however, this function returns the Director object that was found (or null if the director isn't found). This return value makes it easy to add a new film into an existing director's database.
• public void addDirector(Director dir) should add director dir to the database by inserting it into the dirs array in alphabetical order (sort first on last name; use first name to break ties). Similar recommendations to those described in addFilms apply here.
• public void displayFilmsByDirector(String lname, String fname) displays all the films by a given director. The match for a film's director should be case insensitive and employ both last and first name (in writing this function there's a lot more opportunity for code reuse!). If no film by this director is found, the user should be informed that this is why no films could be displayed.

The CS5App Class

• private static FilmDB myFilms
• private static DirectorDB myDirectors

• public static void printMenu() should first print a status line indicating the database's capacity and how many movies are currently entered. It should then display the following list of options.

     0 Display All Directors
     1 Display All Films
     2 Display Films by Title
     3 Display Films by Director
     4 Display Films by Year
     5 Display Films by Rating
     6 Display Films by Review
     7 Add a New Film
     8 Save database to file
     9 Load database from file
    42 Quit


• public static void saveDB(String fileName) is provided in the Hw14Pr1 download. Provide you properly implement the FilmDB class's saveAllFilms method, this function will just work! (That two classes can so effortlessly integrate to produce working code is one reason why object-oriented programming is popular.) With this function in place, you can first enter multiple films by hand (using option 7) and then save them to a file for later use (via option 8).


• public static void readDB(String fileName) is also provided for you, and again, provided you properly implement readFilmEntry, this function will also just work! This function provides an easy way to "bootstrap" your database (via option 9)---replacing the current contents of myFilms (which is initially empty when the program starts up) with the database stored in file fileName (typically, created in a prior run of your software, via option 8).


• public static void readFilmEntry(), which is called by readDB, should read in the next film entry and add that film into the database. Because the order in which a film's entries are read in from the keyboard (option 7) is identical to the order in which they are saved (via Film's save method), this function can be used to service both options 7 and 9. (Notice how good design can lead to code reuse!). With keyboard input, users can make mistakes, and so this code should insist that a valid MPAA rating is given before proceeding (refer to the recommendations in the Film class); a similar requirement applies to getting review input from the user. Aside: as long as input comes from a file that has been written via other correctly implemented methods discussed here, what is read in should always contain valid values.

  Here is a more complete (ordered) list of what readFilmEntry should do:
  1. The code must ensure there is room to add the film to FilmDB. If not, an error is printed and the method should return.
  2. When there is room, the user is prompted for the title of the new film. Should the title of the film not be unique (it already exists in the database), another message is printed and the method should return. Refer to the recommendations in checkForFilm for more detail on uniqueness.
  3. When the film is not currently in the database, the user is prompted for the director's last and first name (in that order). If the director has not yet been added (refer to findDirectorByName for determining when a director is already present), create a new Director instance for this person, add the instance to the DirectorDB, and remember what it is so you can use it again later (when creating the new film). If the director has already been added, you'll also want to remember the Director object (for the same reason).
  4. Upon successfully finding (or creating) a Director object, prompt the user for the film's year.
  5. Also prompt the user for a valid MPAA rating (G, PG, PG-13, R, NC-17, UR) and review (a number between 0-10). Neither of these steps should proceed until the user has entered valid values for them.
  6. Using this information, create a new Film object and add it to the film database.
  7. Finally, you need to add the film to the director's personal film database (the Director object obtained earlier, along with getFilmDB will be helpful here).


• public static void main(String[] args) drives the rest of the program, via an interface like the ones you've built in previous assignments. At the top of main, initialize your database to contain 100 Films and Directors. Then, repeatedly present the user with the above menu of options, accept their request, and process it (use option 42 to quit the loop).

  Since options 0 through 6 deal with searching the database, call the appropriate methods to deal with these cases. Options 2 through 6 are more specialized searches, requiring you to prompt the user (in main) for their requisite match criteria before you can call the appropriate display methods. The various display functions provide details regarding each search's match criteria. For options 5 and 6, before calling their respective display functions, ensure that the user has entered valid values upon which to match.

  Whereas option 7 allows a user to enter films into the database incrementally (modifying myFilms as you goes), option 8 provides the ability to read in many files at once from a file (erasing any prior data that might have been entered first). Provided there is still room in the data base, after such a file is loaded, you can continue adding to the database (via option 7), and the larger database can be subsequently saved.

Helpful String Methods

Java provides String methods that will be useful to you in this assignment:

• toLowerCase will allow you to perform case-insensitive matches.
• compareTo will allow you to perform alphabetic sorting.
• indexOf will allow you to determine if one string is a substring of another.

• s.indexOf(t) returns the index at which t is found within s or -1 if t occurs no where in s. Thus:


       if (s.indexOf(t) >= 0) {
           H.pl("t occurs as a substring in s");
       } else {
           H.pl("t does not occur as a substring in s");
       }


  prints out the latter message because the "U" in t is capitalized.
• s.toLowerCase() returns a string identical to s, but all letters in it are lower case. Thus:


       if (s.toLowerCase().indexOf(t.toLowerCase())) {
             H.pl("if we ingore case, t occurs as a substring in s");
       } else {
             H.pl("if we ingore case, t does not occur as a substring in s");
       }


  prints out the former message (because now the "U" in t has been transformed in to a new string that contains the corresponding "u" instead).
• s.compareTo(t) returns 0 if s and t contain identical String values, returns a number less than 0 if s is before t alphabetically, and a number greater than zero otherwise (i.e. when s is after t alphabetically). Thus:


       if (s.compareTo(t) < 0)
         H.pl("s is before t alphabetically");
       else if (s.compareTo(t) > 0)
         H.pl("s is after t alphabetically");
       else
         H.pl("s and t are identical strings");



  Since "Urge" is alphabetically larger than "hamburger", the first message will print out.
• s.compareToIgnoreCase(t) behaves like compareTo except that case is also ignored.

A Sample Run

Here is a sample run that displays how your code should function. This section only contains a small subset of the possible things we might try when testing your code. Be sure to test your code carefully before submitting it!

If you'd like to use the files I've used for testing (twofilms.txt and init.txt) these can be downloaded from http://www.cs.hmc.edu/~bthom. Another more extensive database file, which can be used for more exhaustive testing, as also available there (hardcore.txt).

Welcome to CS5's movie database!

There are 0 films in our database (max: 100)

Please choose an option from the following list:
   0 Display all directors
   1 Display all films
   2 Display all films by Title
   3 Display films by Director
   4 Display films by Year
   5 Display films by Rating (G, PG, ...)
   6 Display films by Review (0-10)
   7 Add a new film
   8 Save database to file
   9 Read database from file
  42 Quit
Which option would you like? 9

Enter a file name: twofilms
Loading database contents from file ../twofilms.txt
100
2
Enter the title:                  Lord of the Rings: Return of
Enter the director's last name:   Jackson
Enter the director's first name:  Peter
Enter the movie's year:           2003
Enter the movie's MPAA rating:    PG-13
Enter a review score:             9.0

Enter the title:                  Gigli
Enter the director's last name:   Brest
Enter the director's first name:  Martin
Enter the movie's year:           2003
Enter the movie's MPAA rating:    R
Enter a review score:             2.2

There are 2 films in our database (max: 100)
< menu snipped to save trees >
Which option would you like? 0

Director #0 is Brest, Martin
Director #1 is Jackson, Peter

There are 2 films in our database (max: 100)
< menu snipped to save trees >
Which would you like? 7

Enter the title:                  King Kong
Enter the director's last name:   jackson
Enter the director's first name:  peter
Enter the movie's year:           2005
Enter the movie's MPAA rating:    x
That is not a valid rating. Enter another: PG-13
Enter a review score:             6.0

There are 3 films in our database (max: 100)
< menu snipped to save trees >
Which option would you like? 1

Title:    Gigli
Director: Brest, Martin
Year:     2003
Rating:   R
Review:   2.2

Title:    King Kong
Director: Jackson, Peter
Year:     2005
Rating:   PG-13
Review:   6.0

Title:    Lord of the Rings: Return of the King
Director: Jackson, Peter
Year:     2003
Rating:   PG-13
Review:   9.0

There are 3 films in our database (max: 100)
< menu snipped to save trees >
Which option would you like? 2

Enter a titlepiece: king

Title:    King Kong
Director: Jackson, Peter
Year:     2005
Rating:   PG-13
Review:   6.0

Title:    Lord of the Rings: Return of the King
Director: Jackson, Peter
Year:     2003
Rating:   PG-13
Review:   9.0

There are 3 films in our database (max: 100)
< menu snipped to save trees >
Which option would you like? 3

Enter last name:  Peter
Enter first name: Jackson

No films by director "Peter,Jackson"

There are 3 films in our database (max: 100)
< menu snipped to save trees >
Which option would you like? 3

Enter last name:  bREst
Enter first name: MaRtIn

Title:    Gigli
Director: Brest, Martin
Year:     2003
Rating:   R
Review:   2.2

There are 3 films in our database (max: 100)
< menu snipped to save trees >
Which option would you like? 8

Enter a file name: threefilms
Saving the database's contents to the file ../threefilms.txt

There are 3 films in our database (max: 100)
< menu snipped to save trees >
Which option would you like? 5

Enter MPAA rating:  santa
That is not a valid rating. Enter another: r

Title:    Gigli
Director: Brest, Martin
Year:     2003
Rating:   R
Review:   2.2

There are 3 films in our database (max: 100)
< menu snipped to save trees >
Which option would you like? 9

Enter a file name: init

Loading database contents from file ../init.txt

There are 0 films in our database (max: 100)
< menu snipped to save trees >
Which option would you like? 1

No films in database to display

There are 0 films in our database (max: 100)
< menu snipped to save trees >
Which option would you like? 9

Enter a file name: threefilms

Loading database contents from file ../threefilms.txt

Enter title:                      Gigli
Enter director's last name:       Brest
Enter the director's first name:  Martin
Enter the movie's year:           2003
Enter the movie's MPAA rating:    R
Enter a review score:             2.2
Enter title:                      King Kong
Enter director's last name:       Jackson
Enter the director's first name:  Peter
Enter the movie's year:           2005
Enter the movie's MPAA rating:    PG-13
Enter a review score:             6.0
Enter title:                      Lord of the Rings: Return of the King
Enter director's last name:       Jackson
Enter the director's first name:  Peter
Enter the movie's year:           2003
Enter the movie's MPAA rating:    PG-13
Enter a review score:             9.0

There are 3 films in our database (max: 100)
< menu snipped to save trees >
Which option would you like? 6

Enter a review: 8

Title:    Lord of the Rings: Return of the King
Director: Jackson, Peter
Year:     2003
Rating:   PG-13
Review:   9.0

There are 3 films in our database (max: 100)
< menu snipped to save trees >
Which option would you like? 42

Until next time, your movie is up!
