Assignment 6

Harvey Mudd College
Computer Science 60
Assignment 6, Due Thursday, October 14, by midnight

Maze Maker

Assignment 6 embeds your breadth-first search code from Assignment 5 into an applet for searching a maze. This will give you the chance to use Java's graphics library and event-handling code.

Example Applet

You can run example maze maker applets by Prof. Keller or Prof. Dodds.

Files and Classes to Create

You will need to create a file Maze.java that contains at least two classes: a Maze class that contains the graphics code for the maze-making applet and breadth-first search code for solving it and a Queue class which provides the services of a queue for the breadth-first search. You can use your Queue class from the previous assignment for this (also, a working Queue class will be placed in the file /cs/cs60/assignment5/hw5.java.sols once that assignment is complete.

You will also need an html file which contains an < APPLET ... > tag. An example html file and information about where to place it are given below.

What does the code have to do?

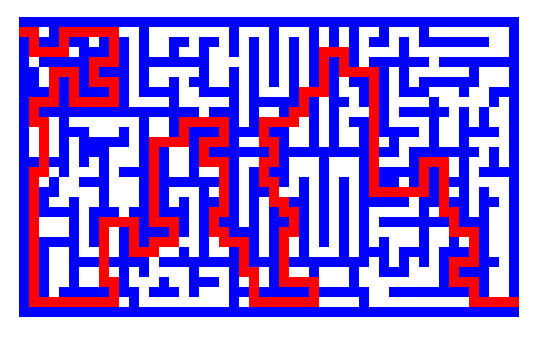

The Maze Maker applet (the code's class name is Maze) is a tool for constructing mazes. The user drags the mouse within the rectangular field to create internal walls, as shown in blue above. The object of the maze player is to find a path constructed by the user. Maze Maker is required to display a minimal-length path through the maze, as shown in red in the picture above.

The rules for maze creation are as follows:

The drawing field is a grid made of squares of 10 pixels on a side, 30 by 50 squares total, including outer walls.
When the user depresses the mouse button, if the cursor is over a blank square (or a previously-drawn path square), draw mode is indicated. If the cursor is over a wall square when the mouse is depressed, erase mode is indicated.
In draw mode, a background square over which the mouse button was depressed, and any squares over which the mouse is dragged, are changed into wall squares if they are not wall squares already.
In erase mode, the wall square over which the mouse is depressed, and any squares over which the mouse is dragged, are erased.
The start and finish squares of the maze are fixed to the upper left and lower right areas of the maze, as shown in the drawing. These squares and the outer wall squares are never modified by the user.
Add a Clear button which removes everything which has been drawn.
On the sample, you will notice a logo when the applet first opens; this is not required.

The rules for path creation are as follows:

A minimum-length path, if any exists, is drawn in red when the mouse button is released.
While the user is drawing, the previous path remains on the screen, except as overwritten by drawing.
The path must be minimal-length, in the sense that there is no shorter path from start to finish.
A path moves only vertically or horizontally from square to square, not diagonally.
If there is no path possible, then no red squares are drawn.

The code for the simple applet in Square.java will help in setting up a Maze.java file for the maze maker applet. Square.java demonstrates the use of mouse down, mouse drag, and mouse up events, as well as how to draw to the screen. (Click here to run the applet.) Use the method of an off-screen buffer, as discussed in class and shown in the Square.java example, so that your applet does not flicker. This is mandatory.

I want more!

If you haven't had enough of your Maze.java file at the end of this assignment, there are a couple of specific items and an open-ended invitation to improve on the applet for (10 pts.) optional bonus credit (for one):

Filling in gaps: If you click and then drag the mouse quickly over the applet, gaps will appear among the maze-wall blocks which get created or eliminated. (If you're using the appletviewer (below) you will see this even moving the mouse at glacial speeds.) One way to remedy this (other than buy new hardware) is to draw a line of maze-wall blocks from each mouse drag event to the previous one. That way no gaps appear, regardless of the update speed of the event handler.
A better Queue class: Instead of using the linked-list queue from Assignment 5, implement a Queue class which is a derived class of Vector. (Vector is a built-in java class which already has Stack as a derived class.) Use the vector as a circular queue as described in section 7.10 of the class text.
Add any feature you think would enhance the maze maker applet and that requires a nontrivial addition to the code. Be sure to document your feature and point it out in the code.

Testing your applet

Applets require an html file. The text for the web page containing the example applet is Square.html. The text for the web page containing the example maze maker applet is mazeMaker.html. You should create a page named mazeMaker.html and are welcome to copy from that link.

You can test your code in two ways:

With the appletviewer: if you are working in the terminal room or have an X connection to a remote machine, you can test your applet with the command
```
appletviewer mazeMaker.html
```
from any directory which contains both the compiled java code (Maze.class) and the mazeMaker.html file.
Caution! For me, Turing's appletviewer takes a long time to appear and run (> 1 minute) unless the line
```
setenv JAVA_FONTS "/usr/local/java/jre/lib/fonts"
```
is added to the .cshrc file (which is then "sourced") before running. This line speeds the search for fonts, but error messages still appear that some fonts are not found.

Appletviewer seems to process mouse events very slowly in any case.
With a web browser: you can create a directory named public_html in your home directory with the command
```
mkdir public_html
```
Documents you place in that directory will be publicly available on the web. For example, you can place this index.html file into your public_html directory and then access it from the URL http://www.cs.hmc.edu/~username, where username is your username. If you then place your mazeMaker.html file and compiled java code Maze.class in that same directory, you can use the link from your index page to test your applet.

Thank you! Netscape will reload newly-compiled applet code if you hold down the "Shift" key while pressing the reload button.

For me this approach provided a much more responsive application.

What's the compiler saying about "deprecation"?

When you compile your Maze.java file with the 1.2.2 version of the java compiler, it will print a message similar to

> javac Maze.java

Note: Maze.java uses or overrides a deprecated API.
Recompile with "-deprecation" for details.
1 warning

This is because some of the method calls used are no longer the preferred way of handling events and graphics in java. If you compile with the "-deprecation" flag, the compiler will tell you what calls are now deprecated. You can leave out that flag to avoid seeing the warnings.

This assignment is using older calls to certain event-handling and graphics methods in order to create applets which will work with the default capabilities of a wide variety of browsers.

Submission

You should submit your Maze.java source file in the usual way, i.e., by running

% cs60submit Maze.java

You will be asked to input the assignment number (6).

You should not submit your mazeMaker.html file.

Harvey Mudd College Computer Science 60 Assignment 6, Due Thursday, October 14, by midnight
