CS157 Computer Animation

Inverse Kinematics Lab 1




This is the first of two labs on inverse kinematics. By the end of these labs you'll build a simple inverse kinematics engine. You should work in pairs to complete these labs.

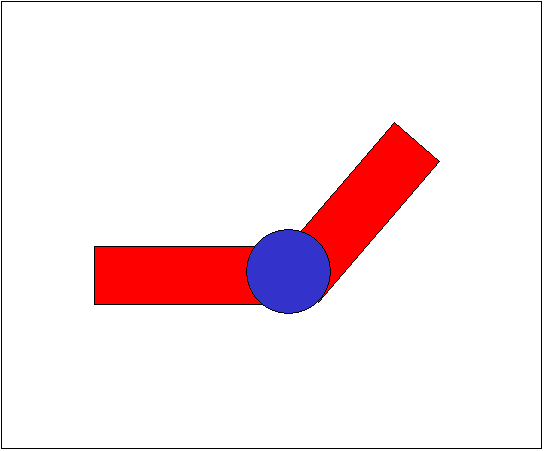

  1. Consider the simple two-link structure shown below.

    1. Annotate the figure above using DH notation using variable names for link lengths (li) and angle (θi). Clearly identify how these lengths and angles are measured in the figure. (All joints rotate about <0,0,1>.)



    2. Assume the end effector is at the right end of the second link. Write the Jacobian for the position of the end effector. Annotate the figure with any additional variables you use in the Jacobian and with the global reference frame.

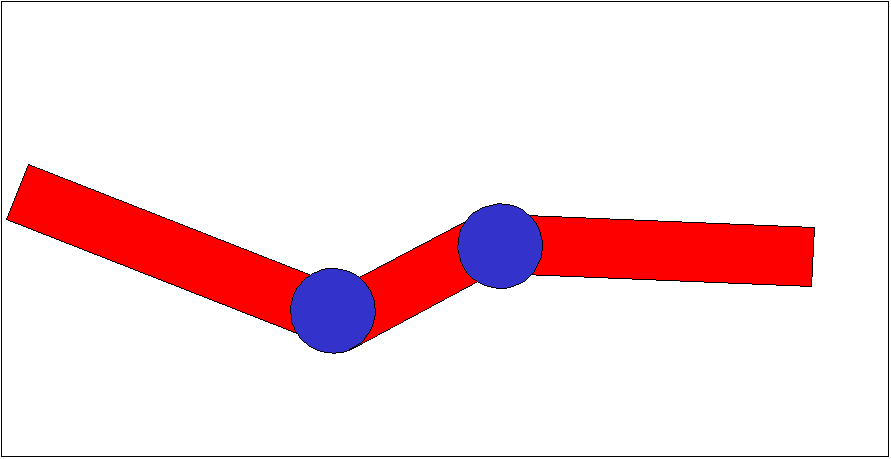

  2. Repeat the previous exercise for the three-link structure shown below.









  3. Write a little program that computes the Jacobian (position only) based on global variables int n, double l[n], and double theta[n] that specify a link structure. You may find the Tuple class located here to be helpful.


    Try the program for n=2, l[0]=1, l[1]=1, theta[0]=0, theta[1]=π/4. Write the Jacobian below.








  4. In general we want to solve dE=J(θ)dθ given the change in the end effector dE and the Jacobian. If the Jacobian is square and has full rank we can simply invert it. But that is usually not the case. Rather we need to compute the pseudo inverse, which is denoted J+. Create a new directory and download the files here. Compile, link, and run the program.


    This program reads input matrices from "matrx3.dat" and computes their Singular Value Decomposition. The SVD of an mXn matrix M consists of matrices U, W, and V where

    If W is invertible then the pseudo-inverse of M=UWVt is M+=VW-1Ut. Suppose W is 2x2 with diagonal elements a and b. Write W-1 below.





    When is W not invertible?





    In general M+=VW'Ut, where W' is the nXn diagonal matrix with w'kk=1/wkk provided wkk ≠ 0 and otherwise w'kk=0.





    Augment the SVD demo program to compute and print M+.





    Write the pseudo inverse of each of the sample input matrices below.
