Assignment 6: Spampede!
Due Monday October 24 by 11:59 PM

Please read the following carefully. There is a lot here!

First, note that this assignment is due the Monday after fall break. The assignment is also worth 125 points rather than the usual 100.

Pair programming is permitted on all three parts of this week's assignment.

You will be submitting several files for this assignment. Please zip all of your files into a single zip file named hw6files.zip and then submit that zip file for your assignment. That way, we know we'll be able to run your applet!

This assignment has three parts, which ultimately build to the Spampede game! In Part 1, you will extend the capabilities of your maze solver from HW6 (though you may use our solution code for that assignment if you prefer). In Part 2, you will use the results of Part 1 to build some of the primary functionality of the Spampede game. In Part 3, you will use Part 2 in a graphical applet - if you'd like to make it accessible from your CS webspace, all the better.

What is the final product?

You might want to try out the basic applet (with required functionality, but no extras, except for sound), which is available at: http://www.cs.hmc.edu/~dodds/Applets/SpampedeBasic/Spampede.html
Also, an applet that demonstrates only what is in the original set of files in the /cs/cs60/hwfiles/a7 directory and can be tried out at http://www.cs.hmc.edu/~dodds/Applets/SpampedeOriginal/Spampede.html

Please note

In general, it will be much easier to develop your code using the appletviewer and only go to the web when your program is entirely complete!

You can find an applet with some bells and whistles at http://www.cs.hmc.edu/~dodds/Applets/SpampedePlus/Spampede.html. This applet demonstrates some additional functionality, but more is certainly possible (see the extra credit options, below).

Overview

This project introduces and practices a number of different techniques that are common to software engineering, that is the design and implementation of large software projects. Certainly this assignment can only provide a hint at a very rich -- and important -- field.

The Spampede applet is a bigger and more complex beast than any you have had to deal with in the past. Before you begin, we provide you with an overview of the software design behind the Applet you will create. Normally, it would be up to you, the developer, to do this design, but because this is your first large-scale project, we have done the class design for you.

The functionality of the application is broken down into three classes:

Maze.java: Responsible for storing the walls and spam in the maze, and for searching for spam and returning the path to the nearest spam can. You will extend the Maze class to incorporate more of the game's functionality.
SpamMaze.java: A subclass of Maze that does everything a Maze does AND keeps track of the spam that populates the board and location of the centepede. This is the class that has all of the functionality for playing the game including moving the pede, populating the board with spam, determining whether the pede has hit a wall, etc.
Spampede.java: A class that controls the functionality of the Applet. This class is responsible for displaying the board to the user, handling the user's key strokes, and controlling the timesteps that move the pede forward.

Part 1: Improving `Maze.java` [25 points]

The first part of this assignment is to improve the Maze class in which you wrote breadth-first search for assignment 6. In particular, you may start with either your own Maze.java file from last week or you may use our solution to that problem provided with the starter files. Either way, the internal data in the MazeCell (row, col, contents, etc.) MUST be private and you should start by making sure you add at least four public accessor ("getter and setter") methods to the MazeCell class within Maze:

public int getRow() { ... }, which returns the row of this MazeCell.
public int getCol() { ... }, which returns the column of this MazeCell.
public char getContents() { ... }, which returns the contents of this MazeCell.
public void setContents(char newcontents) { ... }, which sets the contents of this MazeCell to become newcontents.

These methods will be important for getting and setting values in other classes that you build in parts 2 and 3 of the assignment.

You should have a new zero-input contstructor for Maze. This is already in the solution file, or you can copy it from here:

protected Maze()
{
        ROWS = mazeStrings.length;
        COLUMNS = mazeStrings[0].length();
        this.maze = new MazeCell[ROWS][COLUMNS];
        for (int r=0 ; r< ROWS ; r++)
        {
            for (int c=0 ; c< COLUMNS ; c++)
             {
                 maze[r][c] = new MazeCell(r,c,mazeStrings[r].charAt(c));
             }
        }
}

This constructor loads a maze in from the static data member named mazeStrings, which is simply an array of strings contained in Maze.java. The nice thing about this is that you can edit your Maze directly in the file! Notice that we are assuming that the Maze class has data members named ROWS and COLUMNS that keep track of the dimensions of the array.

What is protected?

When data or methods are given the access level protected, it means that derived classes may use that data or method. However, unrelated classes may not use that data or method. Thus, protected is in-between the access level of public, which any class may use, and private, where only the defining class may use the data or method. Because part 2 of this assignment asks you to write a class named SpamMaze that will be a class derived from Maze and because SpamMaze will use this zero-argument constructor, protected is an appropriate access level. Basically, what we are saying is that this constructor should only be used to help create subclass objects not to directly create stand-alone Maze objects.

A more flexible breadth-first-search

The final method to write in Maze.java is

protected MazeCell multiBFS(MazeCell start, char destination) ...

which will implement breadth-first search from start to ANY cell containing the character in destination, which will typically be a 'D', representing spam. This method will be critical in implementing the autonomous spam-seeking behavior of the pede. Because it is breadth-first search, the method should find the closest destination to the start MazeCell. Note that this is slightly different from the BFS that you wrote on hw6. Now, you will need to make sure to stop the BFS process when it first reaches a destination of the type that you are looking for!

What should multiBFS do?

This method should have the following behavior:

Printing, but not changing, the Maze: That is, when multiBFS finds a path from start to destination, it should mark it with the 'o' characters, as before, and then print out this Maze. Afterwards -- before returning -- it should remove the 'o' characters and then return the next MazeCell on the path to the destination. If the Maze was not solvable, it should print that message and still return a valid MazeCell neighboring start. (See next point...)
Returning the next MazeCell on the path: This method should return the MazeCell that is adjacent to the start along the path that it found to the destination. If there was no path from start to any cell containing destination, then the multiBFS method should return any empty MazeCell that neighbors start to the N, E, W, or S. If there are no empty neighbors, then multiBFS should return an arbitrary MazeCell that neighbors start (and the centipede will crash!)
REALLY not changing the Maze! Regardless of whether a path is found or not, this method should reset all visited flags and parent data members of every MazeCell in the Maze. Unlike the previous assignment, where a Maze was solved only once, here your code will be solving a Maze repeatedly, so multiBFS must be really sure to leave the maze as it was before running breadth-first search. There is an empty method private void clearFlags() to write for just this purpose.

Testing your code

Be sure to test your code thoroughly before heading to part 2 of this assignment... there is a test in main for this purpose, and you should try editing the mazeStrings in order to make sure it works in a variety of conditions! You do not need to submit any testing this week, though.

Part 2: Writing `SpamMaze.java` [50 points]

The overview

In this part of the assignment you will create a derived class named SpamMaze that handles the model for the applet, which is part 3. A derived class is simply an extension of the data and capabilities (methods) available in the base class. Thus, by starting the code as in the provided SpamMaze.java file:

import java.lang.Math;
import java.util.LinkedList;

class SpamMaze extends Maze
{
  // your code goes here...
}

You should keep in mind that any object of type SpamMaze IS also an object of type Maze. In other words, a SpamMaze can do everything a Maze can do, and more! This is identical to the relationship of every object with Java's Object type. Object is the base class of all Java classes.

The data

Because a SpamMaze object represents the model for the Spampede applet, it needs to keep track of (1) the maze, (2), the centipede, and (3) the spam in the environment. Remember that (1) is already taken care of because your SpamMaze is a derived class of Maze. To keep track of (2) and (3), you should use lists of MazeCells. In particular, you will declare two data members:

  // The data members representing the spam and the centipede
  private LinkedList<MazeCell> spamCells;
  private LinkedList<MazeCell> pedeCells;

Each of these is of type LinkedList<MazeCell>, which is the Java-library version of a double-ended queue implemented via a linked list. You will thus have access to the methods listed at http://java.sun.com/j2se/1.5.0/docs/api/java/util/LinkedList.html. Notice especially the methods addFirst, addLast, removeFirst, removeLast, getFirst, getLast, and get(int n). Each get method is similar to peek in that it returns a value, but does not change the list. You can ask the size of a list with size(), which returns an int.

The methods

You should, in essence, implement all of the functionality, but not the graphics front end, for the Spampede game inside SpamMaze. At a minimum, you should implement the following methods. You may choose to add more methods - either private helper methods (to help these public methods) - or other public methods for your game to use.

public SpamMaze() a zero-argument constructor. This should call the base class's zero-argument constructor (to create the Maze) and then it should do additional initializion of the data members that are part of only the SpamMaze class (see above). Note that the initial state of the centipede is that its head is at maze[1][2] and that it has only one body segment, at location maze[1][1]. Thus, the centipede is initially facing east. It's initial direction is east as well. This may be set here in the constructor or elsewhere in the game - that's a design choice that is up to you.

public int getRows() is an accessor that returns the number of rows of this maze.

public int getColumns() is an accessor that returns the number of columns of this maze.

public char getContents(int r, int c) is an accessor that returns the contents of the MazeCell at row r and column c in this maze.

public void setContents(int r, int c, char newcontents) is an accessor that sets the contents of the MazeCell at row r and column c to become the char newcontents in this maze.

public void addSpam() adds one can of spam to the environment. You can choose the method used to add spam but the following properties are required:
- An inserted can of spam may not be placed anywhere on the current location of the centipede's body nor on a wall or existing can of spam.
- The reference to the new can of spam must be inserted in the spamCells LinkedList.
You may wish to use random numbers to generate the locations of new spam cans. To do so, include the line import java.util.Random at the top of the file. Then, you can construct a random number generator with a line such as Random myGenerator = new Random(); which declares myGenerator to be a random number generator (an object of type Random) and instantiates a new such object. Then, the command myGenerator.nextInt(k) will generate a random integer in the range from 0 to k-1.
public void removeSpam() removes one can of spam from the environment when it's time for the spam to disappear. Notice that this function will simply be called periodically in order to make the game more interesting. It will not be called when the centipede consumes a can of spam. That event will be handled in the advancePede function described below. You can choose the method used to remove spam, but the following property is required: When this function is called, a can of spam is eliminated from the spamCells LinkedList. This can be done at random or (perhaps more reasonably) the oldest spam can in the list is removed.
public int advancePede(char direction) this is the fundamental update method for the entire game! This is where the "smarts" go. In particular, a character indicating the direction to move is passed in. The characters 'N', 'S', 'E', 'W', 'A' should represent the directions north, south, east, west, and automatic ("automatic" will be described below). Be sure to define good names for these symbols to avoid magic values in your code! For example, you might have a value such as public static final char NORTH = 'N'; So, here's what this method does:
- Based on the direction that is passed in, the pedeCells LinkedList is updated to have the centipede move in that direction. That is, the head advances and the tail retracts in the given direction.
- If the centipede's head moves to a MazeCell that contains a wall or another part of the centipede, the centipede dies, and the centipede should be reset to its initial state. This function need not necessarily do the resetting. Notice that this function returns an integer value (or you can change it to a char if you prefer). That value may be used to help with the resetting elsewhere in the program. This is described next...
- So what exacty is the return value? It can be very handy for this function to return an integer or a character informing us (more likely the function that called this function) what happened. For example, if there was a collision with a wall, the calling function might appreciate knowing that so that. You can come back to this later - when doing part 3 - to decide what, if anything, you would like the function to return.
- If the centipede's head lands on a can of spam, the centipede grows by one MazeCell. That is, when the centipede next moves, its head advances one square, but its tail does not retract. Importantly, the can of spam that was just consumed must be removed from the spamCells LinkedList. What command will be used to do this? Check out remove command in the LinkedList class.
- Finally, the automatic direction. If this function is passed in the value 'A' then we are in AI mode. That is, the spampede should navigate by itself, also heading for the nearest can of spam. To do this, it will call the multiBFS method that you wrote in Part 1. multiBFS will return a reference to the MazeCell that the spampede should move to. The spampede will then be updated to move to that cell.
public char reversePede() this method reverses the centipede so that it has the opposite orientation and moves in the appropriate "opposite direction". Note that if the centipede was previously moving west, it is not necessarily going to move east upon reversal. Instead, the new direction is the opposite of the direction of the tail of the centipede. That is, if the last two cells of the centipede's body indicate that the centipede is moving north, then the new direction for the reversed centipede will be south. In addition to modifying the pedeCells linked list to perform the reversal, this function returns the new direction.

There are a number of ways to handle this. For one, you could not change pedeCells at all, but simply remember which side you're treating as the head and which side as the tail. Alternatively, you could take all of the cells off pedeCells and create a brand new list (in the newly-correct order) and use that as pedeCells going forward... . Personally (Z.D.), I like the latter approach, but either will work!

Testing!!

As with Maze, be sure to test your SpamMaze thoroughly in main before worrying about the graphical front-end of the applet in part 3. Below is a main method, which you should feel free to adapt to your implementation. Remember that you do not need to write toString -- the version that's already in Maze will work perfectly well! Again, you do not need to submit this testing this week.


  public static void main(String[] args)
  {
    SpamMaze SM = new SpamMaze();

    System.out.println("SM is\n" + SM);
    MazeCell nextSpot = SM.multiBFS(SM.pedeCells.getFirst(), SPAM);
    System.out.println("nextSpot is\n" + nextSpot);
    System.out.println("SM is\n" + SM);

    SM.advancePede(EAST);
    System.out.println("SM is\n" + SM);
    System.out.println("pedeCells is " + SM.pedeCells);

    SM.advancePede(EAST);
    System.out.println("SM is\n" + SM);
    System.out.println("pedeCells is " + SM.pedeCells);

    SM.advancePede(EAST);
    System.out.println("SM is\n" + SM);
    System.out.println("pedeCells is " + SM.pedeCells);

    SM.advancePede(SOUTH);
    System.out.println("SM is\n" + SM);
    System.out.println("pedeCells is " + SM.pedeCells);

    SM.advancePede(SOUTH);
    System.out.println("SM is\n" + SM);
    System.out.println("pedeCells is " + SM.pedeCells);
  }

Part 3: Putting it all together: `Spampede.java` [50 points]

Overview of Spampede.java

The Spampede applet gives a user control over a spam-seeking centipede. Key presses from the keyboard change the direction of the centipede's movement in order to intersect snacks (spam) that appear at random places on the screen. For each snack consumed, the centipede grows by one segment (a segment is simply one MazeCell). Variations are welcome (see the extra credit section below)!

As a result, in this part of the assignment you will be modifying another derived class, this one named Spampede, which is a derived class from Java's JApplet. This means that your Spampede is itself an applet that will run in a Java-enabled browser from anywhere.

Setting up

The "starter" applet Spampede.java and its html file Spampede.html are provided for you on the top-level assignments page. There are some other files you'll need, like ImagePanel.java, so make sure all the files are in the same directory with the files you developed for parts 1 and 2.

Finally, we have also provided the following files which you may wish to use (but they are totally optional):

Spam.au, an audio file

crunch.au an audio file

spam.gif, an image of a can of Spam

Getting the applet compiling, running, recompiling, and rerunning

This next section is full of details that will help you develop, compile and test your program. They are important to get right, but they can be rather tedious. Follow as much of this as you need to ensure that you see modifications to your applet and that you can read debugging output somewhere. Once you've got that working, you can go onto the next section where you will create your applet. The best way to test your applet is to use Java's appletviewer application. In fact, the graders will (at least by default) test your code with appletviewer.

If you're using an IDE like Eclipse or NetBeans, there may be a mechanism for running and testing applets built-in. Dr. Java, however, does not have such a mechanism (to my knowledge). So, if you're using Dr. Java, you'll need to run appletviewer from the command-line on your computer. The instructions are different for the Mac vs. a Windows PC.

Running appletviewer on a Mac

The basic idea is to open a terminal window, navigate to the directory that holds both your compiled java code and the Spampede.html file and then run

appletviewer Spampede.html

Here are some details:

Search for Terminal in the "Spotlight" search window (at the upper right)
Run that application; it will open a terminal window. Navigate using cd (change directory), tab-completion, and ls and pwd ("list" and "print working directory") to the folder in which your compiled Java code and the Spampede.html file aare located. You can compile your code from Dr. Java. Alternatively, you can run
```
javac *.java
```
to compile all of your java source code in your current folder.
Once things compile, run the appletviewer via
```
appletviewer Spampede.html
```
Note that the name of the .html file (not the classname of the Java class holding the applet) is used here.
Printing from System.out.println calls will appear in the terminal window. You can quit the appletviewer as you'd quit any Mac OS gui program - or, you can control-c from the terminal.

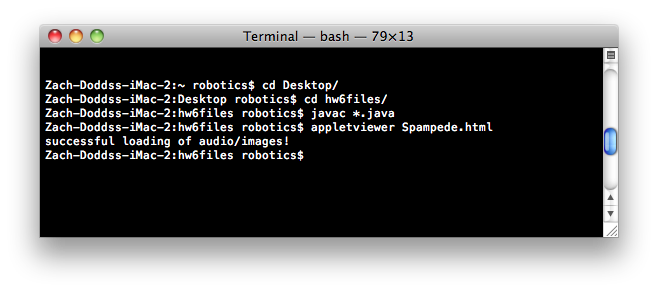

Below is an image of this set of steps on my machine... (The screenshot of the applet isn't included.)

Running appletviewer on a PC

As with Mac OS X, the basic idea is to open a terminal window, navigate to the directory that holds both your compiled java code and the Spampede.html file and then run

appletviewer Spampede.html

Here are some details:

If you don't have the java tools (javac and appletviewer, among others) in your "path," you can add the path to those programs as described in step 4 on this page. If you do this, you won't have to use the "full pathname" to appletviewer. The instructions below do use this "full pathname," just in case you have not added their location to your path.
Open a "command" window. One way to do this is to open the Windows menu in the lower-left-hand corner and choose the "Run" option. In the textbox that opens, type cmd . It's also under "Accessories."
Use cd (change directory), tab-completion, and dir (for listing directories) in order to navigate your way to your compiled java code. You can compile it in Dr. Java.
Then you should be able to run the appletviewer on the .html file (not the Spampede class file). If your path is set, you need to run
```
> "C:>\Program Files\Java\jdk<version>\bin\appletviewer" Spampede.html
```
where <version> will depend on the version of the jdk you installed (use the usual explorer interface to see which one it is... . This is a pain to type... you can use tab-completion to do almost all of it for you. If that location is in your path, then appletviewer Spampede.html will work.
Printing from System.out.println calls will appear in the terminal window. You can quit the appletviewer as you'd quit any Windows gui program - or, you can control-c from the terminal. Remember that you can use up-arrow to bring back the previously typed command, so you don't have to keep typing it again and again... .

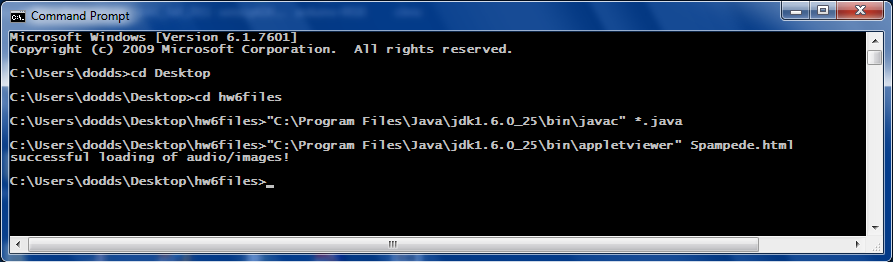

Here is a screenshot of this set of steps on my machine:

If you're using appletviewer, the print statements in your code will appear in the terminal window from which you started the viewer.

Writing the applet

Once the above steps work for you, you're ready to write Spampede by the modifying Spampede.java file with the following things in mind.

Be sure to create, in init and/or in reset, a SpamMaze and make sure it is in a suitable starting configuration. There is already a data member named this.themaze to hold the created object. This may already be done for you in the code, if you are using the zero-argument constructor for SpamMaze.

Draw the contents of the SpamMaze within the drawEnvironment method already provided. This will require writing a nested loop to create the 2d array of 10x10 pixel squares that represent the maze. This drawEnvironment method will be called every so often by the cycle method to show the latest state of the maze. You should use different colors of your choice representing walls, empty space, the head of the centipede and the body of the centipede. You will want to use the fillRect command to accomplish this.

Update the spam within the SpamMaze named themaze. Within updateSpam you can add (and/or remove) spam every so often -- though doing so every cycle will probably be too fast!. You can also add spam as needed (e.g., when one is eaten). But, you should make sure to have at least one spam on the board at all times.

Keep track of the centipede (i.e., the "spampede"). The updatePede method is provided as a placeholder for where you would do this. You might want a data member that keeps track of the centipede's current direction so that advancePede can be called appropriately -- the provided code has a data member private char dir that you might use for this. In this case, key presses would simply change this internally-stored dir.

Keep in mind that no MazeCells are moving as the centipede crawls through the maze! Rather, it's the data member named pedeCells of type LinkedList that's snaking its way through the 2d array of MazeCellss by changing the cells to which it refers.

Handle key presses. You will see a method that prints out certain characters when track of the centipede (i.e., the "spampede"). When the user presses the following keys, the centipede should change direction as indicated:

r : reverse, switching its head's position to its tail
i : turn north
j : turn west
l : turn east
k : turn south
a : go into autonomous, spam-seeking mode ("AI")

If the centipede is already heading in the direction that the user chooses, nothing changes. If the user changes the centipede's direction so that it is moving back on itself (from South to North, say, or West to East), you may reverse direction, ignore the command, or "terminate" the centipede.

As you write your code, please compile and rerun the applet often to make sure you're on the right path. Use the appletviewer (or a web browser with a Java Console) to help with debugging and error-detection. Basically, this means many iterations of the compilation, copying, and testing steps above.

A Reminder On What to Submit

Please be sure to zip up the whole folder of files that makes up your Spampede applet (including any sound and/or image files) into an archive named hw6files.zip, and then submit it in the usual way. Be sure your README file described at the very of this web page is within that zip arive, too.

I want more!

If you haven't had enough of the Spampede.java file at the end of this assignment, there are a couple of specific items and an open-ended invitation to improve on the applet for optional bonus credit. (Up to 25 points in total.)

If you add optional features, please explain them carefully in the README file.

Enemy Pedes!: Allow there to be one or more "enemy" pedes that use the multiBFS and/or other heuristics to play against your pede. (This is worth extra bonus points since it is a bit more challenging.)

Speed up: You might want to have the rate at which the centipede is moving to increase as the game progresses.

Scoring: You might want to have a system of scoring with a running total displayed as a label or text field or simply drawn to the applet panel.

Lives: Rather than resetting or stopping the game after a single Spampede crash, keep a text field (or label) with the number of lives remaining and decrement it after each crash. When there are no lives left, stop the game (though you might want to consider a "reset" button.)

Levels: Rather than maintaining a single, static maze, you may want to have the centipede advance to different mazes after consuming enough spam.

Wrapping: Allow the centipede to wrap around the game board -- either in an unlimited fashion or through small tunnels in the walls. Or you might consider a "hyperspace" square, that "sends" cells to another spot on the board.

General improvements: Feel free to add additional features you think would enhance the Spampede applet: different kinds of spam, sounds, images, other graphical widgets like pull-down menus or text boxes, etc.
