Assignment 14: Extra Credit Assignment: Seam Carving!

Due Sunday, May 8 at 11:59 PM

This extra-credit project offers a chance to implement the Seam Carving algorithm in a Java applet.

Seam carving was first published in this paper by S. Avidan and A. Shamir in 2007. It's a relatively accessible paper, and you'll want to have this link available to refer to it as you implement seam carving. The approach uses dynamic programming in order to quickly find the lowest-cost seam from top to bottom or from left to right in an image. Repeated removal of seams allows for image-aware resizing to any smaller size. (The paper offers a seam-insertion algorithm for resizing to larger sizes, too, though that won't be our first priority here.)

This assignment starts with these applet-based starter files:

SeamCarving.zip a variant on the Spampede applet files from earlier in CS 60. First, make sure you can run the provided applet as follows:

• Compile it with your IDE (or javac *.java at the command-line)
• Since Dr. Java does not have a solid applet-runner, I ran the applet from the command-line with appletviewer SeamCarving.html
• Note that if appletviewer is not in your path, you'll need to run the full path to it, e.g., for my Windows system "C:\Program Files\Java\jdk1.6.0_18\bin\appletviewer.exe" SeamCarving.html
• Once the applet is running, hit Load to get it started -- this should load and show the okinawa.jpg file.
• Then, click the Start button. This will start the update loop, which is calling drawEnvironment every 50ms (or so)
• Now, the applet should respond to mouse button presses within the okinawa.jpg image. With each press (though not too quickly), the provided code
  • prints out the coordinates of the pixel clicked
  • prints out the colors of the pixel clicked
  • changes the color of that pixel and its neighbors to all-green
  These behaviors are to show how you can access - and change - the pixels from a BufferedImage, which is a class you'll want to use throughout your Seam Carver.

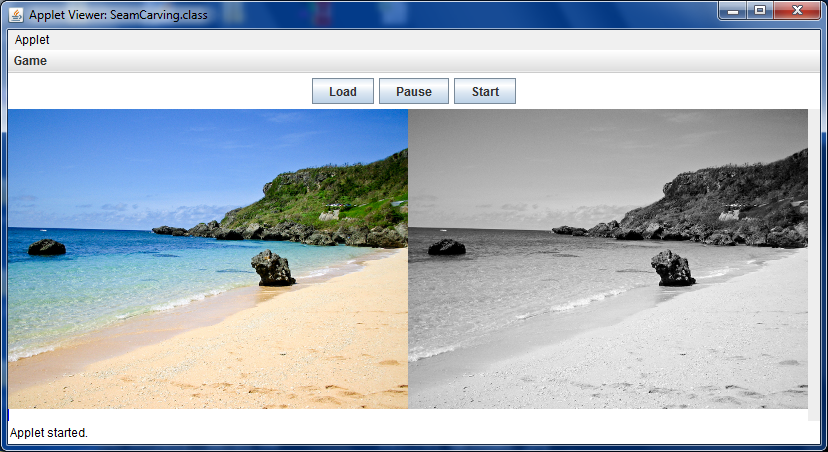

• Next, with the focus still in the applet window, hit the g key (lowercase g). This should create a brand-new BufferedImage with a grayscale version of okinawa.jpg and display it to the right of the original. Here is a screenshot:



The mechanism for assigning pixel values may not be entirely clear from the code (in mouseClicked):

bimage.setRGB(x, y, rgb);

What is happening here is that setRGB expects the color values to be "packed up" bitwise into a single integer (here, named rgb). This code will let you assign any values from 0 to 255 for the red, green, and blue channels:

// this depends on prior declarations (as int)
// for the variables red, green, blue, and alpha:

// Setting a pixel
red = 0;
green = 255;
blue = 0;
alpha = 255;
// this next line packs these four values into a single integer...
rgb = (alpha << 24) | (red << 16) | (green << 8) | (red);
// that integer (rgb) is of the format needed by setRGB
bimage.setRGB(x, y, rgb);

You might play around with these colors to be sure that you can set them however you'd like.



What to do

This project has several parts, each worth some of the points available:

• [10 points] for computing the "edge energy image" and providing a way for the user to show this image. The paper writes the edge energy at each pixel using the sum of the absolute value of two derivatives. Fair enough, but all this means in practice is something like this:


    e(r,c) = ( |i(r+1,c)-i(r,c)| // southern derivative
             + |i(r-1,c)-i(r,c)| // northern derivative
             + |i(r,c-1)-i(r,c)| // western  derivative
             + |i(r,c+1)-i(r,c)| // eastern  derivative
              ) / 4.0;


  This defines e, the edge energy of the pixel at row r and column c and i(r,c) is the intensity of the pixel at that spot. Also, you'll need to adjust the four terms above so that fewer terms are used on the boundaries of the image (and a smaller denominator in those cases, too). To obtain intensity from a color image, I used

    i(r,c) = (red(r,c) + green(r,c) + blue(r,c))/3.0;

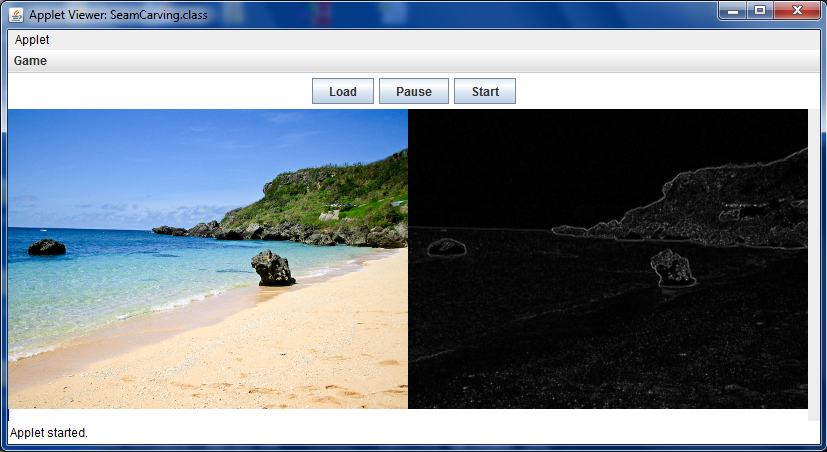

  In order to display this, you'll have to create a new BufferedImage, scale the enery values to 0-255, make sure they're integers, and place them in the pixels appropriately. This is already done in toGray. Here's a screenshot from ours:

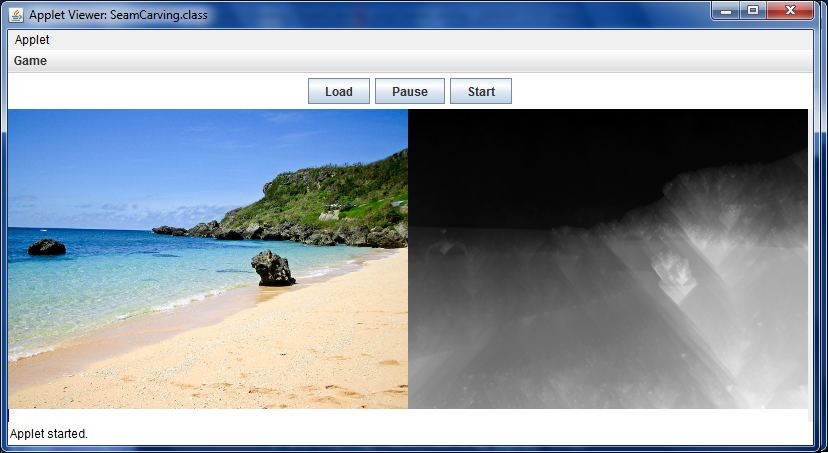

• [20 points] for computing and displaying the dynamic-programming-based "energy-sum" image (as shown in the paper and in class) and for finding the lowest-importance seam, which should be highlighed in some distinct color, e.g., red. To display this image, you may want to add a new button to the applet (or use a keystroke - the interface is up to you). An image:

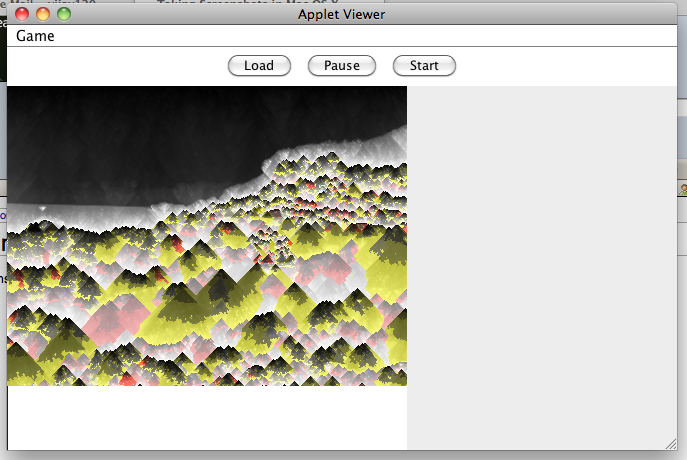

  Watch out!   as the values can get (much) larger than 255. If you don't account for this (and then pack up your pixels in the usual way), the bits will "spill over" into other channels, creating a color image like this:


  To avoid this, be sure to scale every value in your accumulated energy table by multiplying by 255.0/maxval before converting to an int and placing them into the grayscale image.

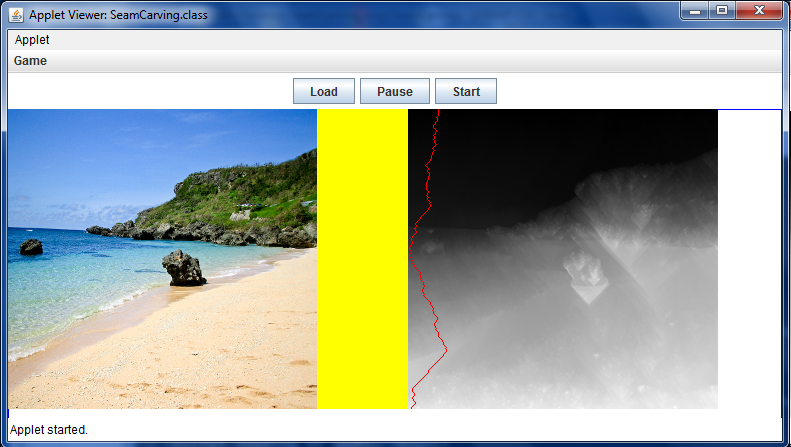

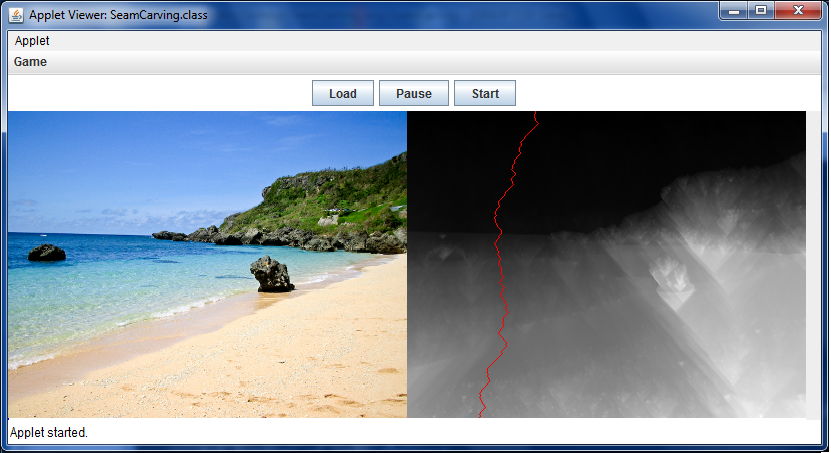

• [20 points] for actual seam-carving. That is, for removing the minimum-importance (vertical) seam of pixels and re-displaying the resulting image. I did this by moving the other pixels over appropriately and adding a final row of white pixels (to blend into the background). There should be a way for a user to keep seam-carving, so that the image continues to become narrower. Here's our first seam and an image after many more seams have been carved:






• [25 points] are available for basic improvements to the user-interface and capabilities, e.g., adding buttons or messages for displaying the different parts of the process listed above. You're encouraged to design an interface of your own, but as a guide to the kinds of capabilities you might include, each of the following features (or other equivalent ones) would be worth 5 points. Substitutions are welcome!
  • A button to revert back to the original image
  • Buttons to toggle between the edge-image without seam and the edge-image with seam
  • Similarly, buttons or other elements to toggle between the energy-sum-image without seam and the energy-sum-image with seam
  • A pull-down menu (or button) to rotate among different images that are provided (like okinawa.jpg - add one or more of your own).
  • A checkbox or other interface component to choose between vertical and horizontal seam-carving.
• [25 points] are also available for cool "above and beyond" features or creative extensions. Again, this is completely up to you, but here are a couple of ideas for possibilities:
  • for example, full credit on this part would be available if the user could select rectangles of pixels that would guide the seam carving, either always being carved or always being avoided (to obtain the kinds of results we saw in class)
  • similarly, seam-insertion as described in the paper would earn full-credit on this part




Submission

To submit this assignment, zip up your SeamCarving folder and upload it as SeamCarving.zip under week 14 on the submission site.
