The SeamCarver object keeps track of the current color image (this.colorImage); the job of getIntensity(x,y) is to return the grascale-equivalent value of the corresponding pixel (x,y) in that color image.
In the color image, each individual pixel has:
- a redness level (0-255, where 0=no redness and 255=maximum redness)
- a blueness level (0-255),
- a greenness level (0-255),
- an opaqueness (0-255, where 0=completely transparent and 255=totally opaque).
Shades of gray arise when you have equal amounts of red, green, and blue. (Of course, black is 0 for all three, while pure white is 255 for all three.) We could therefore convert from RGB to gray by computing the average of the three.
That is certainly acceptable. A slightly fancier approach is to compute luminosity, rather than the average. Luminosity is a weighted average of red, green, and blue; the weights take into account that people are much better at seeing differences in some colors (e.g., greens) than in others (e.g., blues):
luminosity = 0.21 * redness + 0.72 * greenness + 0.07 * blueness
Here is an example showing the difference between average and luminosity.
(Java Hints: BufferedImages)
This method just creates an empty BufferedImage object with the same dimensions as the color image, computes the grayscale intensity at each point, and sets the red, green, and blue values of that point to that intensity.
Once this is implemented the Gray button should start working.
Q: “I implemented this, but when I select the Grayscale image, the picture disappears!”
A: The output of this.getIntensity(...) is a number between 0 and 255. If you pass this as an integer directly to putRGB, it will be interpreted as opaqueness, redness, and greenness all 0 (since the most-significant bits of that small integer are all zero), and blueness equal to the intensity. So, you'll get a 100% transparent blue image. This is very hard to see. Make sure putRGB is being given maximum opaqueness, and equal red, green, and blue values.
The paper writes the energy at each pixel using the sum of the absolute value (Math.abs) of two derivatives: the horizontal and vertical rates of change in grayscale intensity.
Let us abbreviate the grayscale intensity at point (x,y) as \(i(x,y)\). Moving horizontally, we can numerically approximate the horizontal derivative (rate of horizontal change in intensity) at (x,y) with any of three methods:- The forward difference \[ i(x+1, y) - i(x, y) \]
- The backwards difference \[ i(x, y) - i(x-1, y) \]
- The central difference \[ \frac{i(x+1, y) - i(x-1, y)}{2} \]
Numerically, the central difference is considered most accurate. For pixels on the edge, i(x-1,y) or i(x+1,y) might not exist, in which case you would want to use one of the others.
Vertical derivatives are similar. For example the vertical central difference would be computed as \[ \frac{i(x, y+1) - i(x,y-1)}{2}. \]
(Java Hints: 2D Arrays)
This is the dynamic-programming part of the assignment. A vertical seam is a sequence of pixels, one per row of pixels, such that pixels in adjacent rows are no more than one column apart. Since there's exactly one pixel per row, we only have to remember the columns of each pixel; this can be represented as a single array of integers.
Step one is to create an array table of integers, of the same size as the image. Each entry table[x][y] is the total energy of all pixels in the least-energy seam starting on the top row and moving down to the ending at pixel (x,y). As discussed in the paper, we can define this recursively by \[ \begin{array}{lcl} \mathrm{table[x][0]} &=& \mathrm{getEnergy[x][0]}\\ \mathrm{table[x][y]} &=& \mathrm{getEnergy[x][y]} + \mathrm{min} \begin{cases} \mathrm{table[x-1][y-1]}\\ \mathrm{table[x][y-1]}\\ \mathrm{table[x+1][y-1]}\\ \end{cases} \end{array} \] That is, the least-energy seam ending at (x,y) extends the best seam ending either directly above-and-to-the-left, directly above, or directly above-and-to-the-right. (Note that for pixels on the far left and far right borders, only two of these three possibilities exist.)
The dynamic programming approach is to fill out this table in order of increasing y: first all the entries where y=0, then the entries where y=1, etc.
We also need code to keep track, at each pixel, which of the 3 possible parent seams was chosen.
We can do this basically in the same way we did in our Spampede breadth-first-search algorithms.
Specifically, creating a second 2D array parent. The idea is that
parent[x][y]
will be the column of the previous pixel in the best seam ending at (x,y).
So, if while computing table[x][y] we decided the smallest of the
three possible parent seams was table[x+1][y-1], then parent[x][y] should
be set to x+1. If the smallest of the three possible parent seams was table[x][y-1], then
parent[x][y] should be set to y. And so on.
Finally, when we have filled out the table and parent arrays, we can
find the best seam. First, we find the smallest table value in the bottom
(maximum y) row. This will be where the seam ends. Using the parent array,
we can figure out whether the seam extends up-and-left, up, or up-and-right, to find the
next pixel in the seam. We continue working our way up, until we reach the top row.
We can collect the columns of each pixel in the seam into an array.
(The row numbers will be obvious, since there's exactly one pixel per row.)
Example: If we had a 3-by-3 image whose energies were \[ \begin{array}{ccc} 1 & 2 & 3\\ 8 & 6 & 4\\ 5 & 6 & 5\\ \end{array} \] then table would be \[ \begin{array}{ccc} 1 & 2 & 3\\ 9 & 7 & 6\\ 12 & 12 & 11\\ \end{array} \] and parent would be \[ \begin{array}{ccc} X&X&X\\ 0&0&1\\ 1&2&2\\ \end{array} \] (The top row of parent doesn't matter, since there are no more pixels above.)Thus, the best seam ends in the lower right corner, in column 2, because that's the smallest value of table in the bottom row. Working backward through the parent array, we find that the next pixel up is also in column 2, and the pixel above that is in column 1. Thus we get the seam (from top to bottom) 1,2,2, corresponding to the original pixels with intensities 2, 4, and 7.
Please make sure you understand where this seam comes from before you start coding.
This method should compute a grayscale image, compute the seam, and use the seam to color all the pixels on the seam red. Then return this image. Once this method is implemented, the Seam button should start working.

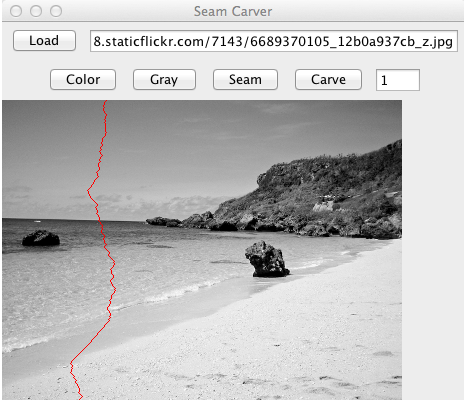

Here's the seam I got for the default image. Depending on exactly how you compute grayscale intensity, derivatives, and pixel energy, you could get a slightly different seam. But it shouldn't be wildly different (e.g., in the same general region, not going to a corner or along the edge of the image.)
This method should compute the seam and delete those pixels from the color image stored in the SeamCarver object. In practice, this will mean creating a new color image (slightly smaller), and copy all pixels in the original image into the new image except for the seam pixels. Then set this.colorImage to that new image.
