Harvey Mudd College
Computer Science 60
Extra-credit Assignment 12, Due Friday, May 9th at 11:59pm

Unicalc and Unilang

Here is the starter code for hw12: hw12.zip

Grading notes:

The files in question are
submissions@knuth:~/submissionsFall13Files/handbuiltScripts/cs60_wk12_files/xxin/hw12/src/junit-4.10.jar and
  .../hamcrest-core-1.3.jar

Then,
cp ~/*.jar .
javac -cp .:./junit-4.10.jar *.java

javac -cp .:./junit-4.10.jar *.java

javac -cp .:./junit-4.10.jar QuantityTest.java
javac -cp .:./junit-4.10.jar TokenizerTest.java
javac -cp .:./junit-4.10.jar ParserTest.java
javac -cp .:./junit-4.10.jar EvaluatorTest.java


java -cp .:./junit-4.10.jar org.junit.runner.JUnitCore QuantityTest
java -cp .:./junit-4.10.jar org.junit.runner.JUnitCore TokenizerTest
java -cp .:./junit-4.10.jar org.junit.runner.JUnitCore ParserTest
java -cp .:./junit-4.10.jar org.junit.runner.JUnitCore EvaluatorTest

if in the src package, go up one directory and run

java -cp .:./src/junit-4.10.jar org.junit.runner.JUnitCore src.TokenizerTest
and so on...

This homework asks you to use Java to implement the Unicalc application that you completed in Scheme in weeks 2 and 3. You will use the OpenList data structure as the fundamental building block. OpenList is designed to implement Racket-like list structures. Because Java is organized around creating and combining data structures, we will Java-ize Unicalc in four parts:

• writing a Quantity class that represents a quantity list. This class will have the functionality of all of Unicalc.
• writing (adapting) a Tokenizer class that converts raw Strings to arrays of tokens.
• writing (adapting) a Parser class that converts an array of tokens to a parse tree. Note that the parse tree will be represented as an ParseTree object.
• writing (adapting) an Evaluator class that converts a parse tree to a value (that is, an object of type Quantity). Also, the Evaluator will print out various pieces of the task.

Why so much code provided? I'd prefer to write the application myself... .

Please do! With the support code we are balancing two valid concerns: on one hand, there is a deep understanding that only a from-scratch implementation can provide. On the other hand, we want to provide enough examples and framework to build familiarity with what are certainly intricate - and important! - computational ideas. There is also an example languages: the MiniMath language that we showed briefly in class (and is not fully working, though it does give an example of all of the important ideas!)

Here is a link to that MiniMath example code, in a zip file...

Feel free to use as much - or as little - of the support code as you wish. One important thing we do ask if you implement from scratch is to use (or replicate) our toString conventions, so that we can check your results efficiently!  Also, please adhere to the interfaces we provide (names of functions, parameters, return types, etc).

The goal of this assignment is that you have hands-on experience with (and, we hope, insights into) the processing that is part of implementing all computer languages. Using the starter code or building from scratch, we believe, can both provide that foundation.

Submitting your code

Please submit the following files zipped in an archive named hw12.zip:

• OpenList.java (Provided)
• ParseTree.java (Provided)
• Quantity.java (Problem 1)
• QuantityTest.java (Provided)
• Tokenizer.java (Problem 2)
• TokenizerTest.java (Provided)
• Parser.java (Problem 3)
• ParserTest.java (Provided)
• Evaluator.java (Problem 4)
• EvaluatorTest.java (Provided)
• extra.zip if you try the extra credit...

Because the .java files you write this week will be interdependent, keep them all in a single folder/directory named hw12 That way, java will be able to find classes as it needs to. Also, it will be easy to zip up that directory to submit.

Part 1: Unicalc in Java via Quantity

+10 points

This is the implementation - really a port - of Unicalc's functionality into a Quantity class in Java.

The implementation will be in the Quantity class.
In order to ensure that toString and other important methods are uniform, there is a starter file for Quantity.java

Notes on Quantity

• Objects of type Quantity will represent quantity lists, i.e., something of the form

       { 9.8, [meter], [second, second], 0.1 }


  The above Quantity object represents 9.8 meters per second squared with an uncertainty of 0.1. Note that when a Quantity is printed, it is surrounded by curly braces.



• As with quantity lists in Racket, a Quantity will always contain four elements. For example, if an object of type Quantity holds only a value, it would look like this:

       { 42.0, [], [], 0.0 }


  Here, we are illustrating the provided toString function, along with the OpenList class . The curly braces are used to help distinguish objects of type Quantity from objects of type OpenList.



• Watch out for cancel!

  cancel, which may be the first method you implement, may also be the trickiest of them! Some thoughts:
  • Make sure you feel comfortable with what cancel should do - here is some pseudocode:

        cancel( [m,s], [kg,s] ) returns [m]
        cancel( [m,s], [kg,m,s] ) returns []
        cancel( [m,s], [kg] ) returns [m,s]
        cancel( [m,s], [] ) returns [m,s]


    So, cancel does not treat its input lists the same! It's trying to cancel elements from the first input, L that are present in the second input, M.
  • Thus, watch out for the base cases!
  • After the base cases, we'd suggest making the first of L and the first of M very easy to work with by using the following lines. Only lists of Strings will be used with cancel:

       String fL = (String)L.first;
       String fM = (String)M.first;


    From there, you can test conditions such as fL.equals(fM) and fL.compareTo(fM). Based on those tests, your code will return the appropriate value.
  • Note that the lists L and M are both sorted! As a result, you only need to compare the first element of each. This will work in a manner similar to merge, though not exactly the same.



• Here is an overview of what Quantity.java already has, and then what you'll need to implement:
  • Provided data members:


          private double m;    // the multiplier
          private double u;    // the uncertainty
          private OpenList N;  // the numerator, an OpenList of Strings (units)
          private OpenList D;  // the denominator, also an OpenList of Strings (units)




  • Provided methods:

          public Quantity(double m)                          // constructor for a "plain-number" QL
          public Quantity(double m, OpenList N, OpenList D)  // constructor with 0.0 unc.
          public Quantity(double m, OpenList N, OpenList D, double u)  // "standard" constructor

          public String toString()             // for printing objects of type Quantity
          public static OpenList getSmallDB()  // gets a pre-prepared database of units
          public boolean equals( Object o )    // the equals method for any Object
          public boolean equals( Quantity q )  // the equals method for comparing Quantity objects
          public static void pl( Object o )    // printing for lazy (or sane) folks!
          public static void pl()              // ditto!
          public static void main(String[] a)  // main method




  • Methods to write:

          // a constructor with a different order of inputs...
          public Quantity(double m, double u, OpenList N, OpenList D)

          // These are ALMOST translations from earlier weeks' Unicalc code
          //
          // Note that norm_unit, norm, and add take in a DB, rather than using a global DB

          // cancel removes elements from L, if they're in M - it's NOT symmetric!
          public static OpenList cancel( OpenList L, OpenList M )

          // simplify cancels common units from N to D and vice-versa
          public static Quantity simplify(Quantity Q);

          // multiplies two Quantity lists
          public static Quantity multiply(Quantity Q1, Quantity Q2);

          // raises Q to the pth power (p ≥ 0)
          public static Quantity power(Quantity Q, int p)

          // divides two Quantity lists
          public static Quantity divide(Quantity Q1, Quantity Q2);

          // returns the normalized QL equivalent to unit
          public static Quantity norm_unit(String unit, OpenList DB);

          // returns the norm_unit QL equivalent to Q
          public static Quantity norm(Quantity Q, OpenList DB);

          // adds two Quantity lists *after* normalizing them
          public static Quantity add(Quantity Q1, Quantity Q2, OpenList DB);
          // If the units (afer normalizing) do not match, return the following
          // valid Quantity:  { 0.0, ["error:add"], [], 0.0 }

          // negation (we can implement subtraction via add and negate)
          public static Quantity negate(Quantity Q);


Additional Notes

Presuming the numerators and denominators are sorted    The constructors of Quantity should make sure that the numerator and denominator units are in alphabetical (sorted) order. Our starter file provides this functionality.

In addition, the file QuantityTest.java has a set of tests that you'll be able to compile and run once Quantity's methods are written.

Part 2: Tokenizer

+5 points

A Tokenizer.java file provided for you in the code at the top-level assignment page. You will want to improve it so that the Unicalc language's tokens are found correctly whether or not spaces are inserted around the operators. Other things are possible here, too, if you decide to add your own features to the language, but for the required part of the language, this file will require the fewest changes.

Notes on the tokenizer:

• The expression 42~1 m represents 42 m with an uncertainty of 1. The provided parser will handle parsing this into a Quantity list... however, your tokenizer will need to separate the ~ (tilde) token in order for it to do so!



• You do not have to tokenize input strings to separate numbers from variable names. (You're welcome to try this, if you'd like, but it's not needed.) We will only test your language with spaces separating numbers from units (or variables).

  Thus, you don't have to worry about 3m/s.
  We'll always input that as 3 m/s.

Part 3: Parsing the Unicalc language via Parser

+15 points

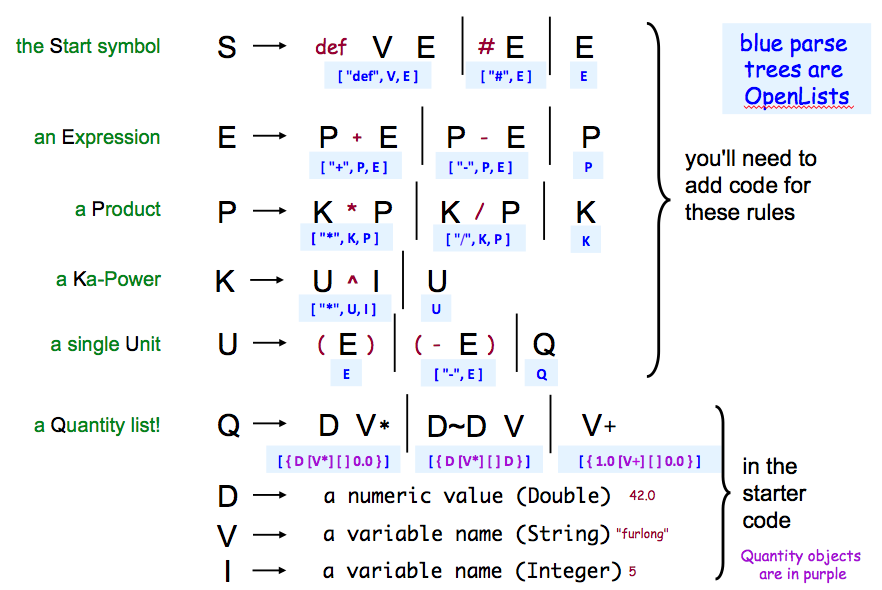

This problem asks you to implement a Parser for the Unicalc language, whose grammar and parse trees are are summaried in this picture.



More detail on some fo these are below... .

Notes on this grammar

Symbols listed in red are terminal symbols. Similarly, doubles, ints and strings are also terminals.

The rule for Q uses the asterisk, not as "times," but meaning "zero or more of the preceding symbol." It also uses the plus sign, not as addition, but meaning "one or more of the preceding symbol." This Q rule is already implemented in the provided Parser.java file. D, I, and V are also already implemented. You will only need to implement rules U and above.

Parser.java implements a recursive-descent parser for part of the above grammar; your task is to extend it to the rest of the grammar.

Reminders about parsing:

• The method that will begin all the work - even though all of that work will be delegated recursively - is parse:

  public ParseTree parse(String[] tokens)    This method should return a new object of type ParseTree that represents the parse tree for that set of tokens.



• We will not test your code on invalid sets of tokens:
  • There will be no unmatched parentheses.
  • We won't use negation except as the grammar indicates (none of the numbers will be negative).
  and so on... . It's still a good idea to include checking to see if there are tokens remaining as you write your parser, because as you debug the parser those checks may get used - they did when we implemented it! That said, we won't check what your language will do on inputs that don't match the grammar.



• Examples for testing your Parser (and tokenizer)

  Here are a sizable number of examples, roughly in the suggested implementation order of the Parser's rules, so that it's reasonable if you test them in this order, as you implement.

  Assignment 10's tokenizer and parser tests.




• Suggested strategy for Parser    One way to build up to the full grammar is to implement one nonterminal method at a time and then test it to be sure that your rule works. The parse trees above can be used in the order they're presented you implement the rules in a similar order:

  • first, E
  • then, P
  • then, K
  • then, U
  • then, finally, S


  This is a great way to build up functionality incrementally, and it's roughly the order of difficulty in implementation - especially if you use the MiniMath language as a guide.

  Warning! if you use the order suggested above, BE SURE you are changing the start symbol that is called in the parse method! Also, be sure that the lowest-implemented method calls Q until methods lower in the grammar can replace it. To be even more concrete, here is a summary of the symbols you'll need to change as you implement - and test - these Parser methods one at a time:

  public ParseTree E()  // be sure to change parse to call E and change E to call Q and E (not P and E)
  public ParseTree P()  // be sure to change E to call P and change P to call Q and P (not K and P)
  public ParseTree K()  // be sure to change P to call K and change K to call Q and I (not U and I)
  public ParseTree U()  // be sure to change K to call U and change U to call Q and E (as it should)
  public ParseTree S()  // be sure to change parse to call S and change S to call E and V, as appropriate





• Note on negation:    note that in our language, negation can only happen immediately inside a left parenthesis. This makes it considerably easier to parse. Depending on how you tokenize, providing negative numbers may or may not yield the "-" token. In order not to worry about these ambiguities in implementation, your language will only be tested with positive quantities, and negation will be tested as the U rule indicates, by including a minus sign immediately after a left parenthesis.



• Note on the "defining" rule, S:    The S rule introduces a new operator, the string "def". The parse tree that is returned for this operator should be ["def", V, E], where V will be a String and E will be a suitable parse tree starting with that E symbol in the grammar. The behavior of def is both to return the value of E (easy) and to remember that value within the variable represented by V. This latter part is more challenging, but it's the job of the evaluator, so we procrastinate worrying about it until then! Your parser simply will want to return the correct parse tree, and for that, the def operator is relatively straightforward to implement.



• Testing your code    The main method is already written to make this easy - you should be able to try out all of the above test (and more of your own) to be sure that your Parser is working correctly. (You don't need to submit additional tests for this problem.)

Part 4: Evaluating the Unicalc language via Evaluator

+12 points

This part completes the unicalc language. Here, you should build/extend the Evaluator class that will convert parse trees into objects of type Quantity.

What does everything evaluate to?    Well, every valid statement in the Unicalc language evaluates to an object of type Quantity, that is, a quantity list. For example, the parse tree which is simply a list of a Quantity naturally evaluates to that Quantity object.

• Some of the others parse trees are clear in how they will evaluate. They're very similar to the MiniMath example, and you will have methods in Quantity that handle them:
  • multiplication
  • division
  • power
  • negation



• normalizing    A parse tree of the form [ "#", E ] should evaluate to a normalized object of type Quantity. This will take advantage of norm and norm_unit in your Quantity class. It also requires a database of units in which to do the normalizing. To start, you should use the database provided by the Quantity.getSmallDB() method. (The last part of the language, def will let you replace this database with one built on-the-fly.)

  To make it easy to use any association list as a database, you might include thes lines at or near the top of the evaluate method in Evaluator.java:

      // DB is the unit database in which the expression is evaluated, if needed
      // when you implement def, this should change the line
      // OpenList DB = Quantity.getSmallDB();    to the line
      // OpenList DB = this.env;
      OpenList DB = Quantity.getSmallDB();


  Then, you can use DB throughout the following code (to norm or add or elsewhere) and it will be easy to change what DB you're using!



• adding    A parse tree of the form [ "+", P, E ] should evaluate to an object of type Quantity by using the add method. This requires a database because both subtrees should be normalized and checked for equivalent normalized units before adding. To begin, the same database obtained by Quantity.getSmallDB() is the one to use.



• subtracting    should be handled by using addition and negation appropriately. Note that this handling is happening in the evaluation step, not the parsing step: subtraction is still parsed as you'd expect.



• grouping    is never even seen by the evaluation stage -- parentheses are all resolved during the parsing!



• defining variables    is the most open-ended and challenging part of this assignment. First, the parse tree [ "def", V, E ] should simply evaluate to the value of E, which will be an object of type Quantity. This functionality is what you'll want to get working initially.

  However, the much more important function of def is that it should add an association to the front of the evaluator's association list representing the environment in which the evaluator does its work!

  This requires some explanation. First, an example: we'd like to be able to assign 42 m to x and then use that value in the future. For example:

  def x 42 m       # defines x to be 42 m
  18 m + x         # asks, what is 18 m plus x



  In order to do this, you will need to use the private OpenList env data member to your Evaluator class. That data member is there in order to represent an association list of variable names with their values. It starts out empty, which is a valid association list, and unused.

  Each time your evaluator sees a def statement, it should add a binding of the value of E to the variable name V in the association list this.env! This "binding" is nothing more than an OpenList with two elements: the String V and the Quantity that's the value of E. To illustrate this, here is the full set of interactions from the two lines above. To See the env data member, you'll need to set the PRINT_ENV variable to true:

  def x 42 m

      The tokens are < def, x, 42, m >
      The parseTree is [def, x, [{ 42.0, [m], [], 0.0 }]]
      The value is { 42.0, [m], [], 0.0 }
      The current env is
      [
        [x, { 42.0, [m], [], 0.0 }]      // NOTE: no longer empty!
      ]


  18 m + x

      The tokens are < 18, m, +, x >
      The parseTree is [+, [{ 18.0, [m], [], 0.0 }], [{ 1.0, [x], [], 0.0 }]]
      The value is { 60.0, [m], [], 0.0 }    // CORRECT RESULT!
      The current env is
      [
        [x, { 42.0, [m], [], 0.0 }]
      ]



  Note that the current env is no longer empty after the initial def statement. Now its association list contains one association: the variable x is associated with the Quantity { 42.0, [m], [], 0.0 } (this is a Quantity, not a string!) Then, it gets used in the future in order to look up the values of variables!

  How could my code "look up" the value of a variable?    Since this.env is an association list, the assoc method already in your OpenList class is all you'll need. [[But wait, there's more!]] Since you most likely already use assoc in your Quantity class's norm_unit method, all you'll need to so is to pass this.env as the third input to add or as the second input to norm in order to use the values of the defined variables. Neat!

  How do I know whether something is a unit or a variable?    There is no difference! In the above example, x was looked up and m was looked up!! Everything gets looked up -- but only some of the strings are actually in the association list - it's those that get used. The rest are basic, uninterpretable units that are handled as the units in the numerator and denominator. To begin, all variables are simply uninterpretable units.

  What if x gets redefined?    This special case isn't special at all -- simply cons the new binding (two-element OpenList) at the top of this.env. Then, assoc will find the latest, front-most binding, ignoring previous ones!

  Once you have your environment, this.env working, you can replace the default database of units, obtained from Quantity.getSmallDB, with this.env: it becomes a database of units created "on-the-fly." Here is another detailed example of how your language would use create that database. We will only print the env to keep things brief:


  def mile 5280 foot

      The current env is
      [
        [mile, { 5280.0, [foot], [], 0.0 }]
      ]


  def league 0.125 mile

      The current env is
      [
        [league, { 0.125, [mile], [], 0.0 }],
        [mile, { 5280.0, [foot], [], 0.0 }]
      ]


  def mile 1760 yard

      The current env is
      [
        [mile, { 1760.0, [yard], [], 0.0 }],
        [league, { 0.125, [mile], [], 0.0 }],
        [mile, { 5280.0, [foot], [], 0.0 }]
      ]


  where we'd redefined "mile" and updated env at the top; assoc will "do the right thing" by taking that topmost match. The test cases, below, show more examples of this use of the environment... .

Testing your code

We have provided JUnit test cases that should enable you to test your methods.

The following examples are identical to those tested in the JUnit test cases, but you can run them interactively by running the method main in Evaluator.java Here are a pretty extensive list of examples, including the printout of the input line, the tokens, parse tree, value, and - when of interest - the environment association list in this.env each time. They're the same as the parse trees above, but now with the evaluation results.

Assignment 10's tests including evaluation and (when applicable) the this.env environment.

These are the tests we will use in grading the code, so if it passes all of these - perfect!

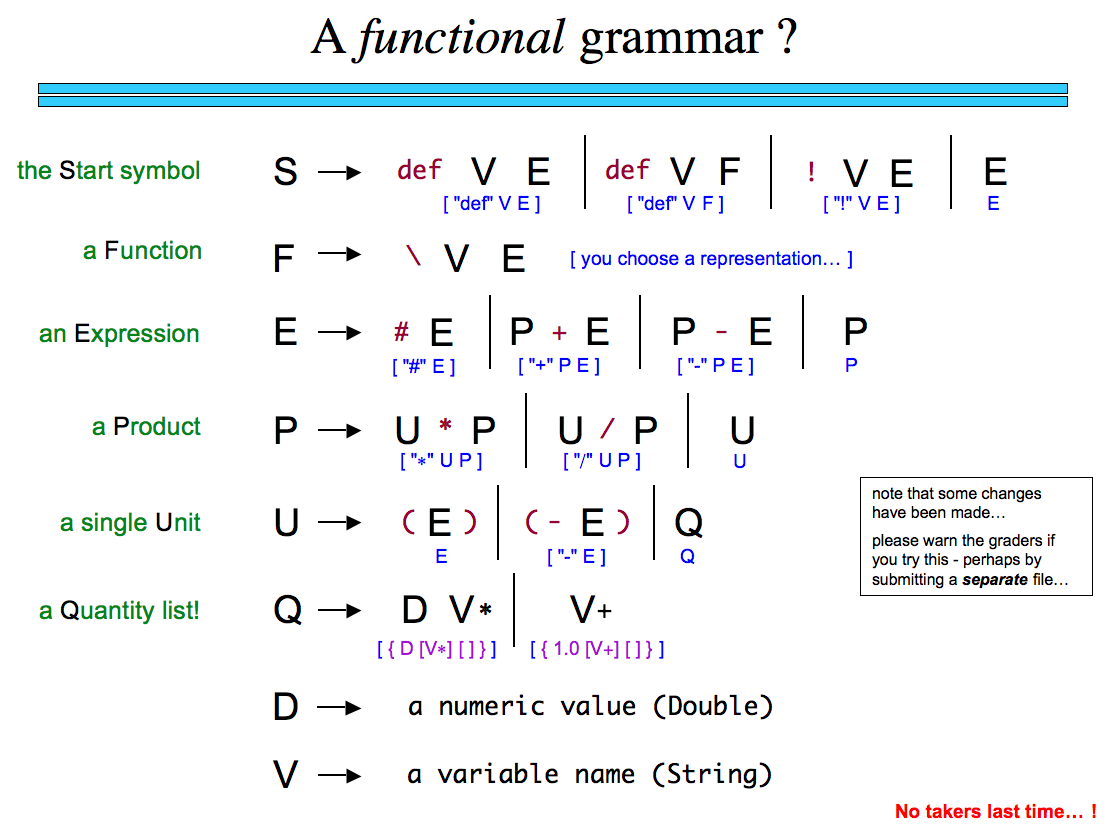

Optional extra credit: personalization or functionalization!

Personalizing For up to +3 (or more) points, improve the unicalc-language with whatever feature you'd like... . Here are the rules, however:

• be sure not to change or break valid statements in the language as specified in the assignment (so we can still grade it!)
• in a comment at the top of Evaluator.java document what you did and how we can test it. Again, give the graders a couple of examples to try.

Functions! For up to an additional +8 points, provide an implementation of functions in the Parser and Evaluator of the unicalc language. How to design and implement this is 100% up to you.

Warning: If you try this, be sure not to edit the only copy of your unicalc language files! -- implementing functions is tricky, and it's happened that people have broken their language in the attempt to do so!

Be sure to work on a copy of your files -- and then, if you submit this, please place those new files into a folder named extra and zip that folder. There is a spot in the submission site to upload extra.zip for this extra-credit challenge.

Be sure to include a comment at the top of your new Evaluator.java on how we could best test your code - give the graders a couple of examples to try!
