Non-Context-Free Languages

The Context-Free Languages include the Regular languages and more, but not all languages are Context-Free.

For example, $\{\ a^nb^n\ |\ n\ge 0\ \ \}$ is Context-Free (but not Regular), but $\{\ a^nb^nc^n\ |\ n\ge 0\ \}$ is neither Regular nor Context-Free.

Similarly, the language $\{\ ww^R\ |\ \ w\in\{0,1\}^{*}\ \}$ of all even-length binary palindromes is Context-Free (but not Regular), but $\{\ ww\ |\ w\in\{0,1\}^{*}\ \ \}$ is neither Regular nor Context-Free.

This makes a certain intuitive sense; $a^nb^n$ is context free because a PDA can use the stack to store the $a$ ’s, and then match them up with the $b$ ‘s. But $a^nb^nc^n$ is not context-free because once we’ve matched the $a$ ’s with the $b$ ’s, the stack is empty and we don’t know how to check the number of $c$ ‘s.

But that’s not a proof; how do we know there’s no cleverer way to store $a$ ’s on the stack that lets us match the number of $b$ ’s and $c$ ’s? To get a proof, we need to find a property shared by all context-free languages, and then show that the $a^nb^nc^n$ lacks that property.

CF-Pumping

There is no nice analogue of “Distinguishable Strings” for context-free languages. but context-free languages still have a property similar to (but slightly different from) the pumping property of regular languages, and so there is a pumping lemma for context-free languages.

Definition

Given a language $L$ and a “pumping length” $p\geq 1$ ,
we say a string $s\in L$ (with $|s| \geq p$ ) can be CF-pumped if

(there are substrings $v$ and $y$ inside $s$ )

$s = uvxyz$
( $v$ and $y$ not both empty, not far apart)

$vy \not= \epsilon$ and $|vxy| \leq p$
( $uxz$ , $u\underline{v}x\underline{y}z$ , $u\underline{vv}x\underline{yy}z$ , … all in $L$ )

$uv^ixy^iz \in L$ for every $i\geq 0$

Example

If $L := \{\ a^nb^n\ |\ n\geq 0\ \}$ and $p := 4$ ,
then $~~s:= \mathrm{aaabbb~~}$ can be CF-pumped.

There are many ways to show this, including

Set $u=\mathrm{a}$ , $v=\mathrm{a}$ , $x = \mathrm{ab}$ , $y:=\mathrm{b}$ , and $z=\mathrm{b}$
Set $u=\mathrm{a}$ , $v=\mathrm{aa}$ , $x = \epsilon$ , $y:=\mathrm{bb}$ , and $z=\mathrm{b}$
Set $u=\mathrm{aa}$ , $v=\mathrm{a}$ , $x = \mathrm{bb}$ , $y:=\mathrm{b}$ , and $z=\epsilon$

In all cases $|vxy|\leq 4 = p$ and $uv^ixy^iz\in L$ for every $i\geq 0$ .

The Pumping Lemma for Context-Free Languages

The utility of this definition comes from the following fact:

Lemma (Pumping Lemma for CFLs)

If $L$ is a context-free language, then there exists $p\geq 1$ such that every string $s\in L$ with $|s|\geq p$ can be CF-pumped.

More importantly the contrapositive holds; if for every $p\geq$ there is a string $s\in L$ with $|s|\geq p$ that cannot be CF-pumped, then $L$ is not context-free.

Example

The language $L := \{\ a^nb^nc^n\ |\ n \geq 0\ \}$ is not context-free.

Proof.
Let $p \geq 1$ be given.
Put $s := a^pb^pc^p$ . Note that $s\in L$ and $|s|\geq p$ .
To show: $s$ is not CF-pumpable.
Let $s := uvxyz$ be any partition of $s$ into five parts with $vy\not=\epsilon$ and $|vxy|\leq p$ .\

There are five cases for $vxy$ :

$vxy$ contains all $a$ ’s;
$vxy$ contains all $b$ ’s;
$vxy$ contains all $c$ ’s;
$vxy$ contains $a$ ’s and $b$ ’s;
$vxy$ contains $b$ ’s and $c$ ’s;

$vxy$ cannot contain $a$ ’s and $b$ ’s and $c$ ’s, because $|vxy|\leq p$ and the $a$ ’s and $c$ ’s have $p$ $b$ ’s in-between them. In all five cases, it is clear that $uv^2xy^2z$ will increase the count of one or two letters (whatever letters occur in $vxy$ ) but not all three, and so $uv^2xy^2z\not\in L$ .\

Thus no partition works to pump $s$ .
By the Pumping Lemma for Context-Free Languages, $L$ is not regular.

Example

The language $L := \{\ ww\ |\ \ w\in\{0,1\}^{*} \}$ is not context-free.

Proof.
Let $p \geq 1$ be given.
Put $s := 0^p1^p0^p1^p$ . Note that $s\in L$ and $|s|\geq p$ .
To show: $s$ is not CF-pumpable.
Let $s := uvxyz$ be any partition of $s$ into five parts with $vy\not=\epsilon$ and $|vxy|\leq p$ .\

There are three cases for $vxy$ :

$vxy$ is entirely in the first half of $s$ ; then $uv^2xy^2z\not\in L$ because we have changed the first half but not the second half of the string, and $uv^2xy^2z$ does not have the form $ww$ ;
$vxy$ is entirely in the middle ( $1^p0^p$ ) part of $s$ ; then $uv^2xy^2z\not\in L$ because we have changed the number of 1’s in the first half and/or the number of 0’s in the second half, and $uv^2xy^2z$ does not have the form $ww$ ;
$vxy$ is entirely in the second half of $s$ ; then $uv^2xy^2z\not\in L$ because we have changed the second half but not the first half of the string, and $uv^2xy^2z$ does not have the form $ww$ .

The fact that $|vxy|\leq p$ rules out any other possibility.

Thus no partition works to pump $s$ .
By the Pumping Lemma for Context-Free Languages, $L$ is not regular.

Extra: Justifying the Pumping Lemma for CFLs

We don’t need to know the proof of the Pumping Lemma for CFLsin order to use it effectively. But it is not hard to see why it is true, once you know the trick.

Lemma (Pumping Lemma for CFLs)

If $L$ is a context-free language, then there exists $p\geq 1$ such that every string $s\in L$ with $|s|\geq p$ can be CF-pumped.

Proof.
Suppose $L$ is a context-free language with grammar $G=(\Sigma,{\cal V},S,{\cal R})$ .

Then there is a value $p$ (depending on the number of nonterminals $|{\cal V}|$ in the grammar and the maximum “branchiness” of parse trees in this grammar) such that every string $s$ with $|s|\geq p$ is so long, that its parse tree is so tall, that there is a path with at least $|{\cal V+1}|$ nonterminals.

By the Pigeonhole Principle, this means that given an arbitrary $|s|\geq p$ , a parse tree for $s$ has a path where some nonterminal $R$ appears more than once:

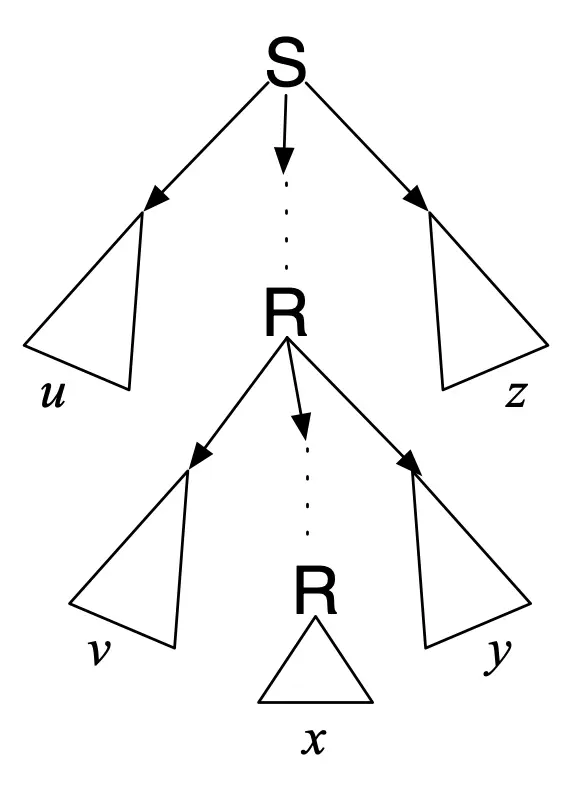

Parse tree for uvxyz; a path contains R twice

So there is a big legal subtree with $R$ at the root, and a small legal subtree with $R$ at the root.

When a parse tree contains a node $R$ , any valid subtree (anything the grammar allows us to derive from $R$ ) can appear below it. It follows (by “tree surgery”) that infinitely many other legal parse trees must exist, including:

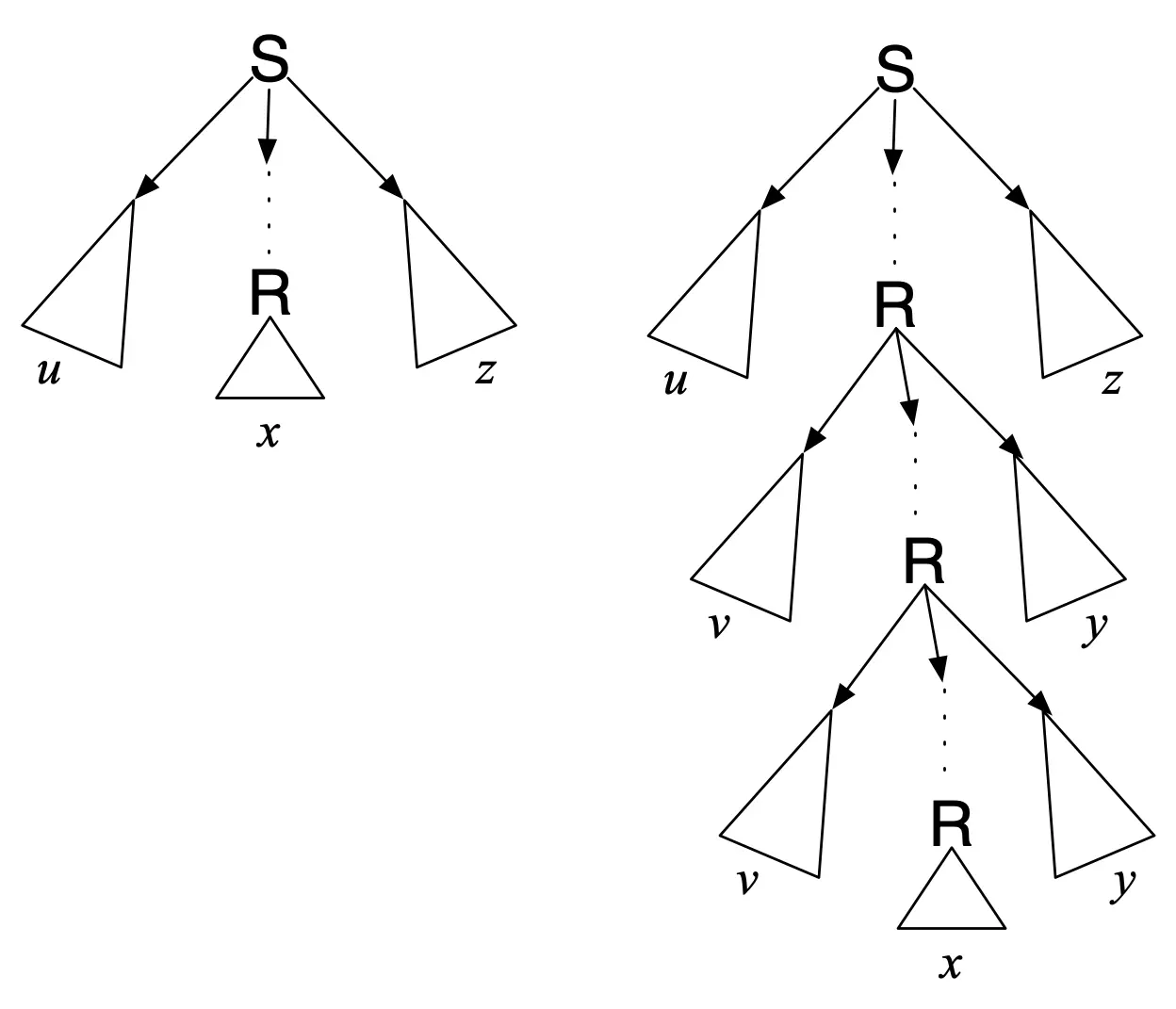

Parse trees for uxy and uvvxyyz

Since these are all valid parse trees, the corresponding strings (of the form $uv^ixy^iz$ ) must also be in the language $L$ .
