Computer Science 154
Lab Project #1

Rug Warriors

Ryan Gibson, Paul Ruvolo, Conor Sen

  1. Introduction
  2. The purpose of this project is to familiarize ourselves with the Rug Warrior robot and its capabilities by programming the robot to perform a various number of tasks utilizing its sensors (touch, light, IR, sound) and motor controls. Once we have gaged the capabilities of Rug Warrior, we wish to program the robot to simply follow the edge of a wall (through the use of its touch and IR sensors) for a finite distance.

  3. Approach

    Our initial approach is to familiarize ourselves with the Rug Warrior's programming environment (Interactive C). From there, we intend to write a series of simple programs that will allow us to asses the extent of the robot's ability to interact with its physical environment. To do so, we will test the robot's:

    • motors -- can we easily get it to move in a straight line?
    • encoders -- if we want the Rug Warrior to move forward 12 inches, will it do so accurately?
    • touch sensors -- how sensitive are they and how well do they work in combination (there are 3 spaced evenly along the circumference of the robot)
    • light sensors, IR sensor, sound sensor -- again, just how sensitive are they?

    Once we have become familiar with the Rug Warrior and its capabilities, we intend to write a program in Interactive C that will enable the robot to follow walls in an indoor environment through the use of the robot's sensors (primarily touch and IR).

  4. Progress
  5. Week 1

    We began by familiarizing ourselves with the Rug Warrior. We came across a large stumbling block when we were unable to locate the cable that connects the robot to a computer. We could not find another identical cable in the lab because the cable we needed was unusual -- one end of it is a standard telephone line connector, and the other connects to a serial port. We ended up soldering our own cable according to the schematic in the manual. We did this by first taking the female end of a serial connector and soldering wires to six of the connectors. We braided three of those together, then joined these "four" wires to an exposed end of RJ 11 cable, as shown in Figure 1. Having to deal with this cable construction impeded our progress in another way because we could not use the Interactive C software until the program recognized the connection between the PC and our Rug Warrior.

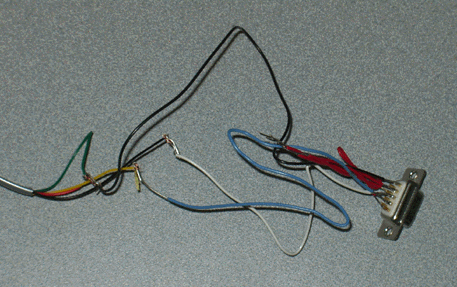

    Figure 1 -- Our first attempt at the Rug Warrior cable

    At this point, we do not know for sure whether or not our cable is functional. It checks out fine on a voltmeter, and when we try to send information from the PC to the robot it appears to be transmitting, as indicated by a data LED on the robot, yet the information is not getting processed on either end. Our current plan is to go to RadioShack, build a cable that we can have more confidence in, and go from there.

    Week 2

    As planned, we purchased a DB9 to RJ11 (both female) adaptor from RadioShack and attempted to create another cable to bus data from the computer to the Rug Warrior (see Figure 2). After a night's work getting all the wiring set up, we were still unable to get a proper connection working. With that, we were ready to give up on the project entirely and move on to something else. Thankfully, Professor Dodds and Daniel Lowd took a look at our cable and attempted to download the Rug Warrior operating system code (termed "pcode" by the manufacturer) onto the robot. Turns out our cable worked after all and we simply didn't download the pcode properly. With that, we were finally free to run code on the Rug Warrior.

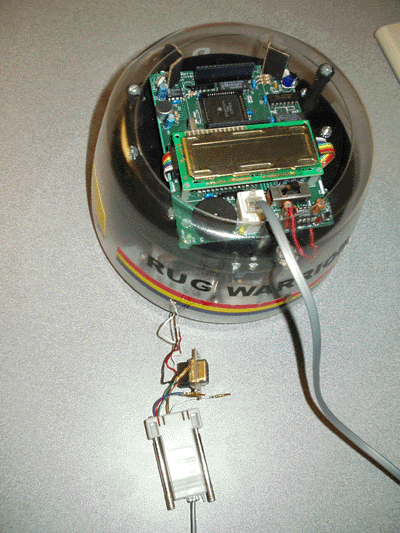

    Figure 2 -- Our second attempt at the Rug Warrior cable

    Because we got the cable working so late in the week, we had a limited amount of time to familiarize ourselves with the operation of the Rug Warrior through the use of Interactive C programs. We began by running through several of the diagnostic and demonstrative programs provided with the Rug Warrior's Interactive C package. After downloading and running each of the programs, we were able to verify that each of the robot's sensors functions properly. This also allowed us to gain a cursory understanding of how to read each of the robot's sensors through the interactive C code.

    After running through each of the diagnostic programs, we learned firsthand of the Rug Warrior's limited capabilities. For example, when the yo-yo.c code is uploaded onto the robot, the Rug Warrior is programmed to move forward a set distance when its rear touch sensors are bumped and then return to its original place. However, the robot seems to have trouble moving in a straight line because the motors controlling the left and right wheels are not exactly the same. So, the robot tends to move in more of an arc than a straight line; and it doesn't always return to the same spot because of these inconsistencies in the motor control.

    Our goal for the next week of the lab is first to find a way to make the robot move in a true straight line. We will then perform further tests on the robot's touch and IR sensors since these will be utilized in the actual wall-following behavior. The next logical step will be to write the wall-following code and test it on the Rug Warrior.

    Week 3

    Due to the delays in our project caused by the malfunctioning cable, we stripped down our goal for week 3. Instead of getting the robot to map out its environment and return home, our objective was simply to get our Rug Warrior to follow walls. The first problem we encountered dealt with the robot's power system. The batteries were low, so we had to purchase more. When we replaced the batteries, we noticed that part of the battery holder had broken off, and while the coil that connected the robot to the battery was still there, it did not have a "back" to push against, causing the connection to be interrupted if we were too rough with the robot (for instance, dropping the robot from more than one inch above the ground).

    The far more persistent problem that we ran into dealt with the Rug Warrior's motors. As mentioned previously, the two wheels, by default, do not move with the same speed. We found out that this is due to the wiring of the robot, which gives each wheel a slightly different amount of power. One of the files provided to us allows the user to modify this "drive bias," and on Wednesday in the lab we got the robot to move in a straight line on the lab's rug floor.

    Inspired by the yo-yo program given to us, we devised a design idea for following walls. Using a "left wall" by default, we would start the robot travelling parallel to the wall. If the robot did not bump into a wall after a specified amount of time (say, five seconds), we would adjust the robot's path so that it aimed closer to the wall. This accounts for the potential problem of a one-walled universe where the robot could travel away the wall forever. Since the robot will eventually crash into a wall, we will have it back out, turn a little bit away from the wall, and then continue forward again.

    Once again, we found that this was not as easy as it seemed. First, we noticed that the drive bias required on the tile floor in the hallway was different from the drive bias on a rug. This had a simple solution, but then we observed that the motors were causing the problem, not the bias. We wrote a program that made the Rug Warrior drive forward, sleep for a short while, and then drive forward again, which resulted in the robot travelling in mostly random arcs that had a clockwise bias. When examined, we saw that a plastic circular piece that sat on the inside of each wheel connected to the axle was detached. On the second Rug Warrior that we had not tested, the piece was adhered to the wheel. We theorized that this piece was somehow getting stuck on one of the wheels, causing the strange bias.

    Since this seemed to be an impossible problem, we tried our code on the second Rug Warrior. We found that this one performed much more predictably, and after steadying the battery connection and removing hair from the wheels, got the robot to follow walls. The algorithm we used was essentially the same as the one described above. After two movement segments, if the robot had not collided with a wall it adjusted its direction to point towards the left wall. We did run into the problem, however, of the robot getting stuck in corners.

  6. Perspective
  7. Overall, our system performed as desired. In the end, we were able to program the Rug Warrior to follow the edge of a straight wall through the use of its touch sensors alone. Our basic wall following algorithm used two main processes. The first process, the wall-sensing process, waited to receive input from the Rug Warrior's touch sensors. When the sensors were activated (i.e. a wall was hit), this wall-sensing process sends a signal to our second process, the motion control process. The motion control process incrementally moves the robot in a forward direction until a touch sensor is activated. At this point, the robot will reverse direction and rotate away from the wall it hit. Additionally, if the robot has not encountered a wall for a specified period of time, the robot adjusts its heading toward the last wall it encountered. Our architecture is loosely based on Rodney Brook's subsumption model. In AI through Building Robots Brooks explains the basic idea of subsumption.

    "Each behavior should achieve some task. I.e., there should besome observable phenomenon in the total behavior of the system which can be used by an outside observer to say whether the particular sub-behavior is operating successfully" (Brooks).
    Our algorithm has two clear sub-behaviors. One is avoiding obstacles, the other is maintaining a path that is roughly parallel to the wall. Each of these can easily be seen by someone observing the Rug Warrior in action.

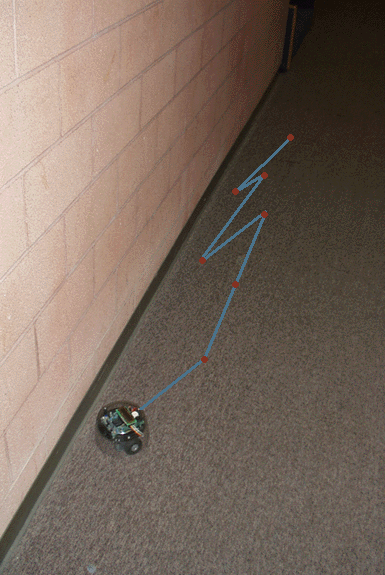

    Figure 3 -- A simple illustration of the Rug Warrior's wall-following path

    The robot had difficulty, however, when it encountered corners as it tended to drive itself directly into the corner when both of its front sensors were activated. The reason our algorithm fails in this case has to do with oscillations between the left and right sensors being activated. The robot will continue to turn back and forth and never make any progress as the left and right touch sensors are activated in alternation. This is a potential area of improvement for our project. The robot could keep track of the past state of its sensors. If the left and right sensors have been activated too many times in a row, then the robot would execute a behavior to free itself from the corner. This would involve a departure from the subsumption architecture described earlier. This new model would most be best implemented with Three-layer architecture. Gat describes the role of internal state in the three-layer architecture.

    "Three-layer architectures organize algorithms according to whether they contain no state, contain state reflecting memories about the past, or contain state reflecting predictions about the future" (Gat).
    In order to deal with corners we would have to appeal to Gat's second case. That is we would have to retain state about the past number of oscillations between left and right sensors in order to detect that we are stuck in a corner.

    Our algorithm also has problems dealing with the opposite scenario. That is, if the robot is following a wall and this wall turns sharply away from the robot's current heading, the robot will have difficulty finding its way back to the wall. Currently, the algorithm causes the robot to overshoot the turn because it does not turn sharply enough to find its way quickly back to the wall. On the other hand, if the robot were to turn too sharply, the algorithm runs the risk of turning the robot around in the opposite direction.

    One limitation of the Rug Warrior is its circular shape. Might a different shape be more suited to the operating in an maze-like environment? Perhaps, a better suited shape would be one that would easily navigate its way out of corners. The best possible shape would be one that changes dynamically. This idea is presented in the Get Back in Shape article by Yoshida and company. The robot described in this paper uses small robotic cells to create arbitrary two-dimensionally shaped robots. Obviously, we are not considering this for our next robotics project! However, it is an intriguing possibility. The premise being that not having a priori knowledge of the environment your robot will be operating in necessitates great flexibility not only in behavior but also in physical configuration.

    We decided not to utilize its IR sensors because they pick up a large amount of noise from the surrounding environment. However, we do feel that additional sensing would improve the capabilities of the Rug Warrior. In particular, we feel a vision system would allow the Rug Warrior to navigate, generate accurate maps, and possibly allow coordination with other Rug Warriors. The fact of the matter is that with the Rug Warrior's current sensing equipment generating an accurate map of the environment would be extremely difficult, as would coordinating multiple Rug Warriors to accomplish a task.
