How to Use Jane 4

To use Jane, begin by downloading the .zip file available from the main page. Once you have unzipped it, there will be a jar file in the Jane folder. To run Jane, use the command java -jar Jane.jar. On some machines, you can simply click or double-click on the Jane.jar icon.

There is also a command-line version of Jane included in the download. This version of Jane is particularly useful for conducting large-scale experiments controlled by scripts. More details on this option are given at the end of this tutorial in the CLI section.

If Jane crashes on your computer, see the F.A.Q. for help.


  1. Getting Started with Jane
  2. Tree Builder Tutorial
    1. Welcome to the Tree Builder
    2. Add Child Mode
    3. Label Mode
    4. Link Mode
    5. Move Mode
    6. Time Zones Mode
    7. Regions Mode
    8. Erase Mode
    9. Clear Mode
    10. Load to Solver
  3. The Jane Settings Menu
    1. Set Costs
    2. Set Host Switch Parameters
    3. Set Polytomy Parameters
    4. Set Advanced GA Parameters
  4. Solve Mode Tutorial
    1. Getting Started Solving
    2. The Solution Table
  5. Solution Viewer Tutorial
    1. Viewer Basics
    2. Support Values
    3. Viewing Polytomies
    4. Modifying Solutions
    5. Saving and Retrieving Solutions
  6. Stats Mode Tutorial
    1. Configuring Randomization Tests
    2. Viewing Randomization Results
  7. Command Line Tutorial

Getting Started

When the graphical version of Jane is opened, the Main Window is displayed.

Main Window

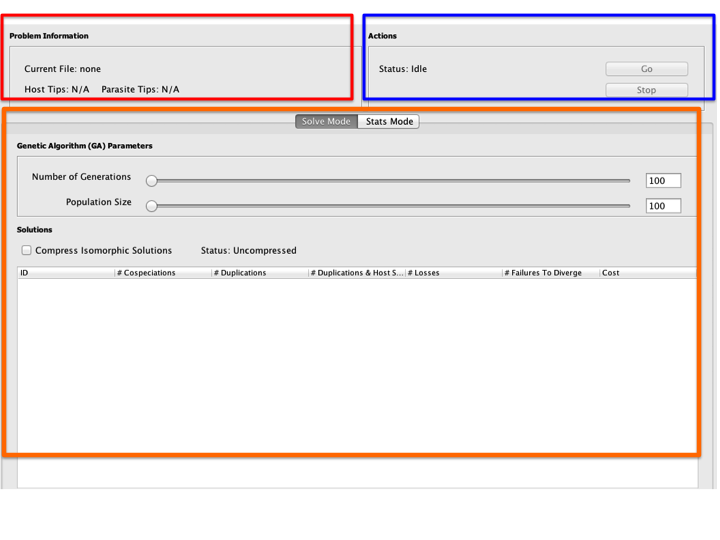

The Main Window consists of the parts listed below.

The minimum amount of data that Jane needs is a pair of phylogenetic trees (henceforth called the "host" and "parasite" trees, but in practice these can be any pair of trees such as a species tree and gene tree, or otherwise) and a mapping between the tips of these trees. The mapping need not be one-to-one. Jane permits multiple parasites to be mapped to a single host tip and for a single parasite to be on multiple host tips.

Such data can either come from a text file in .tree or .nex formats or you can draw a pair of trees and their tip mappings using Jane's graphical user interface "tree builder" feature (which are later saved in one of these two formats). For information on the two file format types, please refer to the file formats page.

To load in an existing text file, select the File menu and selection Open Trees. Now you can browse for files and load them into Jane. We'll come back to what to do once a file is loaded, but first we'll look at the tree builder tool.

Back to Top

Welcome to the Tree Builder

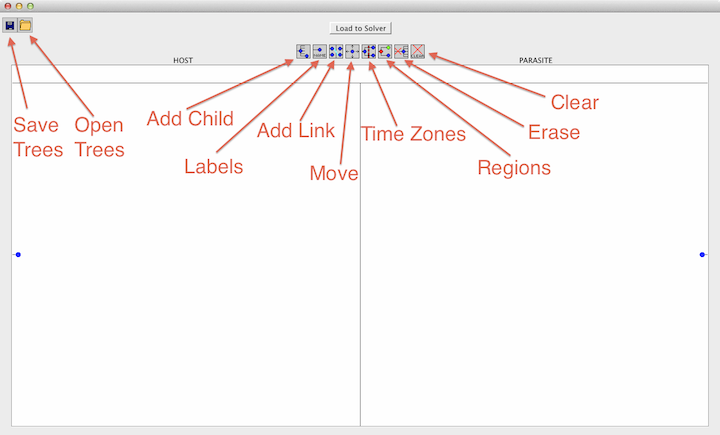

Getting Started with the Tree Builder

You can either build a tree from scratch or load in a tree in .tree or .nex format. The tree builder has the ability to load in both completely specified and partially specified trees (e.g., only the host tree, only the parasite tree, both trees but not the tip alignments).

To load a tree you can either select "Open..." from the File menu or click the open button in the top left corner and then navigate to the desired tree. When saving the tree, you have the option of saving in either .tree or .nex formats. However, the .nex format does not support multi-host parasites or region information.

Add Child Mode

To add nodes to the tree you can select the "Add Child" button to switch to Add Child Mode. Once in Add Child Mode you can click on any node to add a child. If the node is currently a tip this will add two children to the node. If the node is an internal node, it will add one additional child with each click to create a polytomy.

Label Mode

To assign names to the nodes you can switch to Label Mode by selecting the "Labels" button. Once in Label Mode simply click the node you would like to name and type the name in the box that appears. Jane does not support the naming of internal nodes. Additionally, integer names are not permitted.

To create a tip mapping between the host and parasite trees you can switch to Link Mode by selecting the "Add Link" button. To add a link the click one of the nodes and drag to the node in the other tree or click one node and then the next. When clicking on a tip node in Link Mode only that node's links will appear in blue and all other links will appear greyed out. Jane supports both failure to diverge events and multi-host parasites so parasite and host nodes can have multiple links.

Note: Multi-host parasites are only supported in .tree files.

Move Mode

Move Mode can be used to rearrange the order of tree branches that contain a lot of crossing or cluttered links. Once in Move mode you can rearrange horizontal edges by selecting an edge and dragging up or down to uncross links. If the host and parasite tips are too close together to clearly distinguish the links the tips can be moved apart by placing the cursor in line with the tips and dragging left or right until the desired spacing is reached.

Time Zones Mode

Jane supports an option called "time zones." If you have included time zone information, this information provides constraints that indicate that certain nodes (speciation events) in a tree happened before other nodes. Time zones can be represented as a collection of vertical lines across a tree. Nodes that appear on different sides of a vertical line cannot have occured at the same time, and thus host switch events between them are not permitted.

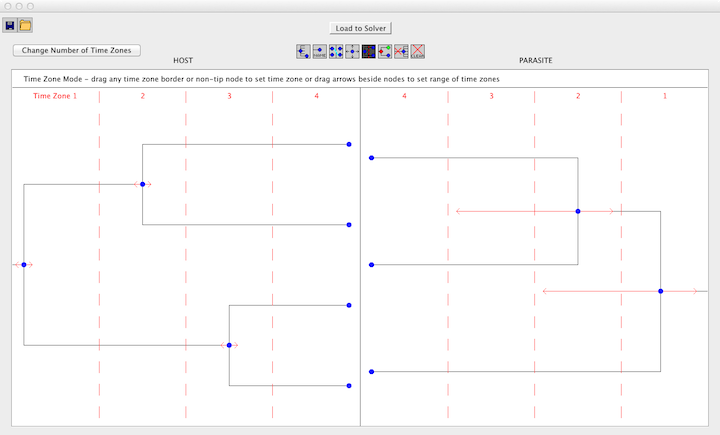

To add time zones, select the "Time Zones" button and enter the desired number of time zones. If, after adding time zones, you wish to change the number of time zones, click the "Change Number of Time Zones" button in the upper left corner and enter the new number of time zones. After entering the number of time zones, the time zones will be separated by dashed red lines. To set the time zone for a node, drag the node into the desired time zone. Tips must occur in the last time zone. Each node will have a red arrow on either side, drag these arrows into another time zone to set a region of time zones for the node.

Note: If any time zones are specified then all the specified time zones must be used in the host tree.

Regions Mode

Jane also supports the option of specifying that certain nodes are in a common "region" (e.g. a geographical region). Once regions are specified, the cost of a host switching event between two different regions can be set to any value. In this way, differential "penalties" can be imposed on duplication with host switch events from one region to another. Specifically, the duplication with host switching cost is computed as the general duplication with host switching cost plus the region-specific host-switching cost.

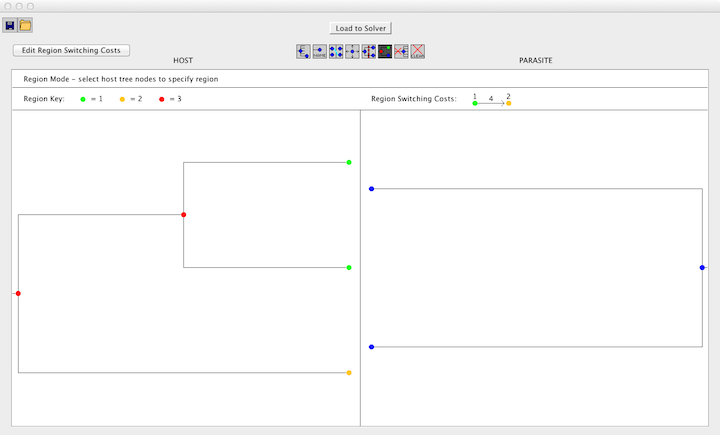

To add regions, switch to Regions Mode by clicking the "Regions" button. Once in Regions Mode, drag to select a set of nodes and enter a number for the region. When a node is assigned a region, the region will appear in a key above the trees and the node will change to the corresponding color. Once regions have been assigned, region switching costs can be set by selecting the "Edit Region Switching Costs" button and enter the desired cost. A switch from one region to another will be the sum of the baseline host switch cost (user-definable in Jane as described later in this tutorial) and the additional inter-region host switch cost. A cost of "i", indicating "infinity," can be used to prevent all host switching between two regions. The region switching cost will be displayed next to the region key.

Note: All nodes default to Region 0 and when assigning regions they must all be in Region 0 or a region greater than 0.
Note: Regions are not supported by the .nex format.

Erase Mode

Erase Mode can be used to remove a node or link. Simply switch to Erase Mode using the "Erase" button and click the node or link you would like to remove. Removing an internal node will cause its descendant subtree to be removed. If a node has two children and one of those children is removed, then both children will be removed.

Clear Mode

Clear Mode can be used to remove an entire tree. Simply click either the parasite or host tree to clear that tree. If both trees are cleared, timezone and region information will be cleared as well.

Load to Solver

Once the trees have been completed, the "Load to Solver" button can be used to save the file and open it in the main Jane interface. If you have not yet saved the file you will be prompted to do so and then the file will open in the main interface where it can be run in Solve Mode or Stats Mode.

Back to Top

The Jane Settings Menu

Now we are back at the main Jane page. At the top of that page, you will see three pull-down menus labeled File, Settings, and Solve Mode Options. We have already seen the File menu; this is how you import files or launch the tree builder. now turn to the Settings Menu. This menu is used to set parameters relating to how Jane computes host-parasite reconstructions.

Set Costs

You can set the costs of each type of event: Cospeciation, duplication, duplication with host switch, loss, and failure to diverge.

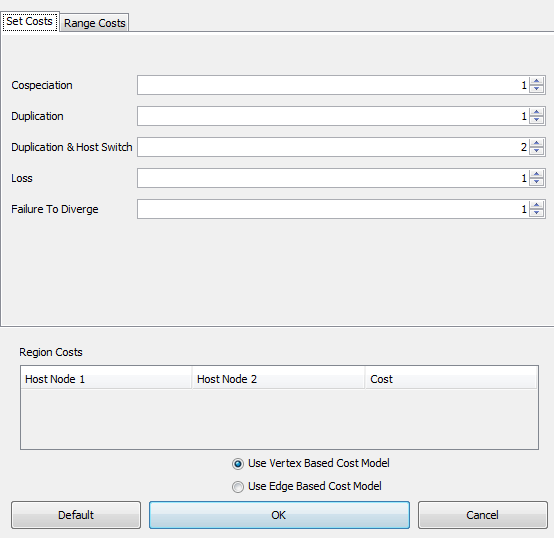

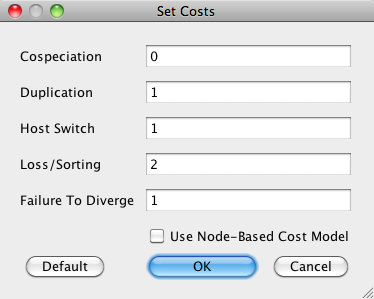

To change the costs of events, select the "Set Costs" Option in the Jane Settings menu. As seen in the image below, the menu has the events listed with a box next to each. To change the cost of an event, simply enter the desired cost into the box next to the event name, or use the arrows next to the box. Jane requires event costs to be integers. Note that if you wish to have higher precision, you can simulate this by simply scaling up the costs (e.g., costs of "100" and "101" are analogous to "1.00" and "1.01").

Because it can often be difficult to accurately estimate the relative costs of events, Jane also supports solving for ranges of costs. For example, we might specify that cospeciations cost 0, duplications cost between 1 and 3, duplications with host switch cost between 3 and 5, etc. Jane will then compute solutions for every combination of costs in the given ranges and you can later browse through these combinations of costs to see the best solutions found for each.

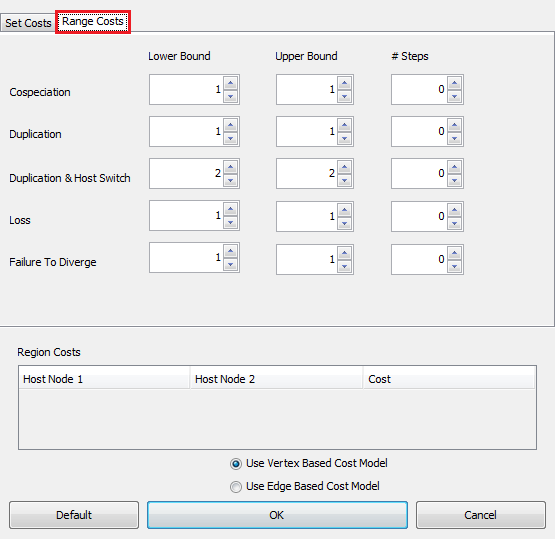

To use this feature, select the "Range Costs" tab as seen in the image below. This tab allows you to select the range of costs Jane should find solutions for. Note that Jane's running time will increase based on the number of possible combinations of costs that can be made from the ranges given.

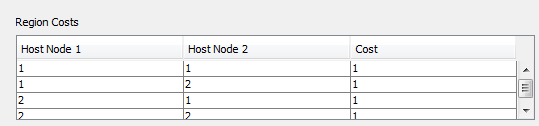

The "Region Costs" section at the bottom of the "Set Costs" dialog allows you to change the cost of duplication with host switch events between regions if the tree being solved has region information.

Set Host Switch Parameters

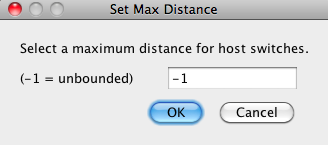

In addition to regions, which allows for customized host switching costs between different groups of nodes, Jane also allows you to completely prohibit any host switches between parts of the tree that are "too far apart." Specifically, the "Set Host Switch Parameters" option of the Settings menu allows you to set a maximum distance on host switches. Jane will not allow a host switch to occur if the graph theoretic distance between two nodes along the edges of the tree is greater than the given value.

Set Polytomy Parameters

Jane inteprets polytomies (multifurcations) as soft polytomies - polytomies that should be ultimately resolved into a sequence of bifurcations. Jane attempts to resolve polytomies in both the host and parasite trees in a way that minimizes the total cost of the resulting cophylogeny reconstruction.

You have control of two options in the "Set Polytomy Parameters" menu. The "Ensure Sequential Resolutions" option (default) ensures that the resolution of each polytomy results in bifurcations that occur in "rapid succession" so that no other speciation events in any part of the tree occur in time between two bifurcations of that resolved polytomy. In contrast, by turning off this option, a soft-polytomy can be resolved into a sequence of bifurcations that occur "slowly" in the sense that other events in the tree can be temporally interleaved with these bifurcations. The two options can result in slightly different solutions.

Similarly, you can toggle the "Prevent Mid-Polytomy Events" option. If this option is on (default) then there cannot be duplication or host switch events involving the edges that are created to resolve the polytomy into a sequence of bifurcations.

Set Advanced Genetic Parameters

Most users will never touch this menu option. But, if you are curious or want to adjust the way that Jane searches for solutions, read on.

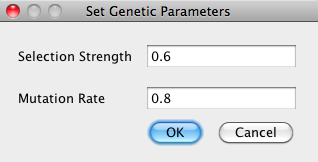

The Settings > Set Advanced Genetic Parameters can be used to set the mutation rate and the selection strength used in the genetic algorithm. The mutation rate is a value between 0 and 1, with 0 being never mutate and 1 being always mutate. The selection strength has minimum value 0, which corresponds to a randomly selected population, and there is no upper bound for this parameter. Most users find that the default parameters work well and choose not to adjust the values of these parameters.

Back to Top

Solve Mode

In Solve Mode, Jane finds good reconstructions of the parasite tree onto the host tree and permits you to view those reconstructions. When Jane is run, Solve Mode is selected by default. Solve Mode may be reached from Stats Mode by simply clicking Solve Mode tab on main window. Click the Go button in the Actions box to run the genetic algorithm and search for a good embedding.

Genetic Algorithm (GA) Parameters

Jane finds low-cost associations between the host tree and the parasite tree by generating many random relative timings of the internal nodes of host tree and solving for the optimal association, then applying a genetic algorithm to modify timings and generating new host timing candidates.

In a genetic algorithm, there are two main control parameters called "population size" and "number of generations". These are parameters related to the inner workings of the algorithm and have nothing to do with the populations being studied in the host/parasite system. In a nutshell, the "population size" is the number of different solutions being considered at each iteration of the algorithm and the "number of generations" is the number of iterations performed by the algorithm as it seeks a good reconstruction of the parasite tree onto the host three.

Choosing larger values for these two parameters generally leads to better solutions, up to some point where increasing the values further makes no difference. However, increasing these parameters will cause computation to take more time. While some experimentation with these parameters will be required of you, see the parameters page for more information and advice about selecting appropriate values.

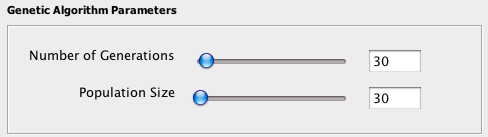

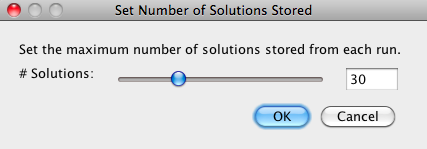

The population size and number of generations can be set by using the slide bars or inputting the number manually in the Genetic Algorithm Parameters box under the Solve Mode or Stats Mode tab. Note that these parameters are separate for each mode, so changing the parameter in one mode will not affect the parameters in the other mode.

The Solution Table

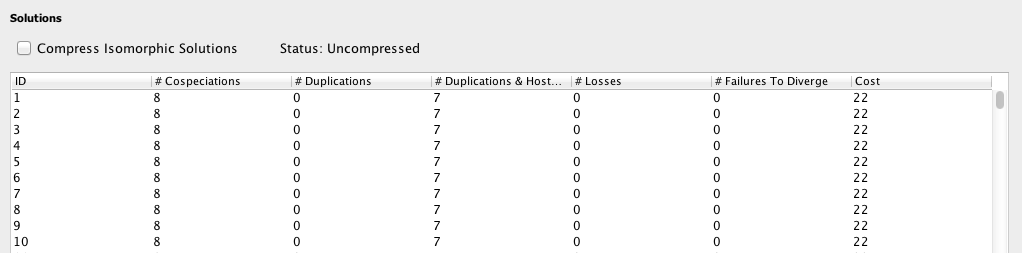

The Solution Table displays the list of information about each solution found in Solve Mode, including the number of occurrences of each event and the total cost.

As you will see in a moment, many of the solutions that Jane finds will appear to be identical. In fact, while the solutions may look identical, they are based on different "timings" or relative orderings of the speciation events in the host tree. To compress these apparently identical solutions so that only truly distinct solutions are presented, check the Compress Isomorphic Solutions button.

After clicking Go in Solve Mode, Jane finds new solutions. The best solutions found will be added to the Solution Table.

Range Costs

As noted earlier, you can set a range of costs for each event type in the Settings > Set Costs menu. You might choose, for example, to have cospeciations to cost 0, duplications range in cost from 1 to 3, etc. In this way, you can explore the impact of costs on the solutions that Jane finds.

If you choose this option, Jane will display the following type of pull-down menus above the solution view. You can then select any combination of costs. Note that Jane completely recomputes the solutions when you click on a new cost, so this may take a bit of time to re-solve. Be patient.

Because a large number of different best solutions may be found in every run, you can specify the number of solutions saved by going to Solve Mode > Adjust Number of Solutions and entering the maximum number of host timings to be kept for each run.

To view a solution, simply double click at a solution in the table. A new Solution Viewer window will pop up. The usage of Solution Viewer is described below. To clear the table, go to Solve Mode Options > Clear Table to erase all information in the table.

Back to Top

Solution Viewer

To open a Solution Viewer, simply double-click on one of the solutions to bring up a Solution Viewer, like the one shown below.

Viewer Basics

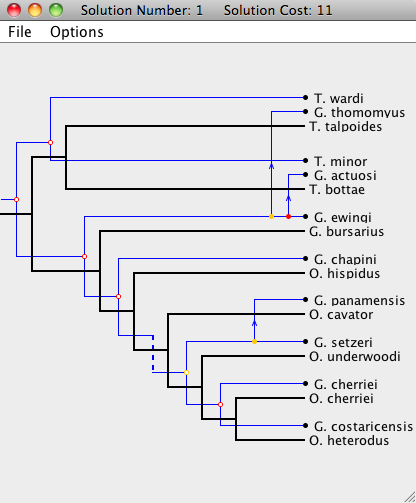

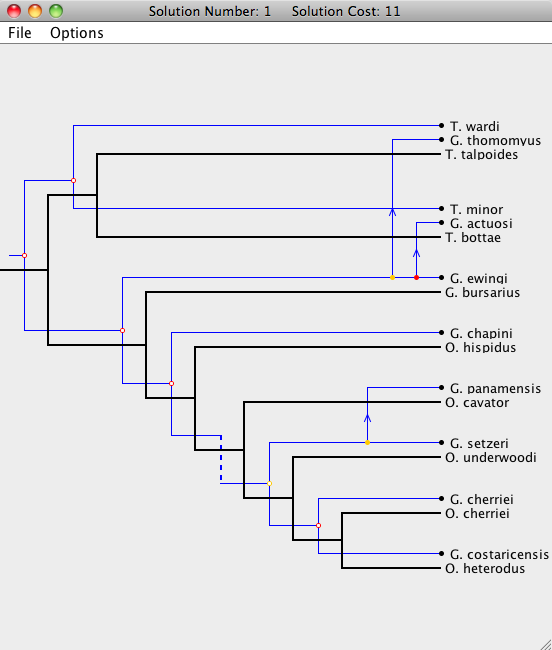

In the Solution Viewer, the host tree is drawn in black and the parasite tree is drawn in blue. There are five types of events: cospeciation, duplication, host switch, loss, and failure to diverge. For more information about Jane's cost models, see the Cost Model and Event page.

The Solution Viewer will render each event as follows:
Cospeciation: A Cospeciation is marked by a hollow colored circle.
Duplication: A Duplication is marked by a solid colored circle.
Duplication with Host Switch: A Host Switch is marked by a duplication, with an arrow following the trajectory of the switching species.
Loss: A Loss is marked by a dashed line.
Failure To Diverge: A Failure to Diverge is marked by a jagged line.
Additionally, if the mouse cursor is hovered over a parasite node, the event type will appear.

Notice that each node in the parasite tree is marked with a colored circle. The colors indicate the existence of other possible locations for the association. A green node means there is a location of lower cost where the parasite node and its descendants may be mapped. A yellow node indicates that there is another location of equal cost, and a red node means that all other locations it may be mapped to are of higher cost. To view this information from within Jane, go to Options > Show Key while in the Solution Viewer.

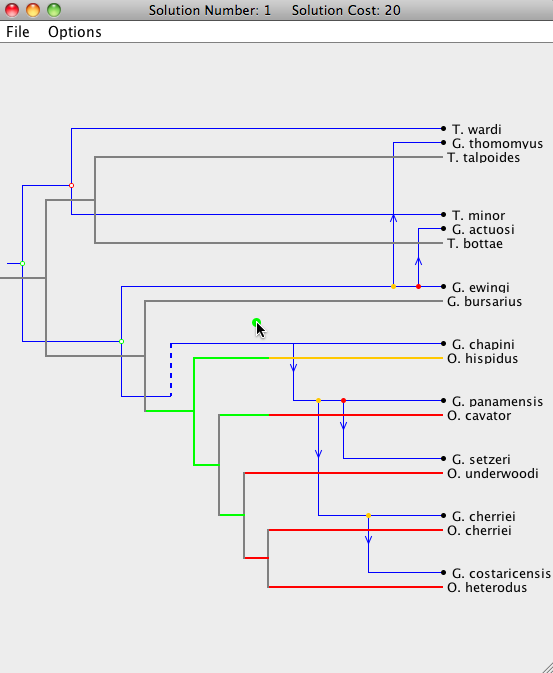

Each parasite node can be dragged to a new position, as long as that position leads to a possible embedding of the parasite tree on the host tree without requiring changes outside of the sub-tree rooted at the dragged node. When dragging a parasite node, segments of the host tree will highlight in the colors corresponding to the change in cost when the parasite node is moved to that location on the host tree (see the image below). Grey segments indicate that the parasite node cannot currently be moved to that position. Dragging that node to its current location will also move its descendants to their respective optimal locations.

In some situations there may be many lower cost locations on the host tree to move a specific parasite node and it may be useful to know the location that will result in the overall lowest cost. Simply double-clicking on a parasite node will simulate a "drag and drop" of that node to the location of lowest cost.

As a node is dropped on a location, nodes that are descendants of that parasite node will be placed in their optimal positions automatically. If you wish to extensively modify a particular embedding, it is advisable to work your way "down" the tree, starting at the parasite root node. Otherwise, modifications done near the bottom of the parasite tree will be undone when an ancestor of that node is moved. The cost at the top of the window will change according to the modifications.

Support Values

Jane 4 is capable of providing Support Values in the solution viewer. Support values give the percentage of solutions in which a specific event of the parasite tree is mapped to a given location on the host tree. Below is a small example of this functionality. In this example, 8 percent of solutions have a host switch from the bottom host edge to the top host edge, and 22 percent have a host switch from the top host edge to the middle one.

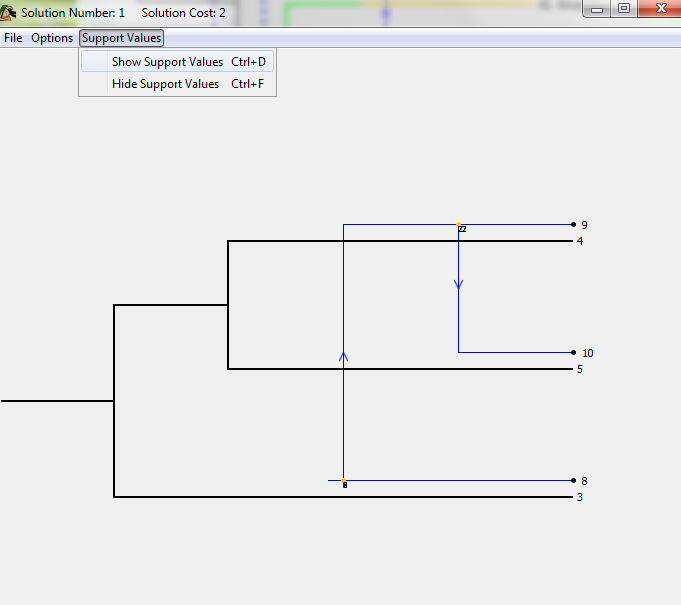

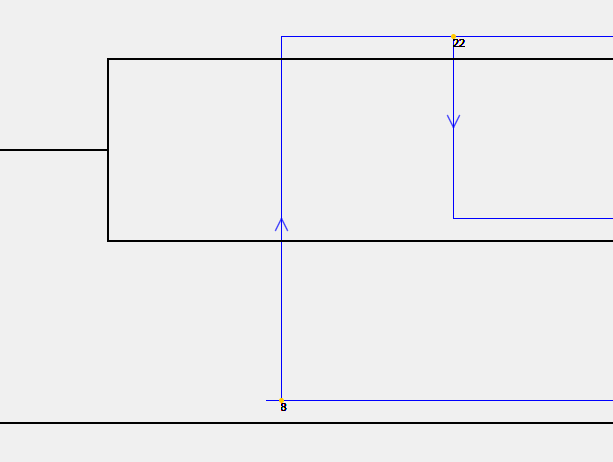

To view support values, select the menu option "Show Support Values" as seen in the image below. Note that the time it takes to calculate support values will vary based on the size of the trees. Additionally, support values may vary slightly from run to run due to the method of calculation.

Jane is currently limited to providing support values for unmodified solutions.

Viewing Polytomies

Jane 4 has the ability to find solutions for polytomic trees by automatically resolving them. Jane's algorithm attempts to find the best solution from among all possible resolutions.

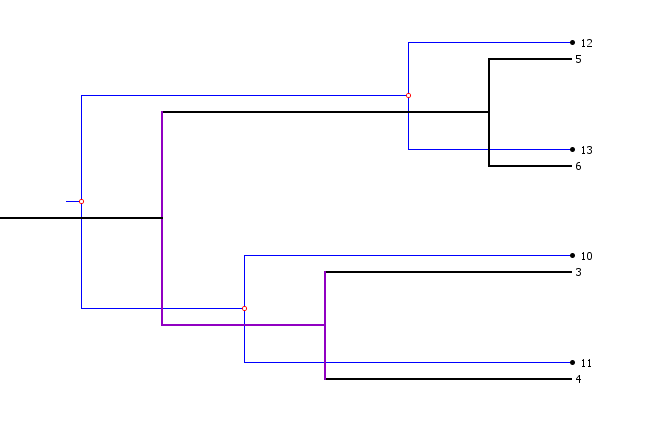

Host polytomies in Jane are displayed with edges in purple as shown below:

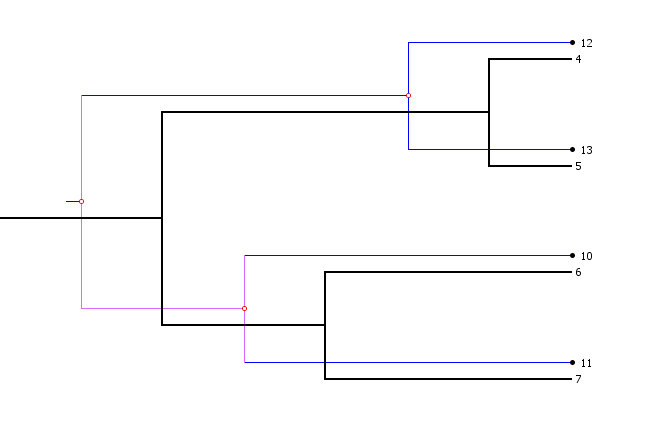

Parasite polytomies are displayed with edges in pink, as below:

There are a few options that govern Jane's handling of polytomies that are covered in detail on the page Polytomy Parameters.

Step-By-Step Guide to Modifying Solutions

We now examine a step-by-step example of interacting with the Solution Viewer. We start with the optimal embedding of the two trees (i.e. the initial state upon opening the viewer).

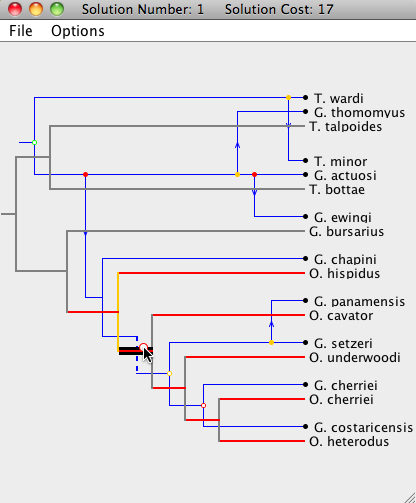

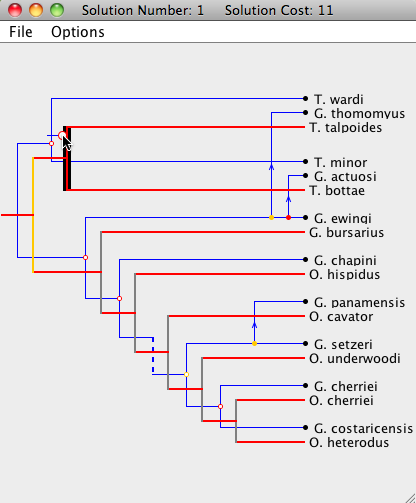

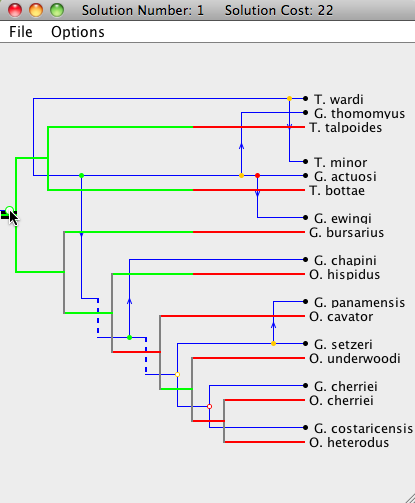

Step 1: The parasite root node is being moved to a new location. The entire subtree of the moved node will now be optimally embedded onto the host tree. Since the moving node happens to be the root, the entire parasite tree will be adjusted.
Step 2: A different parasite node is now dragged to a new location. Notice that only the subtree of the moved node is rearranged, and all of the other parasite nodes stay at the same location.
Step 3: The root of the parasite tree is moved once again. Note that this step undoes the changes made in "Step 2".

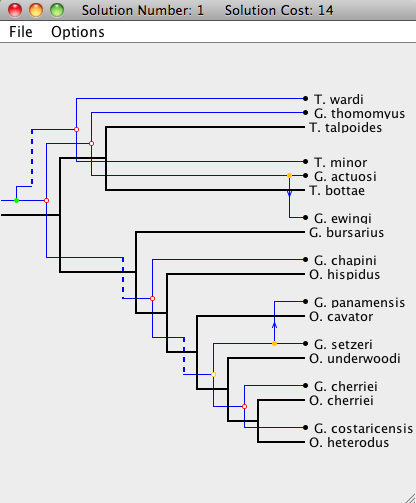

Step 4: If a node is double-clicked, it will move to its optimal position (by only changing the location of itself and its subtree). In this step, the root of the parasite node is double-clicked, which returns the tree to its optimal embedding onto the host tree (see first picture).

Saving and Retrieving Solutions

Jane allows you to save solutions to a file for later use in a few different ways. When you are viewing a solution, click on the File menu to see the options. One option is to Save Timing. This option allows you to save a representation of the solution that can later be reloaded into Jane. The two other options allow you to save the actual image in either zoomed or regular scale. These latter options are for saving the image for use in publications.

We now examine how to save a solution using the Save Timing timing option. Jane works by considering "timings" of the nodes in the host tree where a timing is simply an ordering of the speciation events (nodes) of the tree. From a given timing, Jane can very quickly find an optimal solution for that timing. Each solution that Jane presents in the Solution Viewer window is a different timing among the best solutions that Jane can find.

If a solution is of interest, its corresponding timing can be saved (without the manual changes made to the parasite tree within that timing) by going to File > Save Timing inside the Solution Viewer window. When the corresponding problem instance is loaded in the main window, the timing can be reloaded and Jane can reconstruct the corresponding solution. To do this, go to Solve Mode Options > Add Host Timing to Table, open the timing, and it will be added back into the list of solutions at the bottom of the Solve Mode tab. Command-line users can save the best timing found by using the -o switch with the name of a file in which to store the timing. It should be noted that the timing files are written in a human-readable format so that they can be modified manually if desired.

Back to Top

Stats Mode

In Stats Mode, Jane generates samples of random parasite trees or tip mappings and then solves these samples to obtain their cost. These costs are used to perform statistical analyses. To use the statistics mode, simply select Stats Mode tab in the main window.

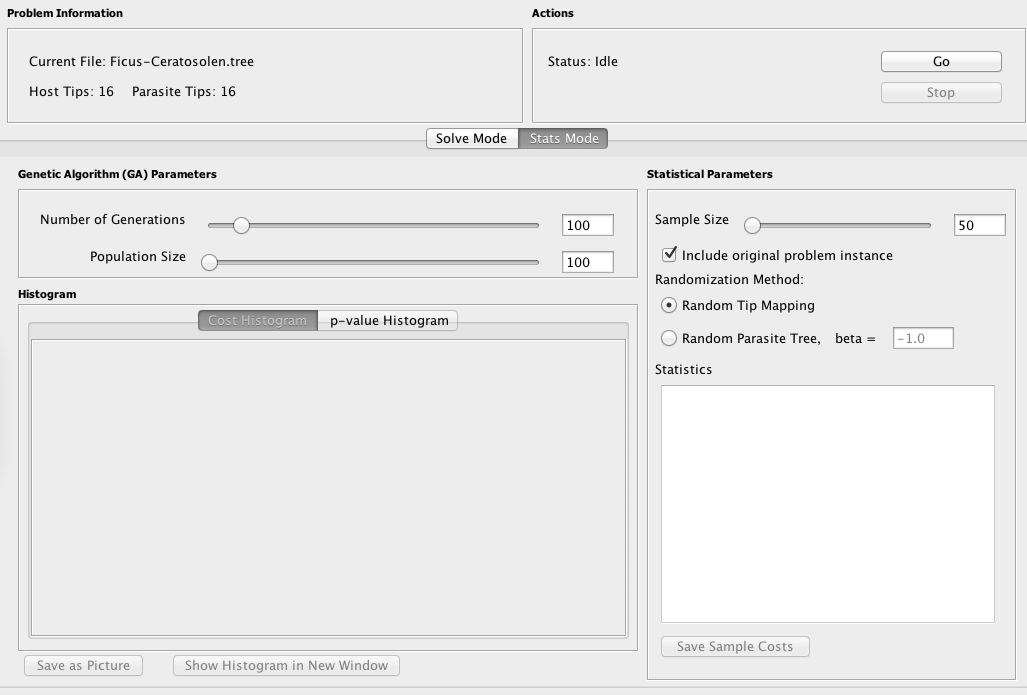

The problem instance and genetic algorithm parameters can be configured in the same fashion as in Solve Mode. Note that the number of generations and population size for the genetic algorithm are independent between Solve Mode and Stats Mode; the values used in Solve Mode are not carried over to Stats mode and vice versa.

Configuring Randomization Tests

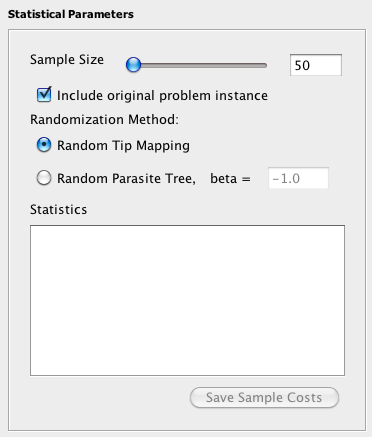

In the Statistical Parameters box, the Sample Size (the number of random problem instances to be generated and solved) can be set. To include the original problem instance in the sample, check the Include Original Problem Instance box.

Since the computation required to perform the randomization tests can be substantial for large trees, it may be desirable to distribute the work over multiple computers by running a small number of samples on each machine. Jane is multithreaded and will use all of the cores available on each machine.

Checking the "include original problem instance" box will solve the original problem instance in addition to the random ones and generate comparison data. This option is included in the event that you wishes to split the randomization tests over multiple computers. On one computer, the original problem instance will be evaluated in addition to some randomized instances. On the other computers, only randomized instances need to be solved. Note that if you choose to save the sample costs, the original problem instance cost will not be included in these. Thus, make sure you write it down if you need it later!

The preferred Randomization Method can be specified in the following way:

Viewing Randomization Results

After clicking Go to perform statistical analyses, the resulting cost distribution is displayed in the histogram on the bottom left of the Stats Mode tab, and basic Statistical values are shown on the bottom right of the Stats Mode tab.

Cost Histogram:

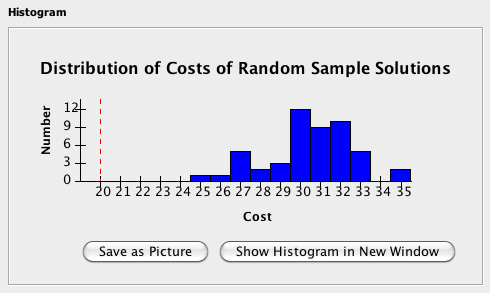

The Cost Histogram section will show the result of the run in histogram format, where the horizontal axis represents the cost of the sample and the vertical axis represents the number of samples with the corresponding cost. If included, the cost of the solution to the original problem instance will appear as a red dashed line. Click Save as Picture to save the histogram as a portable network graphics (.png) file format, or click Show Histogram in New Window in order to see the histogram in a larger, separate window.
