The Challenges of Reproducibility and Control

1. Introduction

Based on your experience thus far, it is easy to assume that the major problems in software development are figuring out what changes need to be made, making them correctly, and testing that they work. It might, therefore, surprise you to learn how much time and effort is spent (in larger projects) on processes that are intended to restrict changes. The discipline of managing change in software projects is commonly called Software Configuration Management (SCM). The capabilities it provides are generally summed up under the two terms reproducibility and control.

• Reproducibility is the ability to recreate, at any time, an exact copy of a program (or other work product) as it was at any point in its history. There are many reasons why we might need to do this:
  • to reproduce an older (shipped long ago) version of a program to verify or fix a bug.
  • to understand exactly which changes were made when, and for what reasons in the past.
  • to enable us to back-out a change that turns out to have been bad.
• Control refers to the ability to control who, is allowed to make what kinds of changes, to which versions, of which work products, at which times. This might be important to:
  • detect or manage different developers making conflicting changes to the same, or related, modules.
  • ensure that sensitive modules are only updated by (or with the approval of) designated experts.
  • ensure that all changes are properly reviewed and tested.
  • ensure that people who might be affected by changes are aware of them.
  • stabilize (reduce the changes being made to) a program that is about to be released.

The primary activities and tools of Software Configuration Management fall into the categories of:

• version control
• build automation
• build environment
• change control

2. Version Control

Imagine that you are the developer responsible for a popular utility. The latest released version is 3.1, and you are already working on features that will go into version 3.2. You just got a call from support that a key customer has encountered a serious bug ... in a three year old version (2.5).

• You have fixed hundreds of bugs in the last few years, probably including this one, so your first inclination is to tell them to get version 3.1 and see if the problem still happens there. Support immediately tells you that is not an option:
  1. The customer is also running a four year old operating system, and version 3.1 would require them to upgrade to the next version of the OS, which it turns out won't run on their hardware.
  2. There have been many enhancements made to your utility in the last few years, and it would not be trivial for existing users to just move over to the new version.
  3. The customer has been cognizant of these issues, and that is why they are paying for a legacy support contract, which obligates us to maintain and fix bugs in the version that we originally sold them (version 2.5).

  This is actually a fairly common problem. Customers buy a product for the hardware and operating system they have at the time, and they continue to use it for many years. Upgrading the hardware and software are likely to be both expensive and disruptive, so they purchase long term support contracts that obligate us to fix critical bugs in this old (legacy) software for many (e.g. five) years.

• You can probably find a test machine, and install an old OS on it, and then go find a copy of release 2.5 of your software and install that, and then you can try to reproduce the bug. If you can reproduce the problem, and fixing it requires an update to the software, you will have to:
  1. get the sources to your utility, as they were three years ago.
  2. update those sources to fix the bug, and then build an updated version of the 2.5 product with the new bug fix.
  3. re-run all of the old (release 2.5) test suite to ensure that you did not break anything.
  4. add new test cases to the old (release 2.5) test suite to confirm that the reported bug no longer happens.
  5. prepare an update (patch) to release 2.5 that contains the new bug fix.
• Then, if it turns out that the same bug is actually still present in the current code-base, you will have to repeat all of those operations in the current (3.2) code base.

1. investigate problems old versions
2. study the detailed history of the code in order to understand how it got to be the way it is.
3. back-out changes that no longer make sense.

2.1 Capabilities of a Version Control System

A version control system is a sort of database. It may be as simple as an archival system for named object versions, a tool for tracking changes to text files, or it may actually be implemented on top of a relational database. It may be capable of handling only textual data (e.g. SCCS, CVS) or it may be capable of arbitrary files (e.g. svn). There are, however, a few basic capabilities that almost all version control systems have in common:

Any Version can be Recovered at Any Time

Given a change transaction ID, it is possible to recover, at any time, the affected file, as it was at the time that change was made. This is the primary capability of any version control system.

All Changes are Tracked

Whenever any change is made to any object, a record is made of:

• a unique change transaction ID
• the time and date when the change was made
• the human being who ordered the change
• a textual explanation for the change

1. gives us a handle on every change.
2. helps us understand (after the fact) why each change was made.
3. tells us who to talk to if we need more information about the change.
4. enables us to prepare reports of all of the changes that have been made or incorporated into a product.

Extracted Objects can be Versioned

If we have the ability to reconstruct any file as it was at any point in time, how can we tell what version of a file we are looking at now? Just as some copiers and fax machines have the ability to automatically label every output page with information about when it was printed, most version control systems have a means of automatically putting identification information into every extracted file.

Many of these mechanisms involve some sort of macro expansion capability, where:

• uses of specialized macros or keywords are placed in the file before it is checked in to the version control system.
• whenever a file is checked-out of the version control system, the macros are expanded with version specific information (e.g. file name, version number, when the last change was made, when the file was extracted, who made the last change, etc).

1. because these labels mean the document is under version control.
2. because these labels make it possible to confirm (when talking to someone else) that we are indeed talking about the same version.

It has, however, been argued that "version number stamps" are an over-simplified notion, increasingly difficult to apply to real products:

• a software product is probably built up from hundreds (if not tens of thousands) of distinct modules, each of which has its own version. An accurate version label would be a tupple comprised of thousands of individual module versions.
• in a distributed version control system, a module does not have a version, but rather a history, and may be characterized, not by a monotonically increasing version number, but rather by a SHA-1 hash code. While descriptively accurate, these are pretty much impossible to use in conversation.

Versioned Objects Exist in Multiple Branches

It is tempting to think that a file experiences a pure linear sequence of updates, each new change an improvement on the last. As the example at the beginning of this section illustrated, that is an overly simplistic model. There are a few reasons for files to exist in parallel branches:

• The product exists in a succession of releases, but it may occasionally be necessary to make changes to old release (rather than simply moving up to the newest version). Legacy support problems are the most obvious examples.
• Multiple people need to make large sets of independent changes to a product in parallel. They might decide to do their work in distinct branches, and then re-merge them when they are done.
• The product may run on multiple platforms (e.g. Windows and Linux), and even though there is much common code, the two platforms require distinct versions.

Branches are merely parallel threads of development, and can be created for any purpose. There are, however, two common branching strategies:

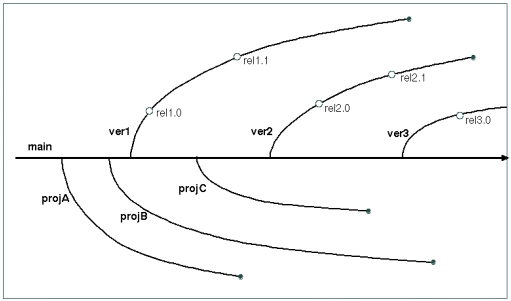

• In the mainline model, the main (default) branch is the latest-greatest. When ever a release is made, we capture a snapshot as of the time of that release in a branch. In this model, the only changes in branches are patches to old versions. All new development happens in the mainline.
  The Mainline Model

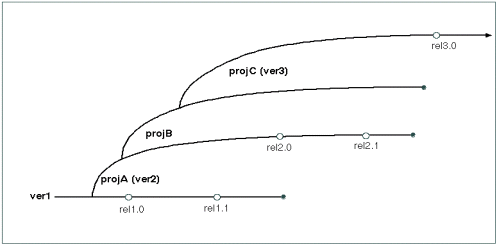

• In the promotion model, the main (default) branch is the first version. When a new release is to be worked on, we create a new branch. And when another new release is started we create a branch from that branch. This model more clearly shows the history of the code (kind of like a family tree).
  The Promotion Model


They may support distinct, hierarchically related, work-spaces

With a very large product, there may be dozens or even hundreds of different sets of developers working on parts of the same system. If everyone were working in a single work space (where everyone saw everyone else's changes) there might be many situations where a mistake made by one group, could block all of the other groups. For this reason it is desirable to be able to create temporary copies of a version control database, where I am free to make all of the changes that I want (and have them tracked), but other people will not see those changes until I am done.

This is typically done by creating a child or clone of the original workspace.

• Within my workspace, I can do what ever I want, but my changes only affect my own work space. Nobody else sees what I am doing.
• I can, at any time, check for updates in my parent workspace, and replicate those changes in my own. This keeps me up to date with respect to (final) changes being made by other people.
• When I am done, I can put back all of my changes (as a single huge transaction) to my parent workspace. Only then will other users of the parent workspace see my changes. This will also allow other children of the same workspace to be notified of my updates.
• When a change in my parent workspace updates a file that I too have changed, I have to merge the changes to resolve the conflict. Most version control systems include tools to detect such conflicts facilitate their reconciliation.

2.2 Use of a Version Control System

A version control system is much like a database. It may actually be built on top of a database. They are also organized into repositories (projects, directories, etc). The basic usage cycle is pretty simple:

1. It may be necessary to register yourself with a particular repository (which may verify your ability to read or write these files).
2. When documents are created (or first imported into the version control system) a command is run to add each file to the repository.

   If your version control mechanism uses ID macros, it is a good idea to ensure that each file contains the appropriate version ID/macro/strings to ensure that every copy extracted from the repository will contain appropriate version identification information.

3. When you want to look at (or work on) files, there is usually a simple command to extract current (or any specified versions) of all (or any subset) of the files in the repository. These become your working copies.
4. You can view, edit, and delete these using any tools you choose.
5. There are usually commands to audit your collection of files against the repository, and tell you (a) what files you have changed and (b) what other changes have been made to the repository in the interim.
6. There are commands to help you identify and reconcile potentially conflicting updates.
7. There is a command that checks your changes in to the repository.

   It may ask you for a list of files to be checked in, or it may detect them automatically.

   It will probably ask you to provide a summary of these changes (why they have been made and what they accomplish).

8. There are commands to view the change history for selected files.
9. There is also usually some way of backing out a change that proves to be undesirable.

Version control systems are normally used to keep track of created documents (like requirements, specifications, plans, software, test cases, user manuals, etc).

Newer version control systems are capable of handling non-textural data, and may also be used to archive copies of generated objects (program binaries, databases, trace logs, test plan results, etc).

2.3 Distributed Version Control

In a centralized version control system, workspaces exist in a relatively stable tree-like hierarchy. Changes are submitted up from child to parent (with the parent's permission), and propagated back down from parent to child (when the children are ready). In a distributed version control regime some workspaces may exist in tree-like hierarchies, but (in principle) changes can propagate from any workspace to any workspace (with cycles allowed).

Consider an open source product under active development by many people to support a wide range of needs ... Linux for example. Numerous people are working on their own versions, and regularly fix bugs and add features. Not all valuable changes are (or should be) accepted into Linus' main branch, and it may take many months for particular change to find its way into the main branch. People who need an update are not willing to wait until that change (perhaps) appears in the main branch. Rather, these changes (patches) are continuously and freel passed around the Linux community (e.g. like restaurant recommendations).

In a centralized version control system version one might:

• start with version 1.3.2
• delete a few lines
• add a few lines
• add a description of what we did and why
• check the updated version back in as version 1.3.3

In a distributed version system one might start with the same version, make the same changes, and commit them back with the same comments. The difference is how I would get these changes into my own source tree.

• look at the changed branch in the fixer's repository, and find the commit that included the desired changes.
• apply those same changes to my own branch.
• check the updated version back in my own repository

1. wanting to have my own variant version of the product.
2. wanting to take advantage of other peoples' ongoing work.

In centralized version control, the sacred operation is commit, and most of the complexity surrounds the creation and maintenance of branches. In distributed version control, commits are a dime a dozen. The interesting operations are merge or rebase (consider this change to be relative to a different starting point). To support these operations, distributed version control systems tend to have sophisticated tools for assisting developers with the process of merging patches into divergent branches:

• tools that understand the language well enough to determine whether not changes are likely to conflict.
• tools that will automatically merge non-conflicting changes, and create appropriately tagged/bracketed blocks of code to represent the alternatives for potentially conflicting changes.
• side-by-side comparison tools that make it easy to see (in context) what the real differences are.
• tools that automatically do the entailed edits after a user decides what the correct solution is.

Note, however, that the problem of code merging is not at all unique to distributed version control:

• a developer working in a child of the master tree may have to merge her updates with recent changes in the master tree.
• a developer working in branch B may need a change that has just been made in branch A, but that cannot reasonably be passed through the main trunk.

3. Build Automation

As programmers, it is natural to think of programs as things that human beings create in text editors ... but this is only the first step in its creation. Our source files will be run through a several passes of compilers, library builders, linkage editors, database builders, packagers, and other such tools before our software is ready to run. It is important that this build process be automated. There are several reasons for this:

• to enure that all of the steps are performed, and in the right order.
• to ensure that each step is done properly (with all the right options, no typos).
• to relieve people of the responsibility for remembering and correctly entering complex sequences of commands.
• to eliminate possible variations in the created software associated with who did the build.
• to permit long builds to be performed automatically, without human supervision.

The results of a build (the bits created) should be strictly determined by the source files, and should not be affected by who initiated the build, when, where or how.

Build automation might involve anything from shell or perl scripts, to macro-processors, to make files, to auto-makefiles, to integrated development environments. Their capabilities might be any combination of:

• a simple set of scripts that run the required commands, and stores the output in a log for later inspection.
• scripts that run the required commands and check to ensure that each step completes successfully before moving on to the next. This can save a great deal of time and ensure that problems are quickly addressed.
• scripts that involve run-time substitutable parameters to select build options, specify where sources live, etc.
• smart build mechanisms that understand the dependencies of output files on input files and only do incremental rebuilds of those files whose inputs have changed. This can greatly accelerate builds in a development environment where people typically make very few changes between successive builds.
• higher level languages in which it is possible to describe abstract relationships among files and general rules, which the tool will then use to determine the class of every single file, and how to properly build it (without the need to code specific commands for every file).

1. completely automated
2. easy to use
3. robust in the face of errors
4. yields highly predictable and dependable results

Two of the most common build automation tools are make and Apache Ant. For large projects, even building a makefile can be a daunting task. A good example of a tool to assist developers with this problem is Automake.

4. Build Environment

Consider the reproducibility goal we stated for build procedures:

The results of a build (the bits created) should be strictly determined by the source files, and should not be affected by who initiated the build, when, where or how.

This may not be strictly achievable ... because the bits created by the compilation process are not uniquely determined by the source code and the compilation options:

• different include file may have different type and macro definitions.
• different versions of the compiler may produce different code for the same input.
• different libraries may contain different routines, or different code for the same routines.
• different versions of a linkage editor may combine object modules differently.

A version control system may be able to ensure that we can reconstruct the original versions of our source modules. If we want to be able to reliably reconstruct the same binaries, it we may also need to be able to reassemble the same versions of all of the build tools that were originally used to build the software. This is not merely an issue for legacy system support. Imagine what would happen if different developers and the release engineering group were all using different versions of the compilers and libraries. If there was a bug in a library module, two different developers could compile the same source and get different behavior.

To avoid such problems, many software projects settle on a standard build environment. A set of basic tools that will always be used to build a particular release of the product. What if there is a bug in one of the tools in the standard build environment? It can be fixed, but then a new version of the standard build environment has to be defined, and everybody must upgrade to the new version.

Many organizations are (quite rightly) paranoid about the possibility of different people in the development using different versions of the build environment. It is common for organizations that are concerned about build correctness and reproducibility to adopt some very conservative practices:

• have a formal build group that maintains systems with a standard build environment.
• always build from the top-of tree (in the version control system).
• always build using totally automated build procedures.
• run your tests against the binaries from the official build.
• ship only binaries from the official build.

So how does one get a copy of the standard build environment?

• some groups actually check the build tool (binaries) into the version control system. This is slow and inefficient, but it is very well controlled.
• some organizations maintain build machines that have the standard build environment on them, and can be used by anyone who needs to do a build.
• often, the build group will maintain a web-site with packages for standard build tools. Anyone who wants to set up a build environment can simply download and install those packages. packages
• it is increasingly common to do builds in virtual machines, which are cloned from golden images, maintained by the release engineering group.

In situations where developers might reasonably be expected to build many different versions of the same software, it is common to install each version of the build environment into a different directory, and to use environment variables to tell the standard build tools where they can find the correct tools.

5. Change Control

There are many possible reasons to limit peoples abilities to make changes:

• When one developer is making changes to a module, it may make sense to lock it, as a warning to others that these changes are in progress.
• There may be a notification mechanism to ensure that interested developers are automatically informed whenever changes are made to specified modules.
• There may be a formal process associated with changes to some components:
  • requirements may have a contractually mandated change procedure, involving multi-party sign-offs.
  • it might be required that all changes be associated with an approved bug report or feature request.
  • we may want to ensure that changes to critical or (particularly delicate modules) are only made by designated experts.
  • we may require that changes be reviewed before they can be checked in.
  • there may be a process check associated with changes that go into a release, to ensure that all of the required testing and documentation have been completed and that this software has indeed been approved for release.
  The process of evaluating a proposed set of changes against such check-lists is often referred to as Gate Keeping.
• Any change has the potential to introduce new problems, and so it is common, as a product approaches release, to prohibit any changes except for fixes to a few designated critical bugs. This is called a product stabilization period.

5.1 Capabilities of Change Control Systems

It is possible to implement change control disciplines with purely administrative procedures (written rules about who is allowed to do what when). Many version control systems, however, include mechanisms to ensure the enforcement of change control policies:

• It may be possible to designate which users have read and write access to which files. The access control may be very coarse (at the repository level) or quite fine (at the individual file level).
• It is usually possible to designate lists of users who are to receive e-mail when files are updated. These may be managed as mailing lists associated with files or sub-trees, or as per-user rules to describe the changes in which they are interested.
• There may be a means of locking a file, to prevent other users from changing it, or to at least notify them that changes are currently in progress. If files can be locked, there is also usually a means of breaking expired locks.
• If the version control system supports branches, it will be possible to imposed different access control rules on different branches.
• If the version control system supports related work-spaces, it will be possible to impose different access control rules on each work-space, and on the migration of files between them.

6. Conclusions

Software Configuration Management procedures make it possible for us to know precisely what our product is (all of the components that went in to it, and the exact means by which they were processed to yield the final product. They also make it possible for us to exactly reproduce any version of the product that has ever existed. These capabilities are often critical for major software products. But what of less formal development situations (e.g. a little utility I write for myself)? The requirement for total reproducibility would seem to be gross overkill.
This is true, but ...

• We still probably want to use a version control system to keep track of our changes, so that we can ...
  • go back and understand how a piece of code got to be the way it is.
  • back out a series of changes that turn out to have been bad.
  • enable us to maintain multiple parallel versions or releases of single files.
• We will still want to automate our software construction process ...
  • to ensure that our software is correctly built every time.
  • to save us the trouble of remembering and typing complex series of commands.
  • to enable people to build the software who do not actually understand all the details of its design and construction.
  • to quickly integrate a few changes, rebuilding only the components that actually changed.
• We will still need to define the platforms on which our software is to be built and run ...
  • to prevent problems resulting from attempting to run the software on the wrong platform.
  • to avoid bugs resulting from the building of the software with the wrong versions of tools.

Larger projects may impose more formal constraints on the development process, and more completely specify the ways in which various tasks should be performed, but the basic techniques of Software Configuration Management are applicable to even the simplest of software projects. Most modern SCM tools are flexible enough to support the full spectrum of software development projects. An understanding of these issues, tools and techniques will prepare you to create a Software Configuration Management regime to meet the needs of each project you work on.
