Claude via Google Cloud, LiteLLM, and Open WebUI

A start-from-zero, copy-and-paste setup guide built from a real working session. It includes the exact failure modes encountered along the way, and it verifies each layer before moving to the next.

Site review: August 17, 2026 · Scope: local macOS proof-of-concept.

1 What You Are Building

Four pieces, in a straight line. Each one only has to satisfy the piece to its right.

2 Before You Begin

This guide assumes:

• You have a Google account that can use a Google Cloud project.
• Billing is enabled for the project, or your organisation provides billing.
• Your organisation permits the relevant Claude partner models.
• You are using macOS with Docker Desktop.
• You can use Terminal and paste commands.

3 Choose the Google Cloud Project

1. Open the Google Cloud Console and select the project you intend to use. Write down its Project ID, not merely its display name — they are often different, and only the ID works in commands.

2. Open Billing for that project and confirm it is linked to an active billing account. In an institution-managed Google Cloud organisation, an administrator may have to do this for you.

3. Note that the Agent Platform API needs to be enabled. Section 5 verifies this from the CLI; the Agent Platform interface can also enable it for you.

4 Enable Claude and Prove Google Can Use It

Do this before troubleshooting Docker or LiteLLM. If Claude does not work in Google's own Agent Studio, it will not work through LiteLLM, and every hour spent on container networking will be wasted.

1. Open Agent Platform / Model Garden and find the Claude model you want. This guide uses claude-opus-5. Google's partner-model documentation lists the supported model IDs.

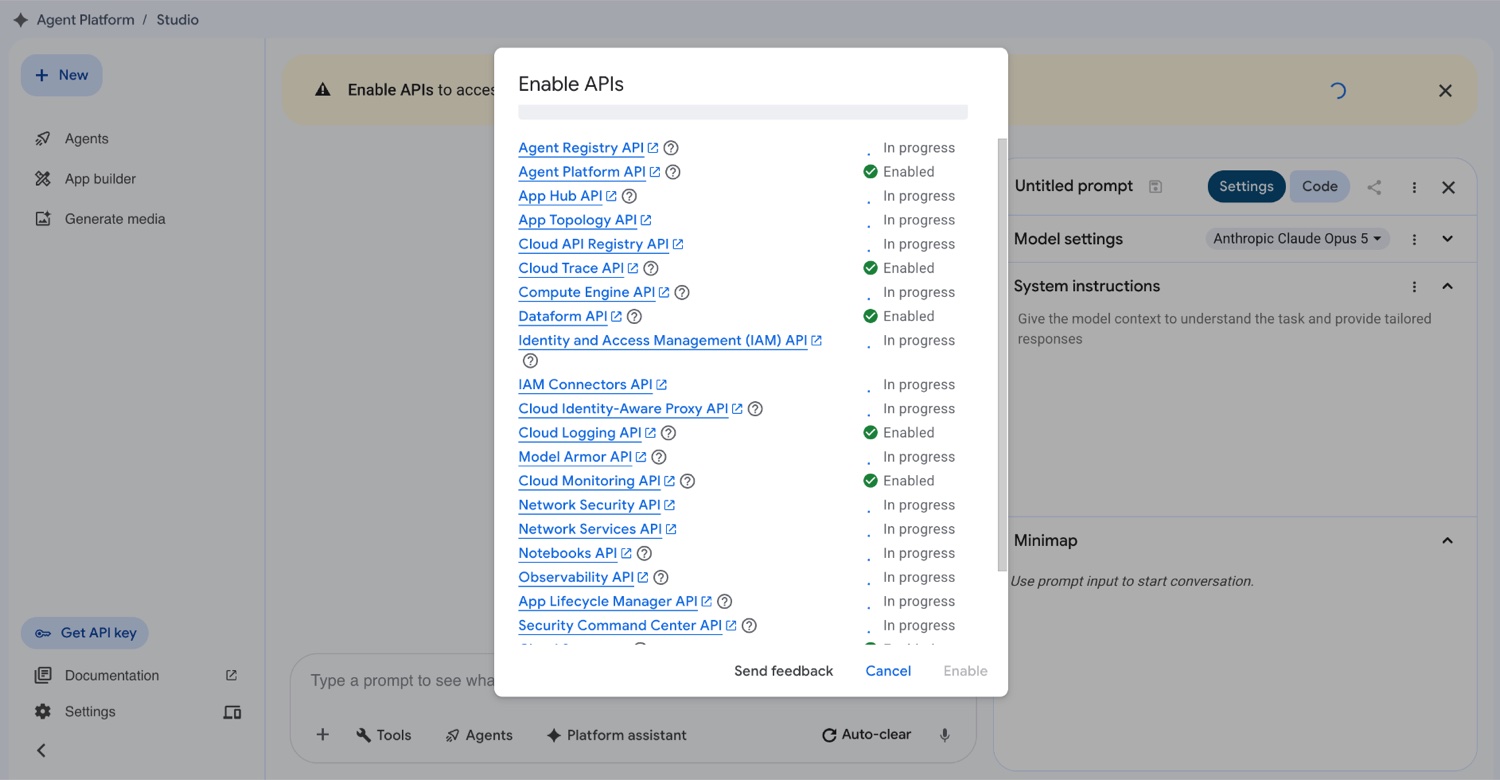

2. Let the Enable APIs dialog finish if the interface opens one. Seeing a model name listed does not mean its supporting APIs are ready.

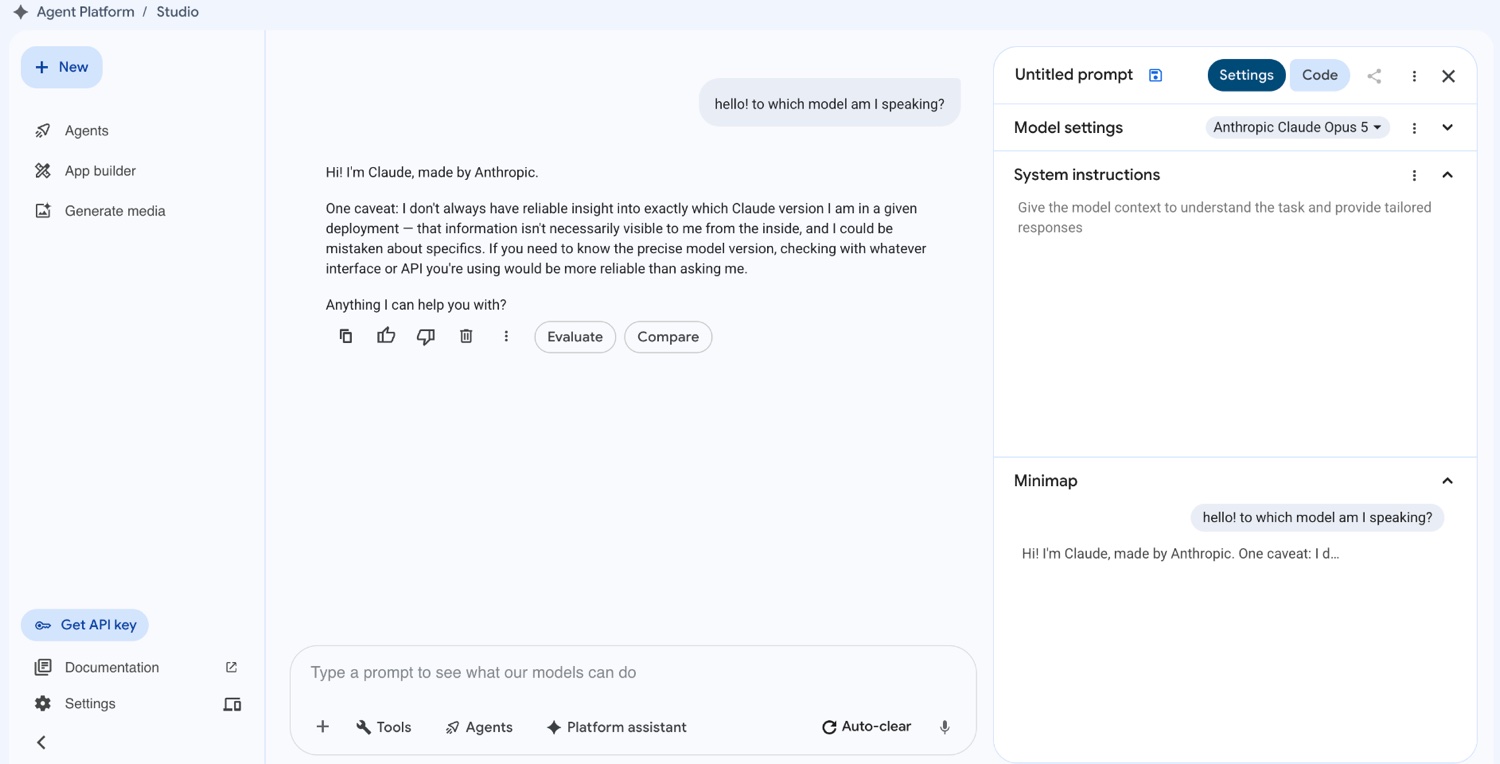

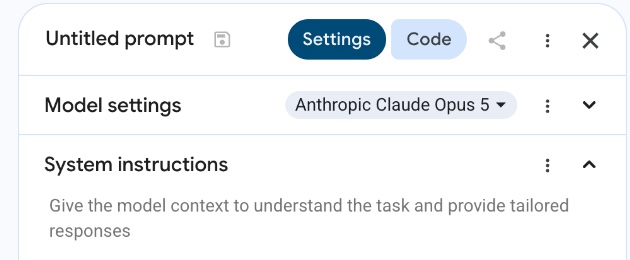

3. Open the model in Agent Studio and confirm the model selector shows it.



4. Send a test message. A response here is strong evidence that the project and your user identity can reach the model.



5 Install and Authenticate the gcloud CLI

1. Check whether gcloud is already installed; if it is, skip the installation itself.

   gcloud --version

2. Set your project:

   gcloud config set project <PROJECT_ID>

   If you see Reauthentication required, log in and then set the project again:

   gcloud auth login
   gcloud config set project <PROJECT_ID>

3. Verify your active account and project:

   gcloud auth list
   gcloud config get-value project

4. Verify the Agent Platform API is enabled:

   gcloud services list --enabled \
     --project=<PROJECT_ID> \
     --filter="name:aiplatform.googleapis.com"

   Expected output:

   NAME                       TITLE
   aiplatform.googleapis.com  Agent Platform API

   If no row appears, enable it:

   gcloud services enable aiplatform.googleapis.com \
     --project=<PROJECT_ID>

6 Configure Application Default Credentials

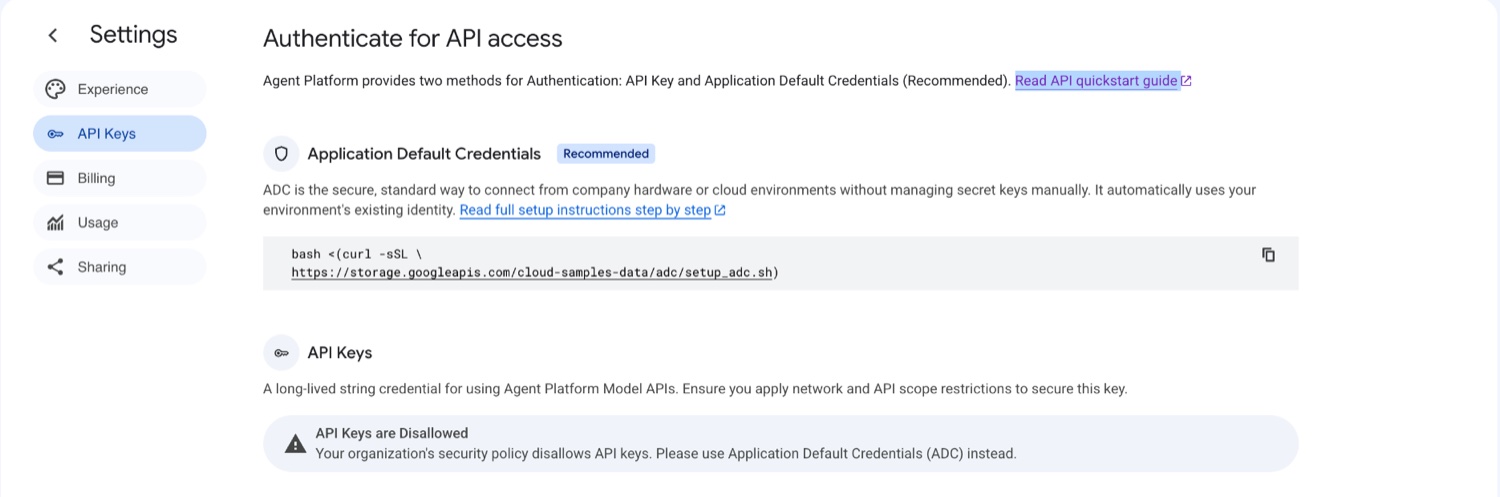

Option A: use the command the console shows you

This is the exact setup command used in the working session. Enter your project ID when prompted.

bash <(curl -sSL https://storage.googleapis.com/cloud-samples-data/adc/setup_adc.sh)

Option B: configure ADC directly with gcloud

gcloud auth application-default login
gcloud auth application-default set-quota-project <PROJECT_ID>

Verify the credential file exists

ls -l "$HOME/.config/gcloud/application_default_credentials.json"

You should see a file. Do not print its contents into tickets, chat rooms, or documentation.

Optionally, confirm you can obtain a token from it:

gcloud auth application-default print-access-token >/dev/null && echo "ADC token OK"

7 Configure LiteLLM

1. Make a dedicated directory:

   mkdir -p "$HOME/litellm-vertex"
   cd "$HOME/litellm-vertex"

2. Create config.yaml in that directory:

   model_list:
     - model_name: claude-opus-5
       litellm_params:
         model: vertex_ai/claude-opus-5
         vertex_project: "<PROJECT_ID>"
         vertex_location: "global"

     # Add a second entry only once you have confirmed that model is
     # entitled on your project. An unentitled alias loads fine and
     # then returns 404 on the first real completion request.
     # - model_name: claude-fable-5
     #   litellm_params:
     #     model: vertex_ai/claude-fable-5
     #     vertex_project: "<PROJECT_ID>"
     #     vertex_location: "global"

   An easy way to create the file is nano "$HOME/litellm-vertex/config.yaml". Paste the YAML, then press Ctrl+O, Enter, then Ctrl+X.

   On vertex_location

   Claude partner models are served from the global location, not a regional one. The 404 in section 16 shows the request resolving to …/locations/global/publishers/anthropic/…, which is the endpoint that eventually succeeded.

3. Verify the file before starting anything:

   cat "$HOME/litellm-vertex/config.yaml"

   Look carefully for a leftover example project from a colleague or a blog post. Every project reference should be yours.

4. Start Docker Desktop and wait until it reports that the engine is running:

   open -a Docker
   docker info

   If docker info fails

   Do not continue. An error mentioning docker.sock, daemon, or failed to connect to the docker API means Docker Desktop is not ready yet.

5. Start LiteLLM using ADC:

   docker run -d \
     --name litellm \
     --restart unless-stopped \
     -p 127.0.0.1:4000:4000 \
     -v "$HOME/litellm-vertex/config.yaml:/app/config.yaml:ro" \
     -v "$HOME/.config/gcloud/application_default_credentials.json:/app/adc.json:ro" \
     -e GOOGLE_APPLICATION_CREDENTIALS="/app/adc.json" \
     ghcr.io/berriai/litellm:main-latest \
     --config /app/config.yaml --port 4000

   The :ro suffix mounts the credential and config files read-only inside the container. The 127.0.0.1 prefix keeps the port bound to this Mac rather than published on every network interface.

6. Wait for startup:

   docker logs -f litellm

   Wait until you see:

   Application startup complete.
   Uvicorn running on http://0.0.0.0:4000

   Press Ctrl+C to stop following the logs. This does not stop the container.

8 Prove LiteLLM Works Before Touching Open WebUI

This separation matters. If these two tests fail, Open WebUI is not the problem and changing its settings will not help.

Test 1: list the models

curl http://localhost:4000/v1/models

You should see the model IDs declared in your config:

{"data":[{"id":"claude-opus-5","object":"model", ... }],"object":"list"}

Test 2: send an actual completion

curl http://localhost:4000/v1/chat/completions \
  -H "Content-Type: application/json" \
  -H "Authorization: Bearer sk-1234" \
  -d '{
    "model": "claude-opus-5",
    "messages": [
      {"role": "user", "content": "Say hello in one sentence."}
    ]
  }'

Do not worry if the returned JSON arrives as one long line. The indicators that matter are:

• The request returns JSON rather than an error.
• The response says "model":"claude-opus-5".
• choices[0].message.content contains an answer.

9 Start Open WebUI

1. Start the container:

   docker run -d \
     --name open-webui \
     --restart unless-stopped \
     -p 127.0.0.1:3000:8080 \
     -v open-webui:/app/backend/data \
     ghcr.io/open-webui/open-webui:main

2. Wait ten to thirty seconds, then open http://localhost:3000 and create the initial account. On a fresh installation the first account is normally the administrator.

3. Useful health checks:

   docker ps
   docker logs open-webui --tail 100

10 Connect Open WebUI to LiteLLM

1. In Open WebUI, open Admin / Settings → Connections and add or edit an OpenAI-compatible connection.

2. Use exactly this base URL:

   http://host.docker.internal:4000/v1

   Not localhost:4000. Inside the Open WebUI container, localhost means the Open WebUI container itself. Docker Desktop provides host.docker.internal so a container can reach a service published on the Mac host.

3. For the initial smoke test, use the same bearer value the curl test used:

   Auth:     Bearer
   Key:      sk-1234
   API Type: Chat Completions

   Temporary only

   sk-1234 is not a deployment secret. It is used here only to match the verified test path. Section 12 replaces it with a random master key.

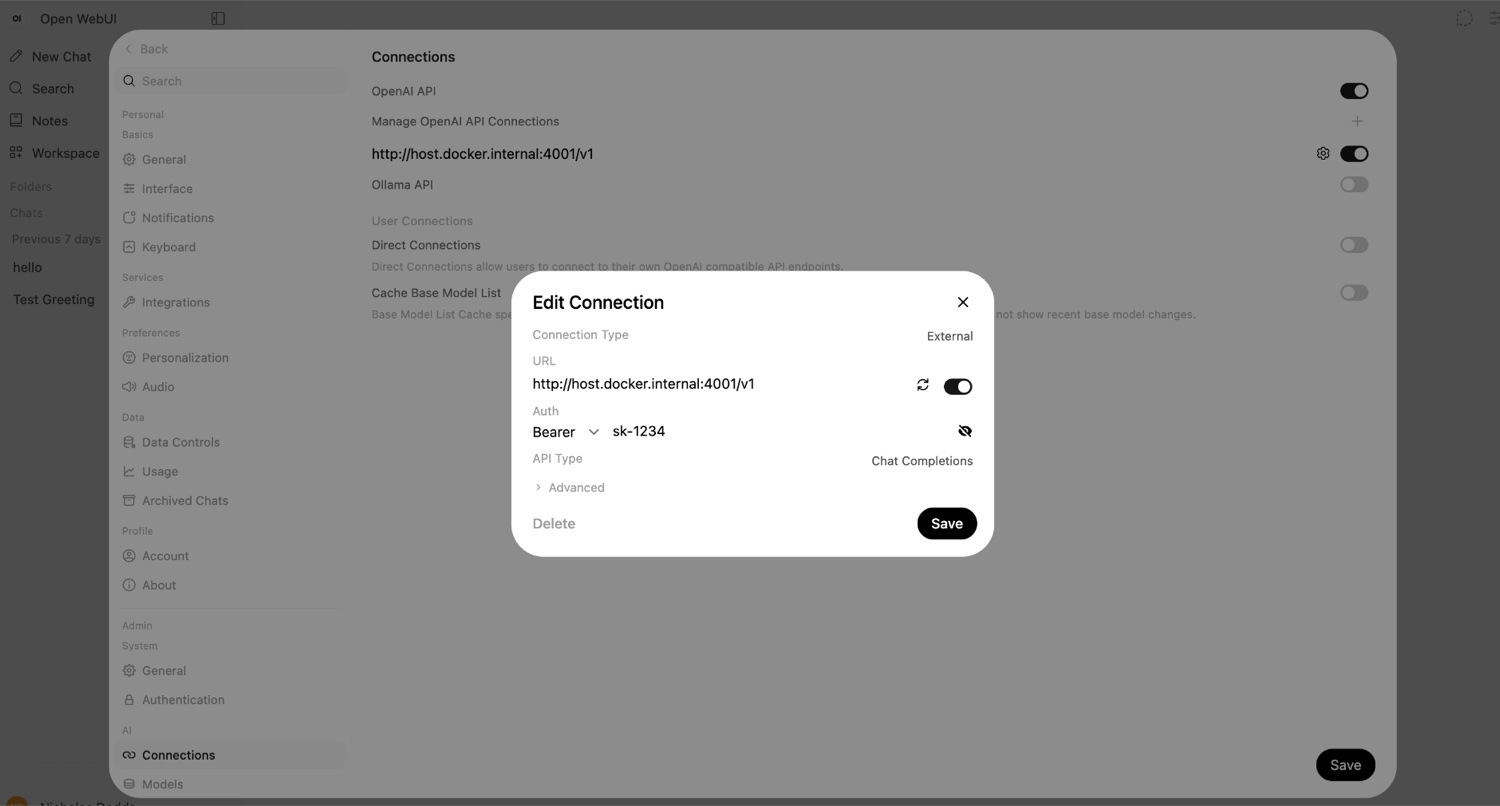

4. Check the port carefully.

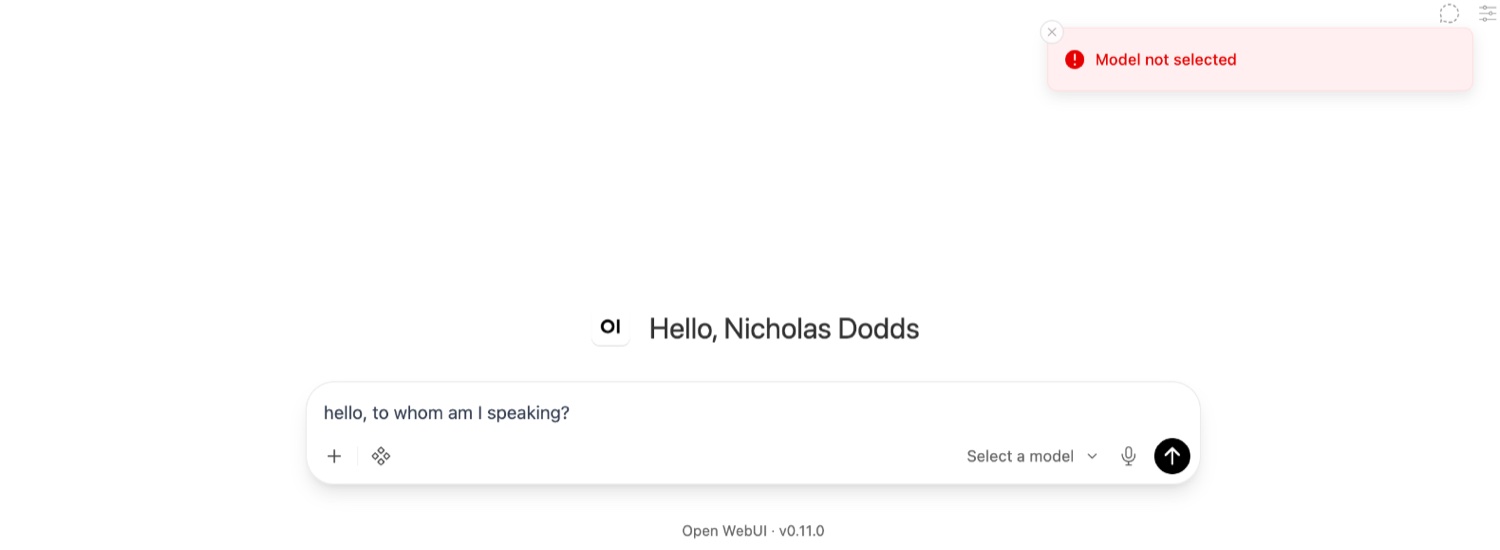

5. Save, return to a new chat, and click the model selector. Your configured model should now be listed.

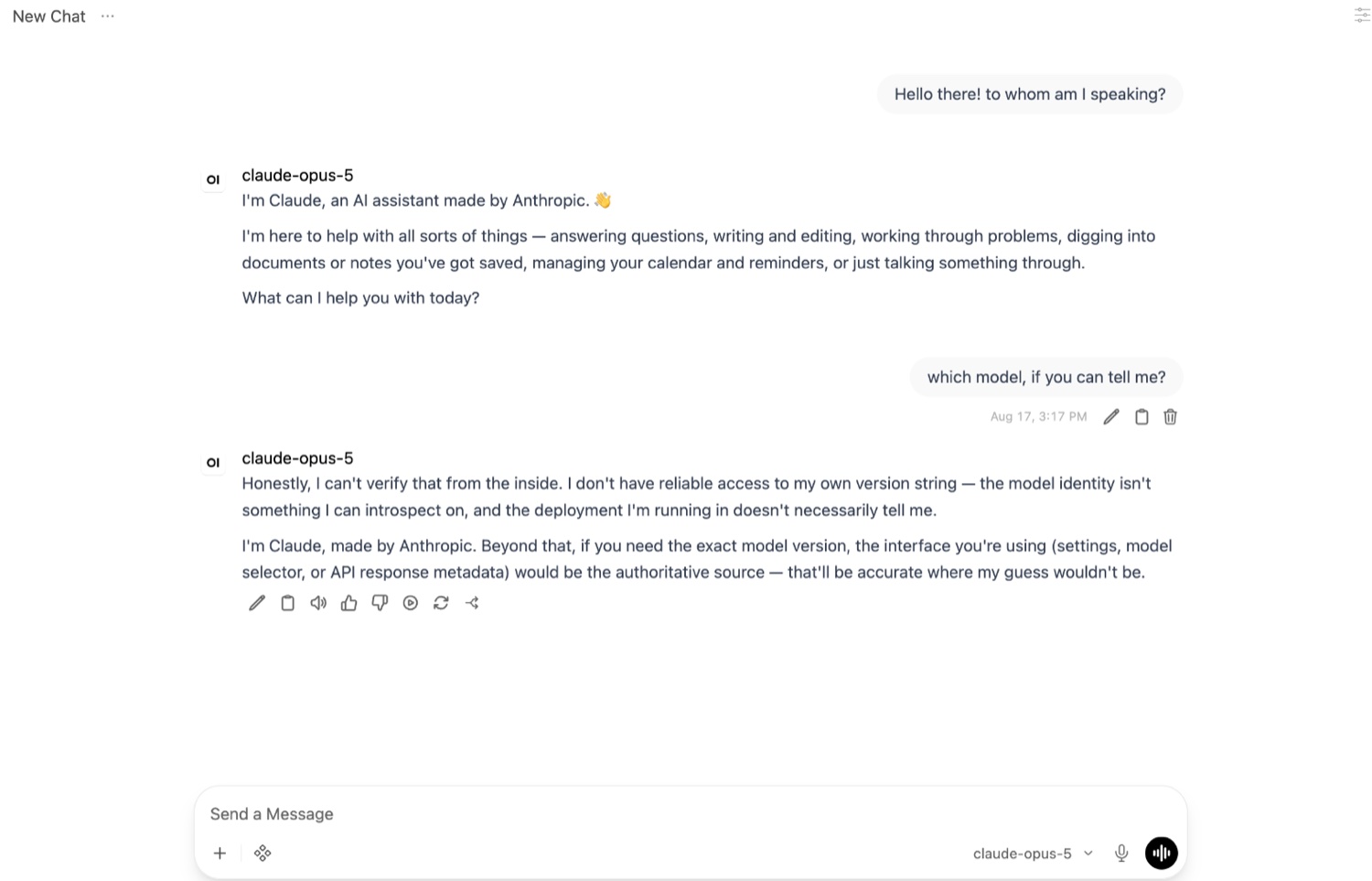

11 Final Success Test

Select claude-opus-5 and send a normal message.

12 Harden the Local Setup

Get it working first, then secure it. Do not run a shared or network-exposed instance with a trivial key.

A. Set a real LiteLLM master key

LiteLLM documents LITELLM_MASTER_KEY as the proxy admin credential. It must begin with sk-.

# Generate a long random LiteLLM admin key.
export LITELLM_MASTER_KEY="sk-$(openssl rand -hex 32)"

# Save it somewhere secure before continuing.
printf '%s\n' "$LITELLM_MASTER_KEY"

docker rm -f litellm

docker run -d \
  --name litellm \
  --restart unless-stopped \
  -p 127.0.0.1:4000:4000 \
  -v "$HOME/litellm-vertex/config.yaml:/app/config.yaml:ro" \
  -v "$HOME/.config/gcloud/application_default_credentials.json:/app/adc.json:ro" \
  -e GOOGLE_APPLICATION_CREDENTIALS="/app/adc.json" \
  -e LITELLM_MASTER_KEY="$LITELLM_MASTER_KEY" \
  ghcr.io/berriai/litellm:main-latest \
  --config /app/config.yaml --port 4000

After restarting, update the Open WebUI connection to use the generated value instead of sk-1234.

B. Keep the services bound to localhost

This guide deliberately uses:

-p 127.0.0.1:4000:4000
-p 127.0.0.1:3000:8080

That is appropriate for a single-user workstation. Do not change these to 0.0.0.0 casually — doing so publishes an unauthenticated model gateway to every network you join.

C. Treat ADC as a user credential

The file at ~/.config/gcloud/application_default_credentials.json should not be copied into documentation, committed to Git, or handed to other users. The container merely reads it.

D. Production is different

13 Troubleshooting: Match the Symptom Exactly

Minimum diagnostic bundle

If you are asking someone for help, collect these outputs first:

gcloud auth list
gcloud config get-value project

gcloud services list --enabled \
  --project=<PROJECT_ID> \
  --filter="name:aiplatform.googleapis.com"

docker ps -a
docker logs litellm --tail 150
docker logs open-webui --tail 150

curl http://localhost:4000/v1/models

Do not paste the contents of your ADC JSON file.

Confirm which credential file LiteLLM is using

docker exec litellm sh -lc 'echo "$GOOGLE_APPLICATION_CREDENTIALS"'
docker exec litellm ls -l /app/adc.json

14 Stop, Restart, and Remove the Stack

Both containers use --restart unless-stopped, so they come back when Docker Desktop starts. To stop them for the day and bring them back later:

docker stop litellm open-webui
docker start litellm open-webui

Clean restart after a config change

LiteLLM reads config.yaml at startup, so editing it requires replacing the container:

docker rm -f litellm
docker run -d \
  --name litellm \
  --restart unless-stopped \
  -p 127.0.0.1:4000:4000 \
  -v "$HOME/litellm-vertex/config.yaml:/app/config.yaml:ro" \
  -v "$HOME/.config/gcloud/application_default_credentials.json:/app/adc.json:ro" \
  -e GOOGLE_APPLICATION_CREDENTIALS="/app/adc.json" \
  ghcr.io/berriai/litellm:main-latest \
  --config /app/config.yaml --port 4000

Open WebUI can be replaced the same way. Its named volume preserves accounts, chats, and connection settings across container replacement:

docker rm -f open-webui
docker run -d \
  --name open-webui \
  --restart unless-stopped \
  -p 127.0.0.1:3000:8080 \
  -v open-webui:/app/backend/data \
  ghcr.io/open-webui/open-webui:main

Remove everything

docker rm -f litellm open-webui
docker volume rm open-webui
rm -rf "$HOME/litellm-vertex"

To revoke the credential itself, which is separate from Docker entirely:

gcloud auth application-default revoke

15 One-Screen Quick Checklist

• Correct Google Cloud project selected.
• Billing available.
• Agent Platform API enabled.
• Claude works directly in Agent Studio.
• ADC configured, and application_default_credentials.json exists.
• Docker Desktop running.
• ~/litellm-vertex/config.yaml uses your project ID and vertex_location: "global".
• LiteLLM logs show Application startup complete.
• curl localhost:4000/v1/models lists your models.
• A direct /v1/chat/completions call succeeds.
• Open WebUI running at localhost:3000.
• The connection is http://host.docker.internal:4000/v1, not port 4001.
• The Claude model appears in the selector and returns a response.
• The test key is replaced with a real LiteLLM master key before wider use.

16 Appendix: Evidence From the Working Session

The following is included so you can compare your own output against a real setup, mistakes and recovery included. Project IDs, account names, and hostnames have been replaced with placeholders.

$ gcloud config set project <PROJECT_ID>
Reauthentication required.
ERROR: (gcloud.config.set) Please run:
  $ gcloud auth login
to complete reauthentication.

$ gcloud auth login
...
You are now logged in as [<YOUR_ACCOUNT>].
Your current project is [<PROJECT_ID>].

$ gcloud iam service-accounts create litellm-vertex-sa \
  --description="Service account for LiteLLM and Open WebUI Vertex AI access" \
  --display-name="LiteLLM Vertex SA"
Created service account [litellm-vertex-sa].
Service account email: <SA_NAME>@<PROJECT_ID>.iam.gserviceaccount.com

# Mistake: this line pasted someone else's project ID.
$ gcloud projects add-iam-policy-binding <SOMEONE_ELSES_PROJECT> \
  --member="serviceAccount:<SA_NAME>@<SOMEONE_ELSES_PROJECT>.iam.gserviceaccount.com" \
  --role="roles/aiplatform.user"
ERROR: (gcloud.projects.add-iam-policy-binding) [<YOUR_ACCOUNT>] does not have
permission to access projects instance [<SOMEONE_ELSES_PROJECT>:getIamPolicy] ...

$ gcloud projects add-iam-policy-binding <PROJECT_ID> \
  --member="serviceAccount:<SA_NAME>@<PROJECT_ID>.iam.gserviceaccount.com" \
  --role="roles/aiplatform.user"
Updated IAM policy for project [<PROJECT_ID>].
...
role: roles/aiplatform.user

$ gcloud iam service-accounts keys create gcp-key.json \
  --iam-account=<SA_NAME>@<PROJECT_ID>.iam.gserviceaccount.com
created key [REDACTED_KEY_ID] of type [json] as [gcp-key.json]

$ docker run -d --name litellm -p 4000:4000 \
  -v "$(pwd)/config.yaml:/app/config.yaml" \
  -v "$(pwd)/gcp-key.json:/app/gcp-key.json" \
  -e GOOGLE_APPLICATION_CREDENTIALS="/app/gcp-key.json" \
  ghcr.io/berriai/litellm:main-latest --config /app/config.yaml --port 4000
failed to connect to the docker API at unix:///.../docker.sock;
check if the path is correct and if the daemon is running ...

# Docker Desktop was started. LiteLLM then launched, but model calls failed:
Publisher model `projects/<PROJECT_ID>/locations/global/publishers/anthropic/models/claude-opus-5`
was not found or your project does not have access to it.

$ gcloud services list --enabled \
  --project=<PROJECT_ID> \
  --filter="name:aiplatform.googleapis.com"
NAME                       TITLE
aiplatform.googleapis.com  Agent Platform API

$ bash <(curl -sSL https://storage.googleapis.com/cloud-samples-data/adc/setup_adc.sh)
...
Credentials saved to file: [~/.config/gcloud/application_default_credentials.json]
Quota project "<PROJECT_ID>" was added to ADC ...
SUCCESS! Your Model API access is fully working.

# The same config, now running on ADC instead of the service-account key.
$ docker run -d --name litellm -p 4000:4000 \
  -v "$HOME/litellm-vertex/config.yaml:/app/config.yaml" \
  -v "$HOME/.config/gcloud/application_default_credentials.json:/app/adc.json:ro" \
  -e GOOGLE_APPLICATION_CREDENTIALS="/app/adc.json" \
  ghcr.io/berriai/litellm:main-latest --config /app/config.yaml --port 4000
960fdc780e3e ...

$ curl http://localhost:4000/v1/chat/completions ...
curl: (56) Recv failure: Connection reset by peer

$ docker logs litellm
INFO:     Started server process [1]
INFO:     Waiting for application startup.
...
INFO:     Application startup complete.
INFO:     Uvicorn running on http://0.0.0.0:4000

$ curl http://localhost:4000/v1/models
{"data":[{"id":"claude-opus-5","object":"model", ... }],"object":"list"}

$ curl http://localhost:4000/v1/chat/completions \
  -H "Content-Type: application/json" \
  -H "Authorization: Bearer sk-1234" \
  -d '{"model":"claude-opus-5",
       "messages":[{"role":"user","content":"Say hello in one sentence."}]}'

{"id":"chatcmpl-833456da-8397-4cd0-9801-8088cae54664",
 "model":"claude-opus-5",
 "object":"chat.completion",
 "choices":[{"finish_reason":"stop","message":{
   "content":"Hello there — it's a pleasure to meet you, and I hope your day is going well!",
   "role":"assistant"
 }}],
 "usage":{"completion_tokens":29,"prompt_tokens":16,"total_tokens":45}}

LiteLLM Proxy:ERROR: common_request_processing.py:1012 -
litellm.NotFoundError: VertexAIException - {
  "error": {
    "code": 404,
    "message": "Publisher model `projects/<PROJECT_ID>/locations/global/publishers/anthropic/models/claude-opus-5` was not found or your project does not have access to it. Ensure you are using a valid model name and that the model is available in the specified region.",
    "status": "NOT_FOUND"
  }
}
. Received Model Group=claude-opus-5
Available Model Group Fallbacks=None

Traceback (most recent call last):
  File ".../litellm/llms/anthropic/chat/handler.py", line 274, in acompletion_function
    response: Final = await async_handler.post( ... )
  File ".../litellm/llms/custom_httpx/http_handler.py", line 487, in _raise_masked_async_error
    raise MaskedHTTPStatusError(e, message=_text, text=_text) from None
litellm.llms.custom_httpx.http_handler.MaskedHTTPStatusError: Client error '404 Not Found' for url
'https://aiplatform.googleapis.com/v1/projects/<PROJECT_ID>/locations/global/publishers/anthropic/models/claude-opus-5:rawPredict'

      [ ~150 lines of internal litellm router retry and fallback frames omitted ]

  File ".../litellm/litellm_core_utils/exception_mapping_utils.py", line 1238, in _map_vertex_exception
    raise NotFoundError( ... )
litellm.exceptions.NotFoundError: litellm.NotFoundError: VertexAIException - 404 NOT_FOUND
INFO:     192.168.65.1:57915 - "POST /v1/chat/completions HTTP/1.1" 404 Not Found

What the 404 phase taught us

The service-account attempt reached Google successfully and Google returned a model 404 NOT_FOUND. The same LiteLLM configuration then succeeded once the container used the user's ADC file. That is a diagnostic observation from this environment, not a universal rule that service accounts cannot call Claude. For a production service, the correct response is to validate the effective partner-model entitlement for the service identity — not to copy a user's ADC file into the deployment.

17 Official References

The primary documentation used to validate the moving parts of this guide.

• Google Cloud: Configure Application Default Credentials
• Google Cloud: Agent Platform authentication
• Google Cloud: Claude Opus 5 model card
• Google Cloud: Request predictions with Claude models
• LiteLLM: Proxy configuration
• LiteLLM: Production best practices
• Open WebUI: OpenAI-compatible provider setup
• Open WebUI: FAQ and Docker networking

Model catalogues, product names, interface layouts, and authentication guidance all change. This guide was assembled and validated on August 17, 2026 against a single macOS workstation and one Google Cloud project.
