Homework 2: Plotting Example Data

In this step, you will use a Turtle object to plot a small data set.

The resulting plot will be added to a rectangular patch by using your rect function from the previous step.

Implementation Steps

Setup and Reading Input Data

You’ll be writing the code for this part, the function plotExampleData().

Constant Definitions

Your function should start by declaring the same constants you used in the previous part, and adding this line to the stitch-size constants:

    constexpr int PLOT_STITCH_SIZE = 1;  // finer stitches for the plot itself

as well as the following new constants section:

    // Data file parameters:
    constexpr int NUM_DATA_POINTS = 59;  // file has *exactly* this many points
    const string input_name = "/cs70/data/stats/us_population_growth.txt";
    const string output_name = "example_data.dst";

Declaring the Array

Create a statically sized array of floats that is big enough to hold NUM_DATA_POINTS values.

Reading Values Into the Array

We want to read NUM_DATA_POINTS values from the file INPUT_NAME into your array of floats.

The data set you will plot in this part of the assignment is a text file with one floating-point value per line. The values represent 59 years of US population growth.

To read values from the text file, you will need to create an ifstream (short for input file stream) object. You can use the parameterized constructor for the ifstream class that takes one argument: a string representing the name of the file to read from. The syntax is

ifstream inputFile{"mytextfile.txt"};

Of course, you should replace inputFile and "mytextfile.txt" with the variable name you prefer and the name of the file you want to read, respectively. Once you have your ifstream object, the >> operator will read one value at a time from the file. For example, if we have a float called myFloat, the following line would read the first float from the file and store it in myFloat:

inputFile >> myFloat;

Once you have read all of the values from the file, you should call the close member function of your ifstream object to let the system know that you are done reading from the file.

Error Checking

When you read the file, you should make sure that the file was opened successfully and that each read operation succeeded. If any of these operations fail, you should print an error message to cerr and return from the function without doing anything else. Useful member functions for this purpose in the ifstream class include:

• inputFile.eof() — returns true if the end of the file has been reached, false otherwise
• inputFile.fail() — returns true if the last operation failed, false otherwise
• inputFile.good() — the opposite of fail(); returns true if the last operation succeeded, false otherwise

Generally speaking, end-of-file is only detected after a read operation fails because it tried to read past the end of the file. So you should check for both eof() and fail() after each read operation. You could just check for fail(), but checking for eof() first allows you to print a more specific error message if the file is too short.

You should also check fail() after opening the file to make sure it opened successfully (there is also a function is_open(), but using fail() should be sufficient in this case).

Normalizing by the Largest Value

When you plot the data, you’ll want it to be appropriately scaled when visualized in your patch, which requires you to normalize the data by its largest value. You’ll also want to exclude the rectangular border for the patch from the available visualization space.

Find the Largest Value

Implement a loop-based approach to finding the largest float in your array.

Generate Normalized Data

Since the height of your patch is fixed, we need to ensure that all of the data points we plot will fit on the patch. To do that, we will normalize all of the values so that they fall between 0 and the largest available y-axis value.

1. First, calculate the availableHeight on the patch—the PATCH_HEIGHT minus the size of the edge stitching, EDGE_STEP.
2. Create a new statically sized array of floats to store the normalized data values.
3. Scale each float in your array of data values so that it falls between 0 and availableHeight.

Plotting the Points

Now you’ll use the Turtle to draw a border for the plot and plot the data.

Draw the Border

Create a Turtle object and draw a satin-stitched rectangle that is PATCH_WIDTH wide, PATCH_HEIGHT tall, and has a step size of EDGE_STEP. Be sure to use your rect function!

Plot the Line

Generate a line plot with the values from the normalized array of floats:

1. First, calculate how much width is available for each data point, and store that number in a variable. You will use that value to calculate the x position for each point in your plot. The total available width for all the points is PATCH_WIDTH - EDGE_STEP.
2. Get ready to plot: Lift the pen (so you can jump to the first plot point) and set the Turtle’s step size to PLOT_STITCH_SIZE; satin stitch should still be on.
3. Loop through the values in your normalized array of floats. For each, have the turtle gotopoint(x, y) where x is calculated from the available width for each point and y comes from the array of scaled floats. You’ll likely want the points to start at a slight offset to the right so as not to overlap the rectangle border. It may take some trial and error to get the line plot roughly centered inside the rectangle.

Note: Be sure that after the Turtle goes to the location of the first data point, the pen is down. Otherwise, you won’t see any of the points you plot! Also, these directions assume the Turtle’s position at the end of rect() is the bottom left corner of the rectangle.

Annotate the Plot

We can add labels to interesting points in our plots. For this step, label the peak in the middle of the plot with the year it corresponds to, 1992, by using gotopoint() and choosing a point to write the text. Aim to have the beginning of the first 9 of 1992 aligned vertically with the middle peak; you'll have to do some experimentation.

You can view our example patch below in the next step.

Save the Plot to a File

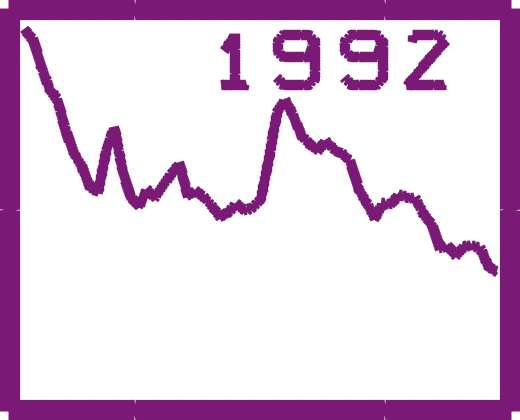

Save the resulting embroidery pattern to example_data.dst. Then convert the pattern to example_data.svg using embconv and confirm that it looks right. When you are done, your patch should look something like

Helpful Hints

Want to Look at the Provided Data?

The data files are located on the server in /cs70/data/stats/. If you want to take a look at them to make sure you are correctly reading data, you can use the cat command (short for ‘concatenate’). This command concatenates the contents of all the files specified in its arguments and dumps the result to the terminal. So, on the server command line, you can try cat /cs70/data/stats/us_population_growth.txt

Other Useful Unix Commands

Some other useful Unix commands for looking at files on the command line are:

• head — view the first few lines of a file
• tail — view the last few lines of a file
• more — view a file pausing at each screenful
• less — like more, but with more features.

Feel free to try them out to see what they do; for example, run

head /cs70/data/stats/us_population_growth.txt
tail /cs70/data/stats/us_population_growth.txt
more /cs70/data/stats/us_population_growth.txt

Another very useful command is man, which displays a “manual page” for the command you specify. So, for example, man man would show you the manpage for man itself, and man more shows you the manpage for more. Manpages show you what options and arguments a command takes, what they do, and sometimes include examples of how to use the command.
