Parsing is the process of taking linear data (files) and producing a
(more useful) structured representation.
For example, compilers like javac or
clang++ start by parsing the program text to be compiled,
and interpreters like python or DrRacket start
by parsing the program to run.
And most large systems read configuration files, data files, etc.
Almost always these files are read and translated into trees, maps, or
arrays, because these representations are more useful and more efficient
than directly working with the linear sequence of characters comprising
the file on disk.
Example
If you are given a string containing an arithmetic expression like
"(4 + 2) * 7", it’s not a straightforward task to write
code to calculate the result. > we’d have to find the numbers and do
appropriate arithmetic in the correct order. Worse, although the normal
order of operations tells us to look for multiplications first and do
them before additions, in this case the addition has to happen first,
because the plus sign is inside a pair of parentheses. But not all plus
signs in parentheses go first, because "(4 + 2 * 7)" is

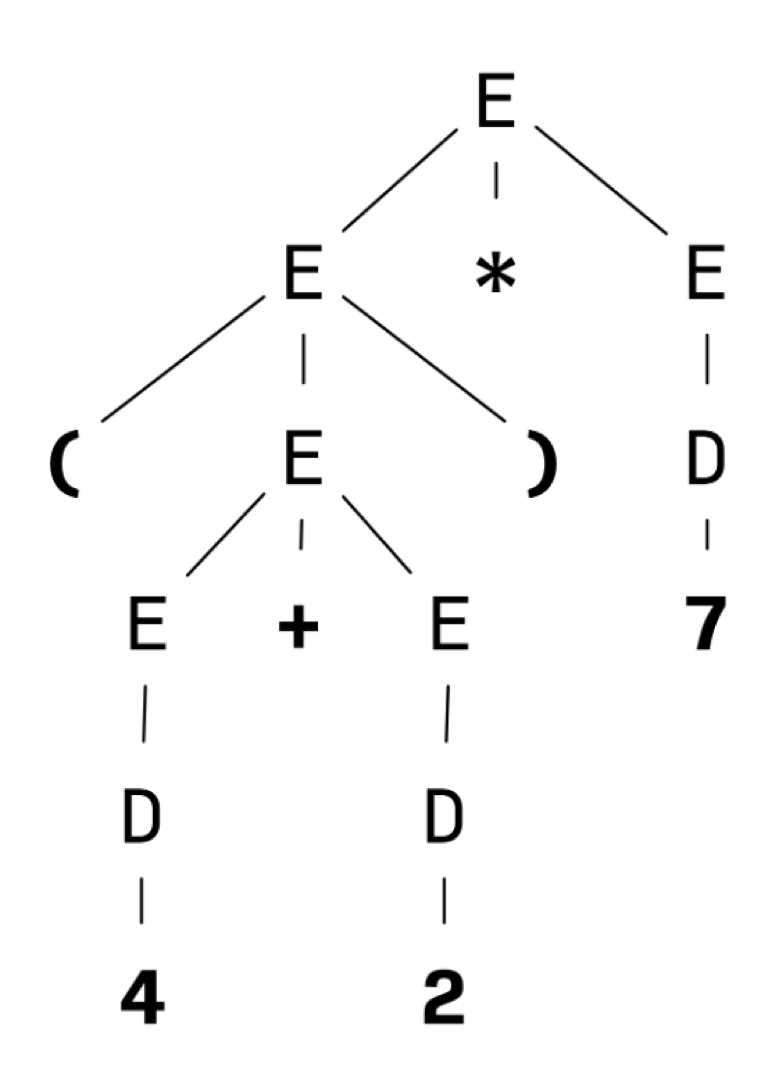

supposed to start with a multiplication. > However, if we look at a
parse tree for this expression under the grammar >\[
>\begin{array}{lcl}
> E &\to& D\ |\ E + E\ |\ E - E\ |\ E * E\ |\ E /
E\ |\ (E)\\
> D &\to& 0\ |\ 1\ |\ 2\ |\ 3\ |\ 4\ |\ 5\ |\ 6\
|\ 7\ |\ 8\ |\ 9
> \end{array}
>\] > > it’s relatively easy to imagine how
to do the calculation given such a tree. We just implement a recursive
function that looks at the root of the parse tree to see what kind of
operation to perform (it’s a multiplication), recursively evaluates the
left and right subexpressions/subtrees to get their values (6 and 7,
respectively), and perform the operation (producing 42).
Example
The C expression >
>c >x > 0 ? y > 0 ? x + y : x - y : y > 0 ? -x + y : -x - y >
> is very hard to interpret for humans, and it is not that much
easier for the computer to interpret it as a linear sequence of

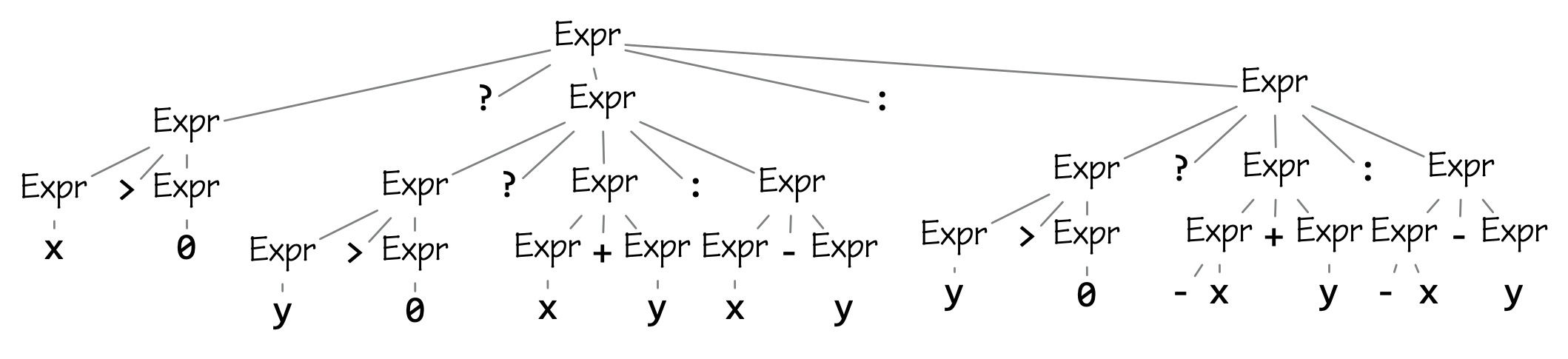

bytes/characters. But if we look at a hypothetical parse tree for this
expression, the structure is much
clearer; this is a “ternary expression” (… ? …
: …) that tests whether x>0 and the returns
one of two other ternary expressions; each of the latter ternary
expressions test whether y>0 and either do an addition
or a subtraction.
Ambiguous grammars
We argued above that the meaning of a string can be
clarified by looking at the parse tree. But if one string has two or
more possible parse trees, we may have trouble deciding the intended
meaning.
Definition
A grammar is ambiguous if some string in the language of the
grammar has two possible parse trees.
Example
If we wanted to focus on expressions involving only subtractions of
digits, we could use the following simplified grammar: >\[
>\begin{array}{lcl}
> E &\to& D\ |\ E - E\\
> D &\to& 0\ |\ 1\ |\ 2\ |\ 3\ |\ 4\ |\ 5\ |\ 6\
|\ 7\ |\ 8\ |\ 9
> \end{array}
>\] >The language of this grammar includes 3
and 6-2 and 3-2-1 and 8-5-6-7 and
any other sequence of digits separated by subtaction sign. > Then the

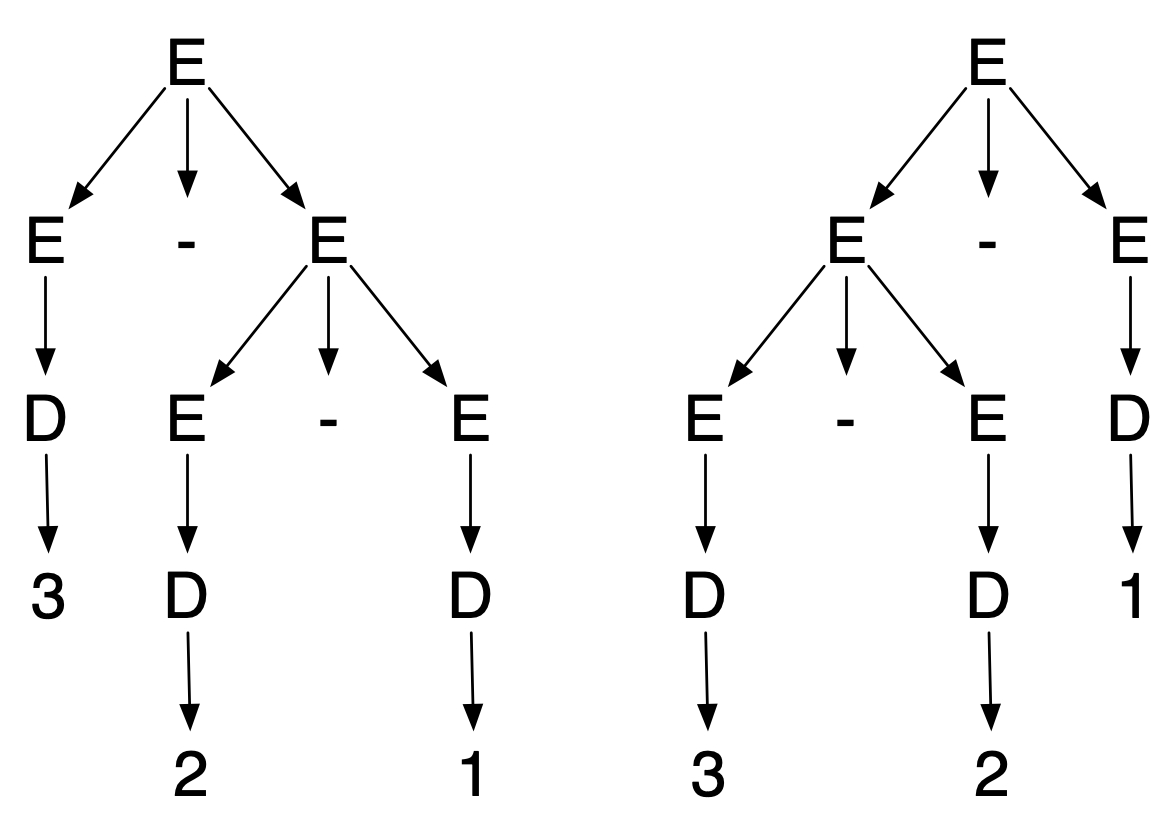

string 3-2-1 has two parse trees: > The first parse tree
interprets the string as the difference of 3 and (2-1), while the second
parse tree interprets the string as the difference of (3-2) and 1. This
ambiguity is a problem if we’re evaluating expressions starting with the
parse tree, because the first interpretation yields an answer of 2,
while the second interpretation has the answer 0. ## Encoding
Associativity
By careful design of our grammar, we can ensure that our parse trees
treat binary operations as left-associative (grouping to the left) or
right-associative (grouping to the right) as desired.
Example
Consider this grammar: >\[
>\begin{array}{lcl}
>E &\to& D\ |\ E - D\\
>D &\to& 0\ |\ 1\ |\ 2\ |\ 3\ |\ 4\ |\ 5\ |\ 6\ |\ 7\ |\ 8\
|\ 9
>\end{array}
>\] Instead of saying that a subtraction can involve two
arbitrary expressions, we now say that all subtractions involve an
potentially complicated expression and a single digit. > The language
is the same as the language of the ambiguous grammar in the previous
example; it still generates all strings of one or more digits separated
by subtraction signs. > However, now the language is not

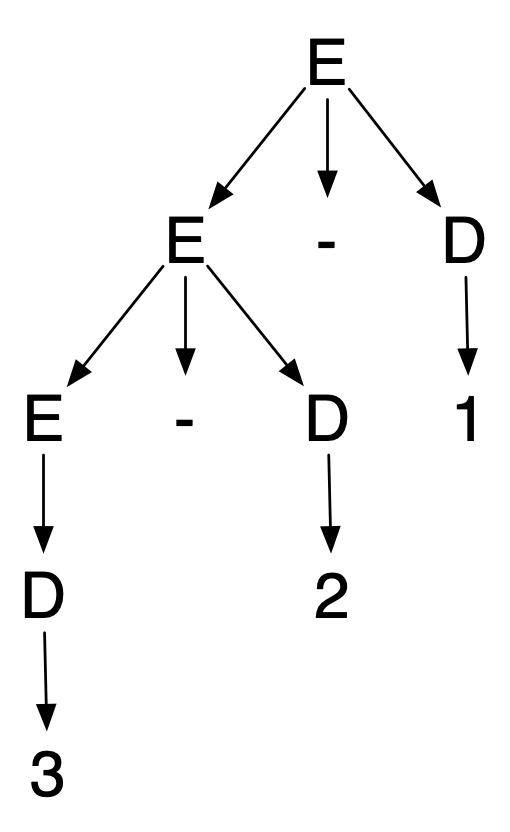

ambiguous. For example, 3-2-1 has only one possible parse
tree: > By changing
the rule for subtractions from \(E \to
E{-}E\) to \(E \to E{-}D\), we
have forced the parse trees to treat subtractions in a “left
associative” manner > For example, 3-2-1 and
8-5-3-7 groups subtractions to the left (corresponding to
calculations producting 0 and -7 respectively).
Example
Interpreting subtraction as being left-associative (grouping a series
of subtractions to the left) is the usual mathematical practice. But if
we wanted subtraction to be right-associative (as it was in the
programming language APL), we could say a subtraction involves a digit
on the left and an arbitrarily complicated expression on the right:
>\[
>\begin{array}{lcl}
>E &\to& D\ |\ D - E\\
>D &\to& 0\ |\ 1\ |\ 2\ |\ 3\ |\ 4\ |\ 5\ |\ 6\ |\ 7\ |\ 8\
|\ 9\\
>\end{array}

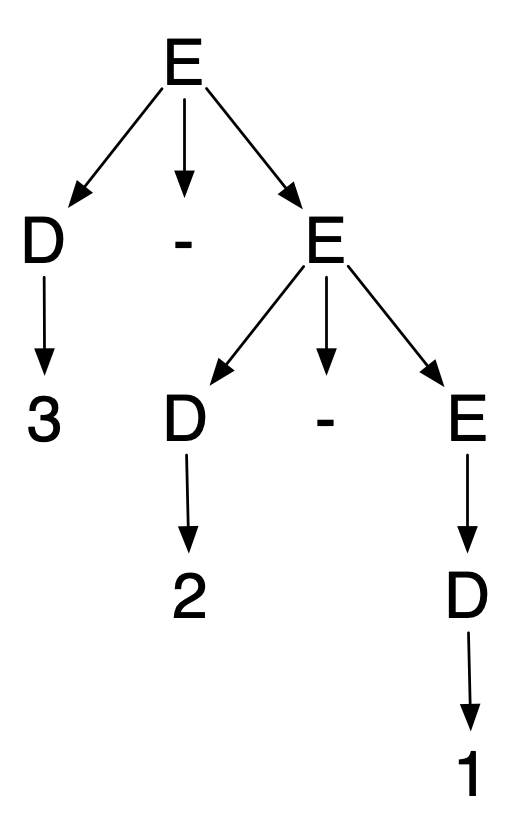

>\] > This is another umambiguous grammar. It still
generates the same strings, but now the unique parse tree for
3-2-1 is:
> By changing the rule for subtractions to \(E \to D - E\), we have forced the parse
trees that treat subtractions in a “right associative” manner. > For
example, 3-2-1 and 8-5-3-7 groups subtractions
to the right (corresponding to calculations producting 2 and -1
respectively).
Encoding Precedence
In addition to ensuring that the only possible parse trees for an
expression have the right associativity, we can also ensure that parse
trees respect the relative precedence of different binary operators.
Example
We can apply the lessons of the previous section to get an
unambiguous (left-associative) grammar for all arithmetic expressions
involving digits: >\[
>\begin{array}{lcl}
>E &\to& D\ |\ E + D\ |\ E - D\ |\ E * D\ |\ E / D\ |\ (E)\\
>D &\to& 0\ |\ 1\ |\ 2\ |\ 3\ |\ 4\ |\ 5\ |\ 6\ |\ 7\ |\ 8\
|\ 9\\
>\end{array}
>\] However, just because the grammar is unambiguous doesn’t
mean it gives us the parse trees we want. For example,

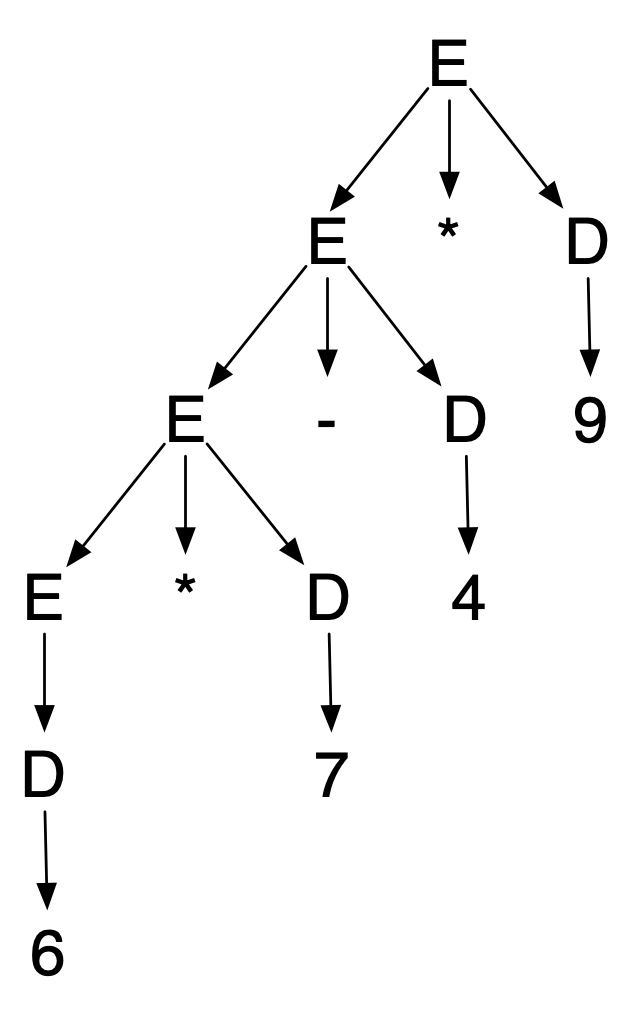

6*7-4*9 has the unique parse tree > which corresponds to
the left-associative calcuation (((67)-4)9) = 342. But in
mathematics and most programming languages, multiplication and division
have higher precedence than addition and subtraction; to get the
“expected” interpretation, we need subtraction to be at the root of the
parse tree, and have two subtrees doing multiplications, which would
evaluate to 42-36 = 6.
Example
We can encode precedence by splitting up the expressions into
different “levels,” according to precedence. >\[
>\begin{array}{lcl}
>E &\to& T\ |\ E + T\ |\ E - T\\
>T &\to& F\ |\ T * F\ |\ T / F\\
>F &\to& D\ |\ (E)\\
>D &\to& 0\ |\ 1\ |\ 2\ |\ 3\ |\ 4\ |\ 5\ |\ 6\ |\ 7\ |\ 8\
|\ 9\\
>\end{array}
>\] The expressions produced by \(E\), \(T\), and \(F\) here are often referred to as
expressions, terms, and factors. > In this
grammar, factors (strings produced by \(F\) in the grammar) are the simplest
expressions, digits or explicitly parenthesized expressions. For these
atomic expressions, it’s obvious where they start and end. > The next
level up is terms (strings produced by \(T\) in the grammar). A term is a
(left-associative) sequence of products and quotients of (atomic)
factors, e.g., 3 or 3*8 or 3*8/6
or 3*8/6/2. > Finally, expressions (strings produced by
\(E\)) are defined to be sums and
differences of terms, i.e., sums and differences of products and
quotients of atomic expressions. > As a consequence, the only

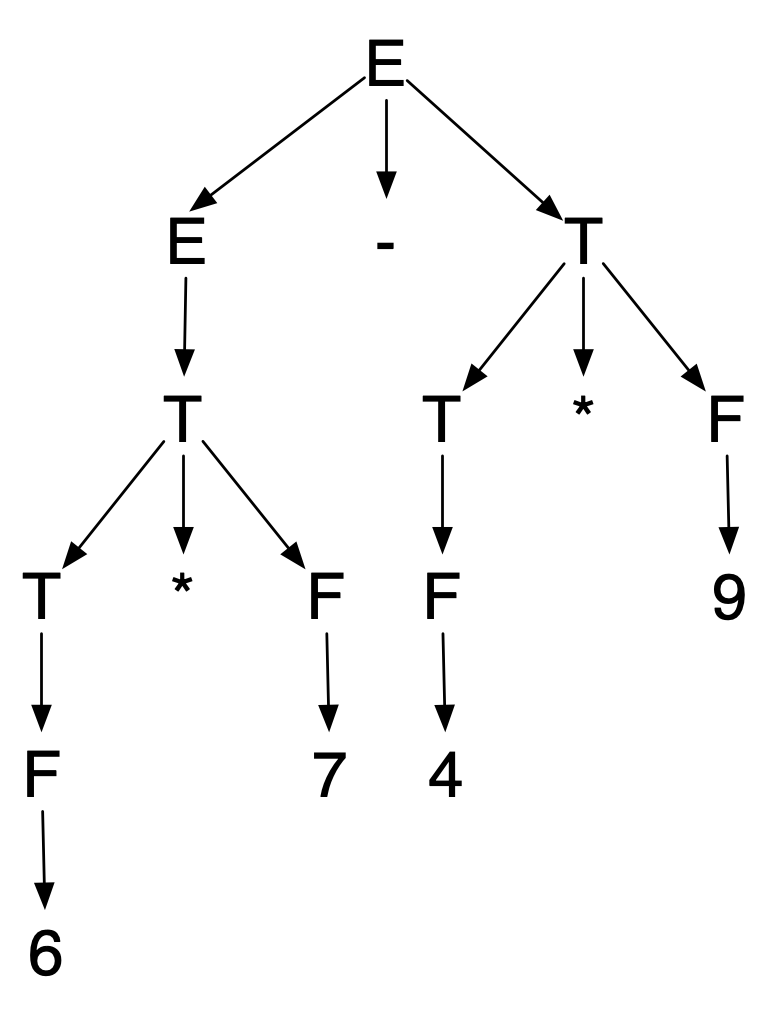

possible interpretation of 6*7-4*9 is as an expression that
is the difference of two product terms, yielding the parse tree which has the general
shape (and grouping of digits) corresponding to the intended
interpretation > The general rule is that if you break expressions up
into levels, the closer you are to the base atomic level (factors in the
above grammar) the higher the precedence of the operator. Two operators
at the same level (e.g., multiplication and division above) have equal
precedence. > Real programming languages like C, C++, and Java have
many more binary operators than here (+=,
<<, &&, etc.) and if you look at
the official grammar for expressions in those languages, you will find
expressions have been broken up into well over a dozen levels, encoding
the relative precedence and associativity of all these operators.
