Week 2 - Feb 10, 2003

This week, we furthered the design of our robot and explored some different options for finding its place in the world. The wheel base is wider and more compact, with geared wheels. For this version, we are using a bump sensor to detect the presence of walls, and this seems to work well. The "arms" connected to the bump sensor can impact a wall head-on or from the sides. We are planning to use a light sensor and a fan to detect and extinguish a candle, but the current iteration of our code focuses on navigating.

We found that the front side caster wheel caused too many problems to work out as a feasible design. The wheel caused the robot to pull in unexpected directions. We decided to try a back side caster wheel.

Finding our chassis design to weak to withstand crashing into walls, and not robust enough for our purpose, we started fresh with a new design. We kept the single front bump sensor design(for now) and added an 8 to 1 gear ratio on each of the two rear drive motors. We found that this gave the flamebot much more control over small motion and ended the necessity for at least 25 power to the motors to overcome static friction. The castor wheel in the rear was redesigned as a modified version of a LEGO Mindstorm castor wheel design.

We are still having trouble getting FlameBot to travel straight when both motors are powered equally (watch for this pull problem near the end of the second movie clip for week 2). We embark on coding for navigation this week and finalizing the extinguisher design.

Note to Selves: Avoid lighting matches in the robotics lab without informing other teams of your actions, as they may get quite a scare and even think that their wires are overheating and their motors burning.

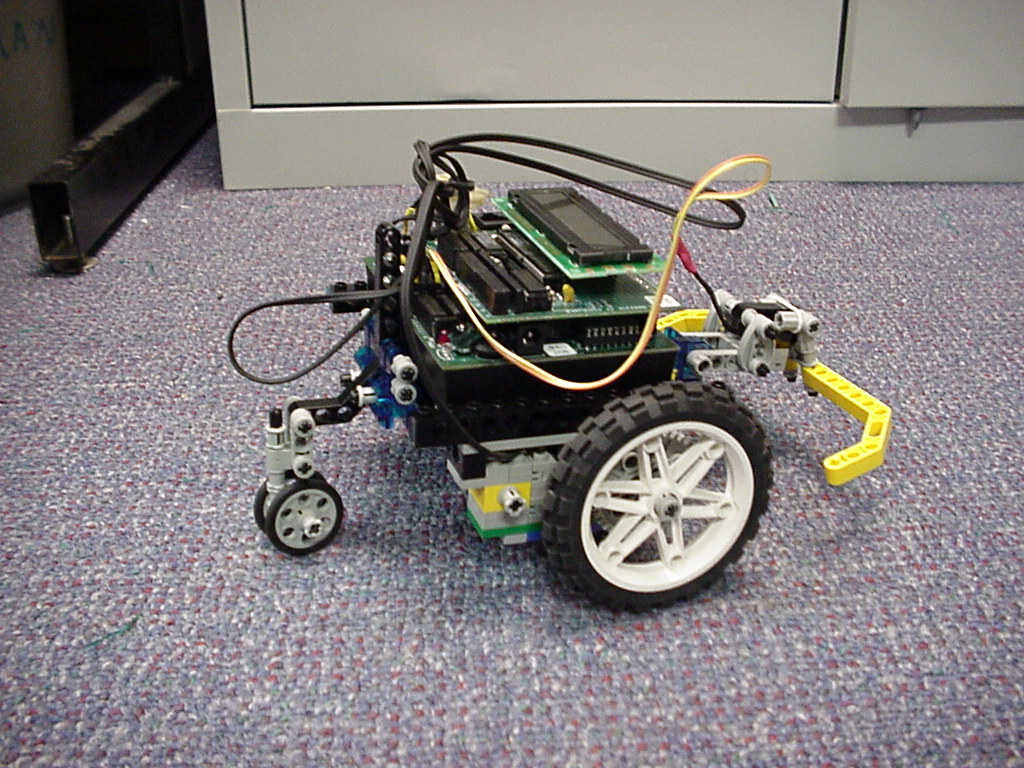

More compact frame makes for less breakage. It moves with the bump sensor (yellow "arms") toward the front.

A video of the new design in action.

And another, navigating the corridors with a slightly narrower turning radius.
