C++ Implementation: insert()

Here's our encoding:

class IntTree {
 public: ...
 private:
    // Encoding for a tree node
    struct Node {
        int key_;
        Node* left_  = nullptr;     // if not specified, default to nullptr
        Node* right_ = nullptr;     // if not specified, default to nullptr
    };

    // The tree object owns all the nodes, and has a pointer to the root node.
    Node* root_;
};

insert()

We'll have a public member function that inserts a given key into the structure:

void insert(int k);

How will we implement this operation using our encoding?

Remember, here is our BST-INSERT pseudocode:

BST-INSERT(treenode, x):
    if there isn't a treenode (i.e., this subtree is empty):    // base case
        replace empty subtree with new tree node containing x as its value (and empty subtrees)
    else if x < treenode.value:
        BST-INSERT(treenode.leftSubtree, x)       // recurse on smaller case (left subtree)
    else:                                                                // x >= treenode.value
        BST-INSERT(treenode.rightSubtree, x)     // recurse on smaller case (right subtree)

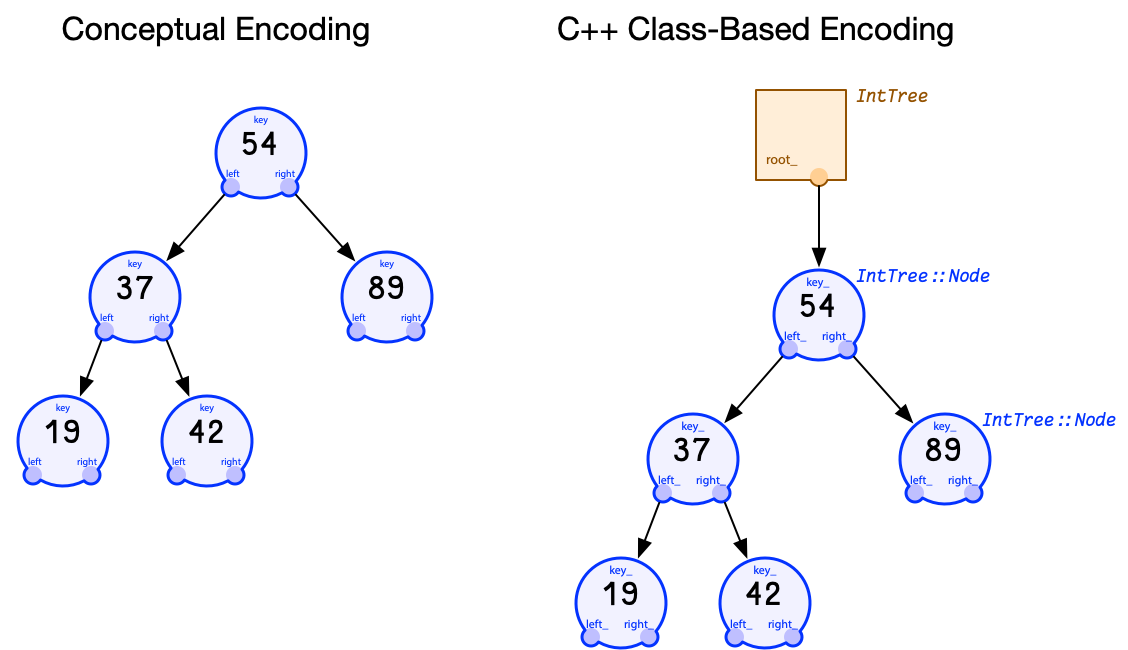

Our BST-INSERT pseudocode was written for our conceptual encoding of the tree data structure, where we were only thinking about nodes. Our C++ encoding is a little different. Let's look back at the diagram we when we introduced the encoding:

In one sentence, the issue is

The interface given by our BST-INSERT pseudocode was written in a language-neutral way, but it was also an interface that was well-suited to recursion. It took a treenode argument, and recursive calls could pass in smaller subtrees for that argument until we hit the base case.

In contrast, in our C++ encoding, our tree's (private) Nodes are wrapped up inside an IntTree class.

Our class needs an insert() function, but that function can't itself be recursive: there's only one IntTree object to work with, and we can't break it into smaller IntTrees we could recurse on. So our insert() member function can't be BST-INSERT as we've defined it.

We will still implement a version of BST-INSERT, but it will be a separate (private) helper function—one that works on Nodes. Its interface will look just like the interface of BST-INSERT, but instead of being called directly by the user, this function will be called by our insert() member function, passing in the root_ of the tree as a starting point.

So, whereas our BST-INSERT pseudocode was a recursive function and was also an appropriate interface for inserting into the tree, in our C++ version, these aspects have to be separate and different—the interface that users call is insert(); insert() hands off the work to a separate private helper function (insertHelper()) whose interface is well suited to recursing over our Nodes, but only the insert() function can see that interface, users can't.

We can declare insert() and insertHelper() in our class definition as follows:

class IntTree {
  public:
    void insert(int k);
    ...

  private:
    struct Node {
      ...
    };
    Node* root_;

    void insertHelper(Node*& tree, int k);
};

For us, a Node* represents a subtree (by pointing to its root node).

In the base case, where the subtree is empty, we need to replace an empty subtree with a new tree consisting of a single node. So we need to change a pointer that was previously nullptr to one that points to our new node.

But we want the original pointer (wherever that is) to be updated. If we passed a Node* and then assigned that pointer to a new value, we'd just be changing a pointer variable in our function and nowhere else. So we need to pass a reference, a Node*&, so we can reassign the pointer to a new node.

Some code will probably help make everything make sense…

void IntTree::insert(int k) {
    if (!exists(k)) { // Don't insert keys already in the tree
        insertHelper(root_, k);
    }
}

void IntTree::insertHelper(Node*& tree, int k) {
    if (tree == nullptr) {
        tree = new Node{k, nullptr, nullptr};
        // ^-- because tree is a reference to a pointer, this will
        //     change the value of the pointer that was passed in!
    }
    else if (k < tree->key_) {
        insertHelper(tree->left_, k);
    }
    else {
        insertHelper(tree->right_, k);
    }
}

Because we pass tree by reference, when we run tree = new Node{k, nullptr, nullptr}, we will actually be changing tree->left_, tree->right_, or root_, depending on where insertHelper was called. If we'd declared tree as just a Node*, that assignment wouldn't have any lasting effect.

Here's a video walking through this code and using our memory model. (For simplicity, we'll leave out that call to exists.)

A Couple of Tips
